Page 16
PRO DQ xc Installation and User’s Manual
4.3.3. Windows PC Connection
Connect the PRO DQ to the RAID Controller with the supplied mini-
SAS cable(s).

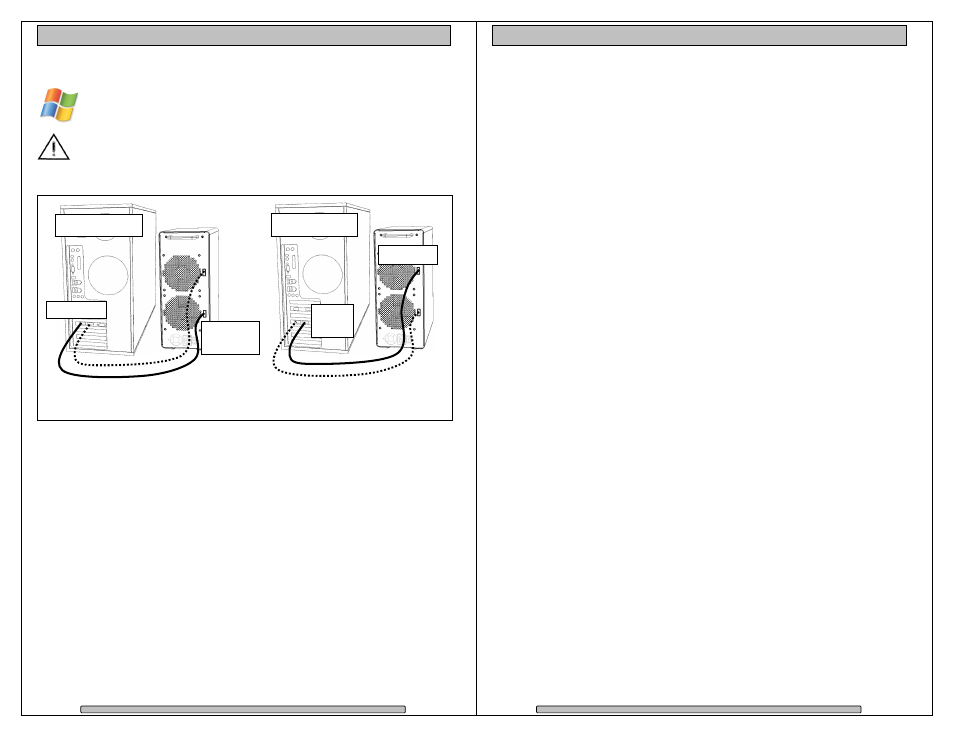

For proper drive numbering assignments, it is important to match up the
ports on the RAID Controller to the ports on the PRO DQ. Carefully
follow the cabling instruction in the diagram below.
A typical Windows PC such as the HP xw workstation
Left Port
Top Port
Right
Port
Bottom
Port
Left side port to
Bottom of PRO DQ
Right side port to
Top of PRO DQ
Windows PC Windows PC
Page 17
PRO DQ xc Installation and User’s Manual
(Page left blank intentionally)
