PRO DQ xc Installation and User’s Manual
3. Overview

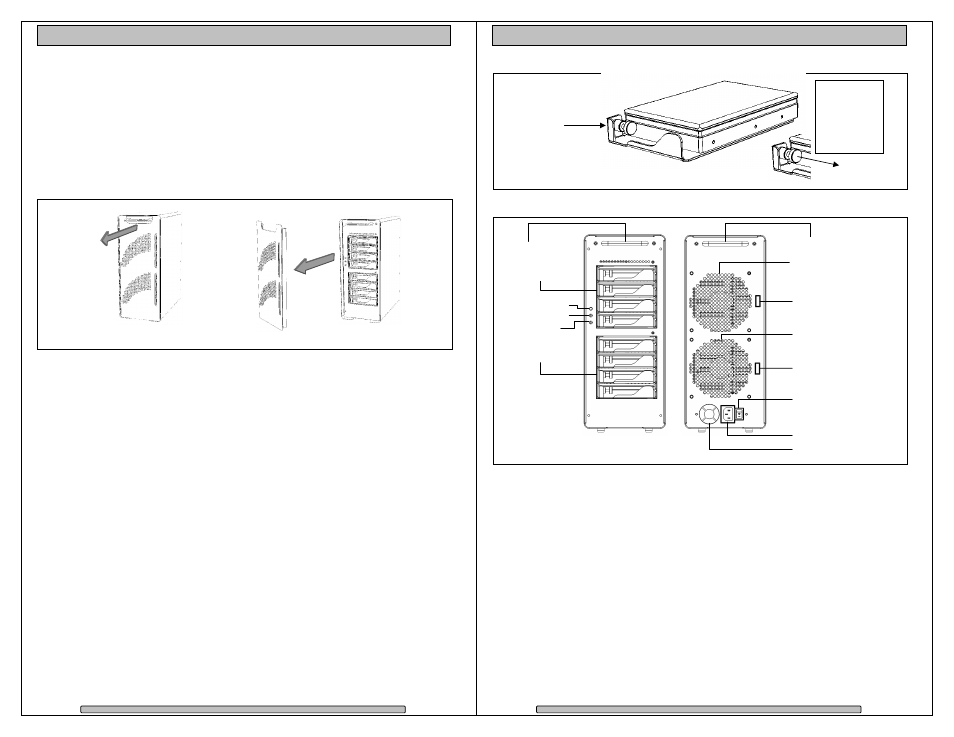

3.1. Removing the Bezel
The front bezel can be easily removed to access the Disk Modules. The bezel is
held on by four snap pins located at each of the four corners.
Use both hands, grab both top and bottom curved openings and pull forward at
the same time to remove the bezel.
3.2. Disk Modules, Indicators, Controls, Connections
The disk enclosure has stand alone self-monitoring features. It monitors
temperature and fan continuously. Should the temperature exceed a safe
operating range or the fan spin below a preset minimum, the alarms will be
triggered. A red indicator light will come on plus an audible alarm will sound.
Audible Alarm can be muted by pressing the green Mute button. The red
indicator remains on until the condition is corrected.
Page 11
PRO DQ xc Installation and User’s Manual
Drive Module
Front view with bezel removed
1
2
3
4
5
6
7
8
Mute Button
Data Cable
Ch01-04
Handle
Data Cable
Ch05-08
Handle
Enclosure
Cooling Fan
Temp Alarm
Fan Alarm
Enclosure
Cooling Fan
Power Switch
Power Plug
Power Supply Fan
Disk Modules
Disk Modules
Lock Pin
Pull right
to unlock
during
insert and
removal.
