Page 14
PRO DQ xc Installation and User’s Manual

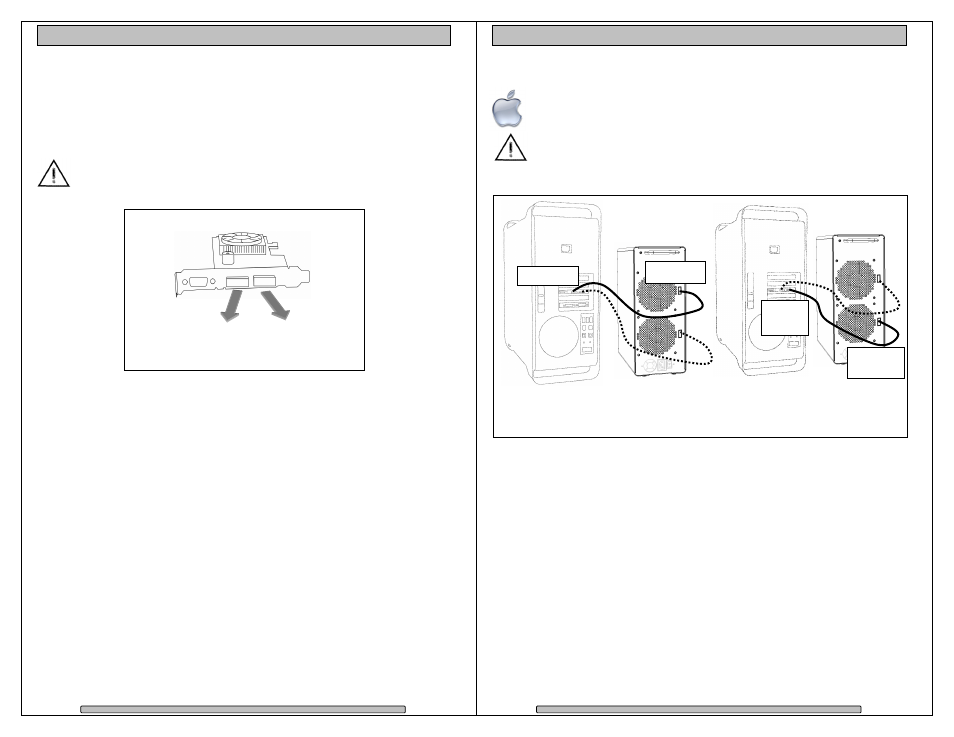

4.3. Making the Connections
4.3.1. RAID Controller Port Assignment
The PRO DQ is supplied with a two port mini-SAS RAID Controller. Each port
supports 4 drives.
For proper drive assignment, it is important to properly match up the
ports used. Please follow the cabling instructions in the following section
carefully.
Drive 1 to 4
(Ch01 – 04)
Drive 5 to 8
(Ch05 – 08)
Page 15
PRO DQ xc Installation and User’s Manual
4.3.2. Mac Connection
Connect the PRO DQ to the RAID Controller with the supplied mini-SAS
cable(s).
For proper drive numbering assignments, it is important to match up the
ports on the RAID Controller to the ports on the PRO DQ. Carefully
follow the cabling instruction in the diagram below.
Mac Pro or Power Mac
Left side port to
Top of PRO DQ
Right side port to
Bottom of PRO DQ
Top Port
Left Port
Right
Port
Bottom
Port
Mac Mac
