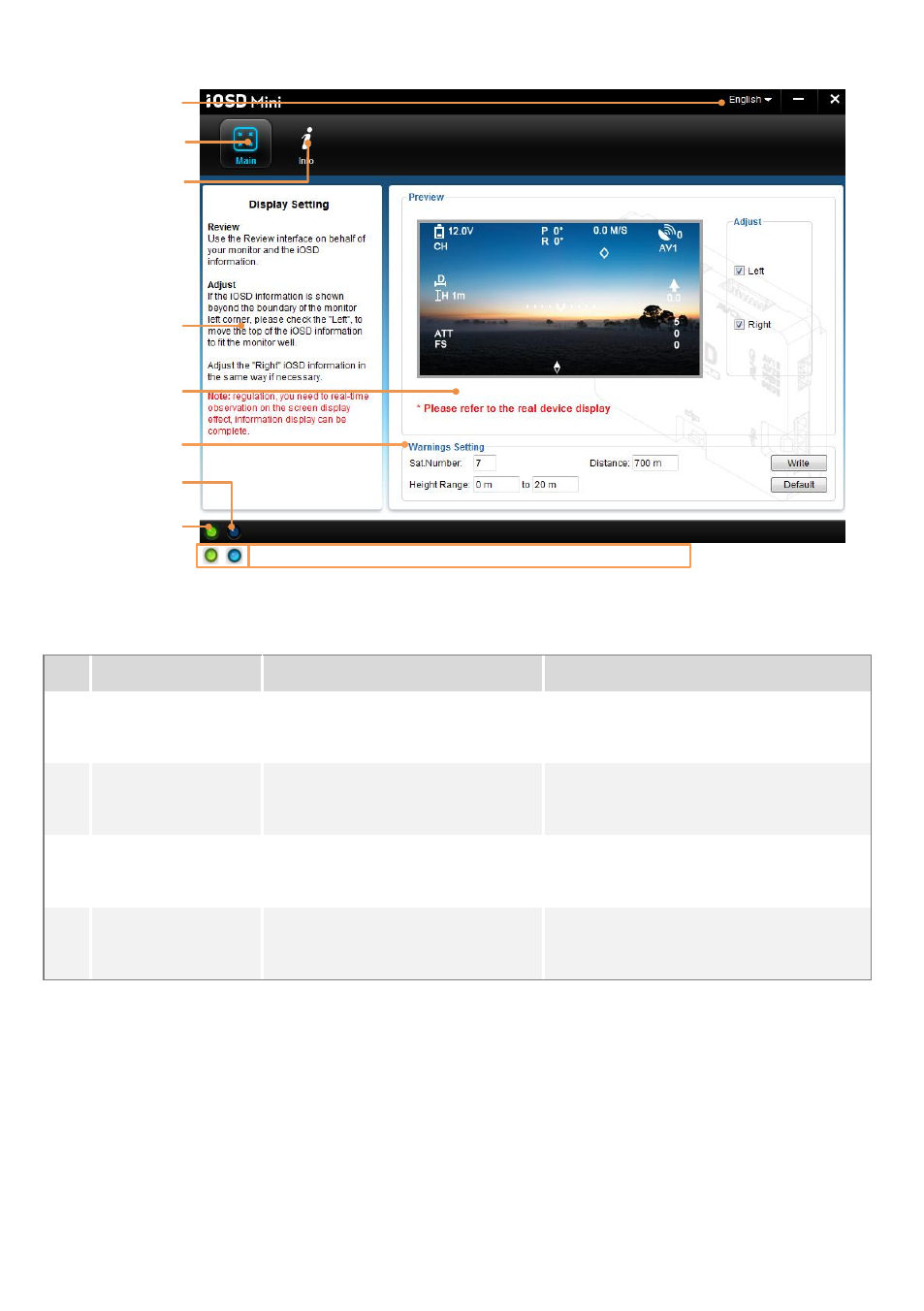

Assistant Software Usage
iOSD Setting
Software & Firmware
Upgrade etc
Text Indication
Main Window
Data Communication
Indicator
PC Connection
Indicator
Warning Setting
Language
iOSD is successfully connected to Assistant software.
Trouble Shooting
NO. What Why How to
1
Only OSD information,
video signal loss.
Video input error.
Ensure the connection between iOSD mini
and video input port is OK.
2
Only video signal, OSD
information loss.
Connection between iOSD mini and
autopilot system error.
Ensure the connection between iOSD and DJI
autopilot system is OK.
3
Both video signal and
OSD information loss.
Signal transmission error.
Ensure the communication between the video
transmitter and receiver is working correctly.
4
Both video signal and
OSD information loss.
The video signal cable to monitor is
unconnected or short circuit.
Ensure the connection of video signal cable is
OK.
