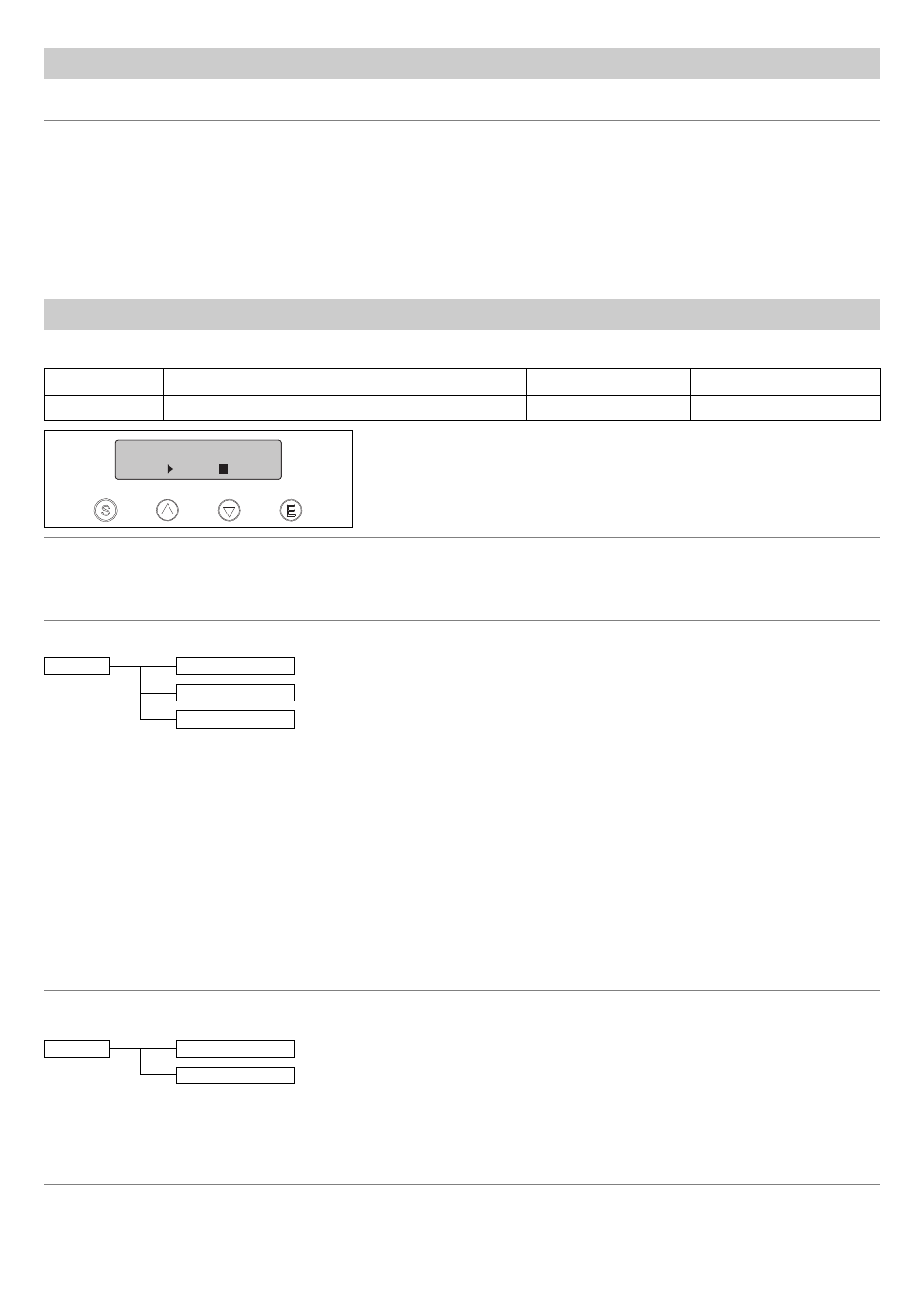

GLOW UP
By pressing the ENTER
A
key and UP
B
, the DMX address setting function can be quickly accessed.
By pressing the ENTER
A
key and DOWN
C
, it is possible to assign the desired command to the GlowUp Radio module:
1) Use the UP
B
and DOWN
C
keys to select one of the following settings:
Unlink Transmitter – Disconnected from the transmitter
Link Receivers – Connected to all free receivers
Unlink Receiver – Disconnected from all receivers
TX mode (see page 10)
RDM Discovery (see page 10)
2) Press ENTER
A
to confirm the selection (the display blinks for several seconds) or SELECT
S
to keep the current settings and return to the
previous Menu.
By pressing any button when Glow Up is in idle status, the BUTTON FUNCTION menu is accessed.
Press SET SELECT
S
to access the menus (see page 9):
Program
DMX Address
Advanced (Menu use is recommended for qualified technical personnel.)
Press ENTER
A
MOD to select the Glow UP operating mode
Use the UP
B
e DOWN
C
keys to select the mode from those available:
Stand Alone / DMX – Press ENTER
A
to confirm (runs “Unlink Transmitter”, receives the DMX at the pre-set address; by using the PLAY
key, a scene
may be chosen to be run locally and the DMX being inactive)
Master/Slave (The "Transmitter" transmits to the "Receivers" the default programme in PLAY) - Press ENTER
A
and select the mode from those available:
• Receiver enables established wired or wireless reception and reads channels, starting from channel DMX 1, without changing the pre-set DMX address.
• Transmitter enables established wired or wireless transmission, transmits starting from channel DMX 1, without changing the pre-set DMX address.
Master/Slave DMX Rec (The "Transmitter" transmits the DMX recording to the "Receivers") - Press ENTER E and select the mode from those available:
• Receiver enables established wired or wireless reception and reads channels, starting from the pre-set DMX address.
• Transmitter enables established wired or wireless transmission, transmits starting from the pre-set DMX address.
NOTE: in a GlowUp series which is part of a battery, it is imperative to first select all the receivers and finally select the Transmitter.
II
PLAY/PAUSE UP
B
key: activates or pauses a particular mode.
By pressing the PLAY
UP
B
button, the sub-menu can be accessed:
Fixed Colours: it is possible to associate a bit value to each GlowUp channel or you can select a color from the stored ones by accessing the Preset Colors
menu (see table on page 8). It is possible to mix Strobo and Dimmer with any preset color channel.
Sequence: it is possible to associate Speed and Fade of the pre-set Sequences (Preset 1,2,3)
STOP
DOWN
C
key: deactivates the active programme.
Symbol
SET
or
II
MOD
Function
Setting
Play/Pause
Stop
Mode
BAT
40%
??
SET
MOD
Stand Alone / DMX
Master / Slave
Master / Slave DMX Rec
Mode
Fixed Colours
Sequernces
Play
SHORTCUT KEYS MENU
BUTTON FUNCTION
