Brinkmann Backyard Kitchen User Manual

Page 28

Step 29

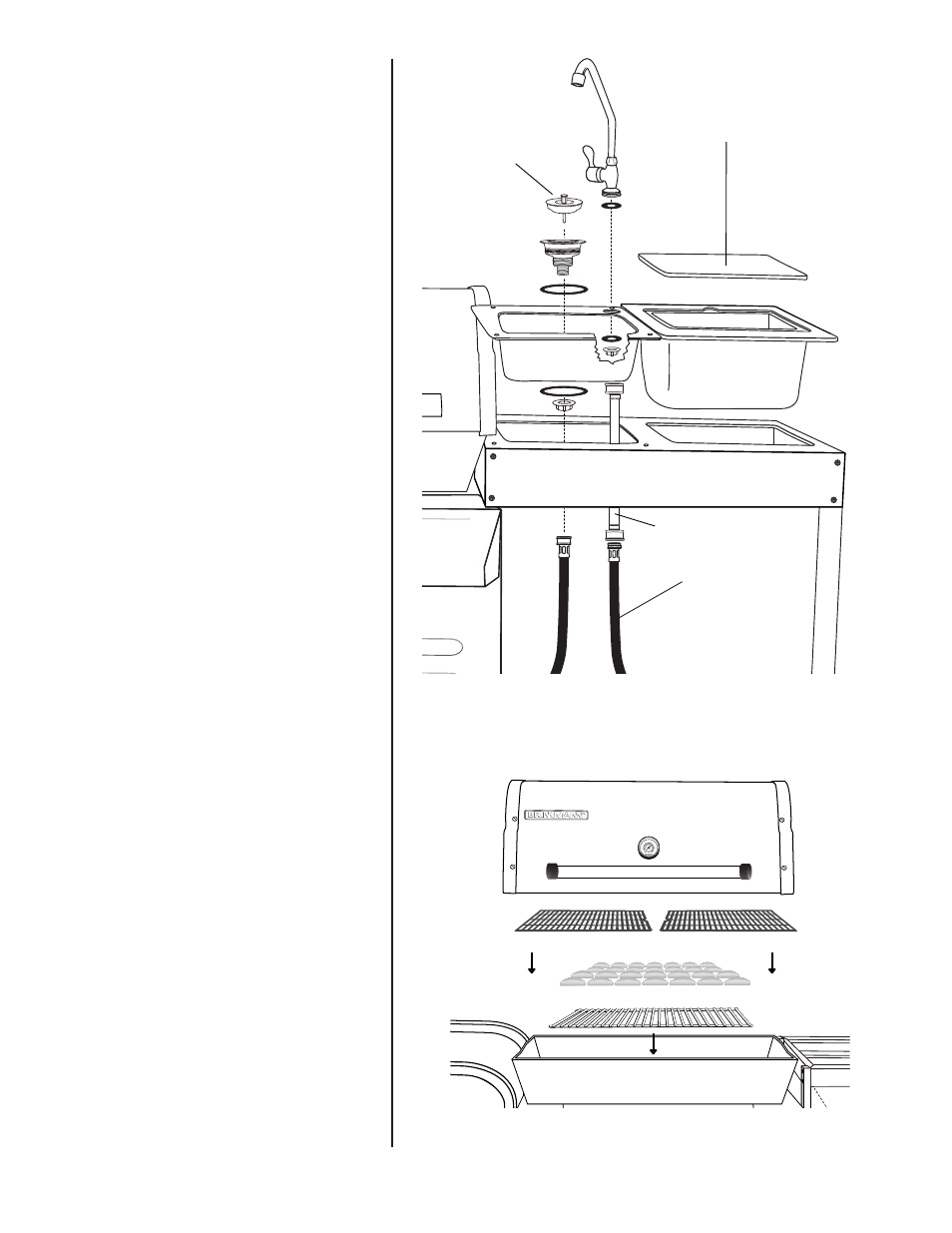

Install drain by placing rubber
gasket around opening in bottom
of basin. Insert drain through
opening. Place second gasket
under bottom side of the basin
and over the drain. Secure using
large plastic nut provided with
drain. Hand tighten.

Step 30

Place faucet through the hole in
the basin with one washer above
and one washer below the basin.
Secure with plastic nut provided.

Step 31

Attach smaller end of water
supply hose to the threaded end
of the faucet. The male end of a
standard garden hose will fit the
free end of the supply hose and
provide water to the faucet.

Step 32

Attach the drain hose to threaded
end of the drain.

Step 33

Place ice bucket into the opening
next to the sink in the upper
kitchen frame. The removable lid
can serve as a cutting board.
Fingerhole should be oriented to
the back of the grill.

Step 34

Place briquet grate into lower grill
housing. The grate should rest on
the ledge just above the burner
level.

Step 35

Place ceramic briquets, flat side
down, onto briquet grate. Space
out the briquets evenly on the
briquet grate.

Step 36

Place cast iron cooking grills on
support ribs in lower grill housing.

Cutting Board

Water Supply Hose

Strainer

350

400 450

700

Water Supply Garden Hose

(Not supplied)
