Step 18
Mount lower grill housing onto
upper grill frame using four M6 X 35
bolts and M6 X 5 hex nuts.
Step 19
Remove four bolts from burner
supports on bottom of burner. Insert
the grill burner into the lower grill
housing by sliding Venturi tubes
through the large square opening in
the bottom of the housing. The gas
collector and electrode should face
towards the front of the grill. The
Venturi tube ends should fit over
the valve manifold ends.
NOTE: Manifold will have offset
holes and can only be
installed by aligning
holes in manifold with
holes in control panel.
Step 20
Secure burner to lower grill housing
using the four bolts that were
removed previously from the burner
in Step 19.
24

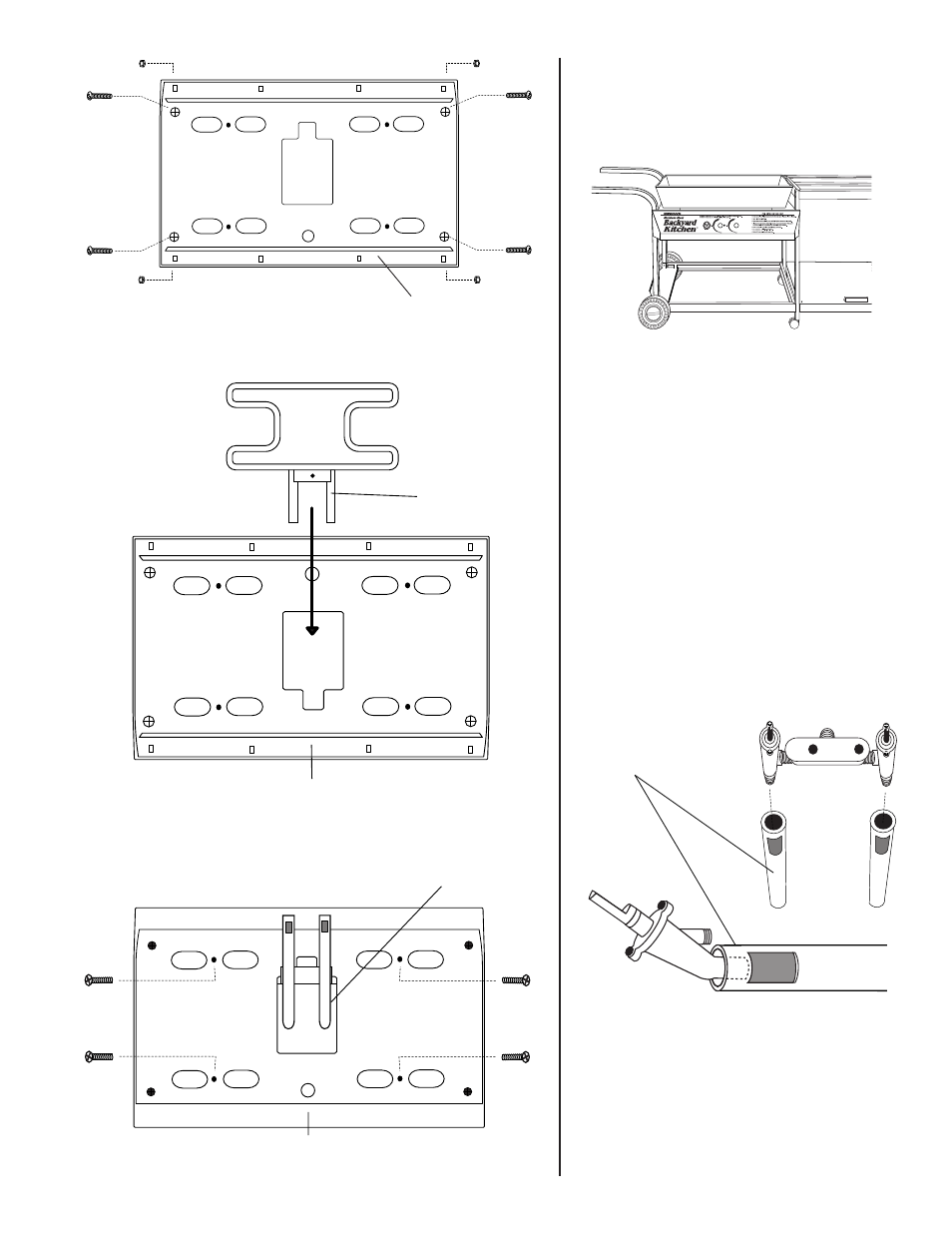

NOTE: Inside view of Lower Grill Housing
Venturi Tubes
Venturi Tubes
Inside view of Lower Grill Housing
Burner
Bottom - Outside view of Lower Grill Housing
