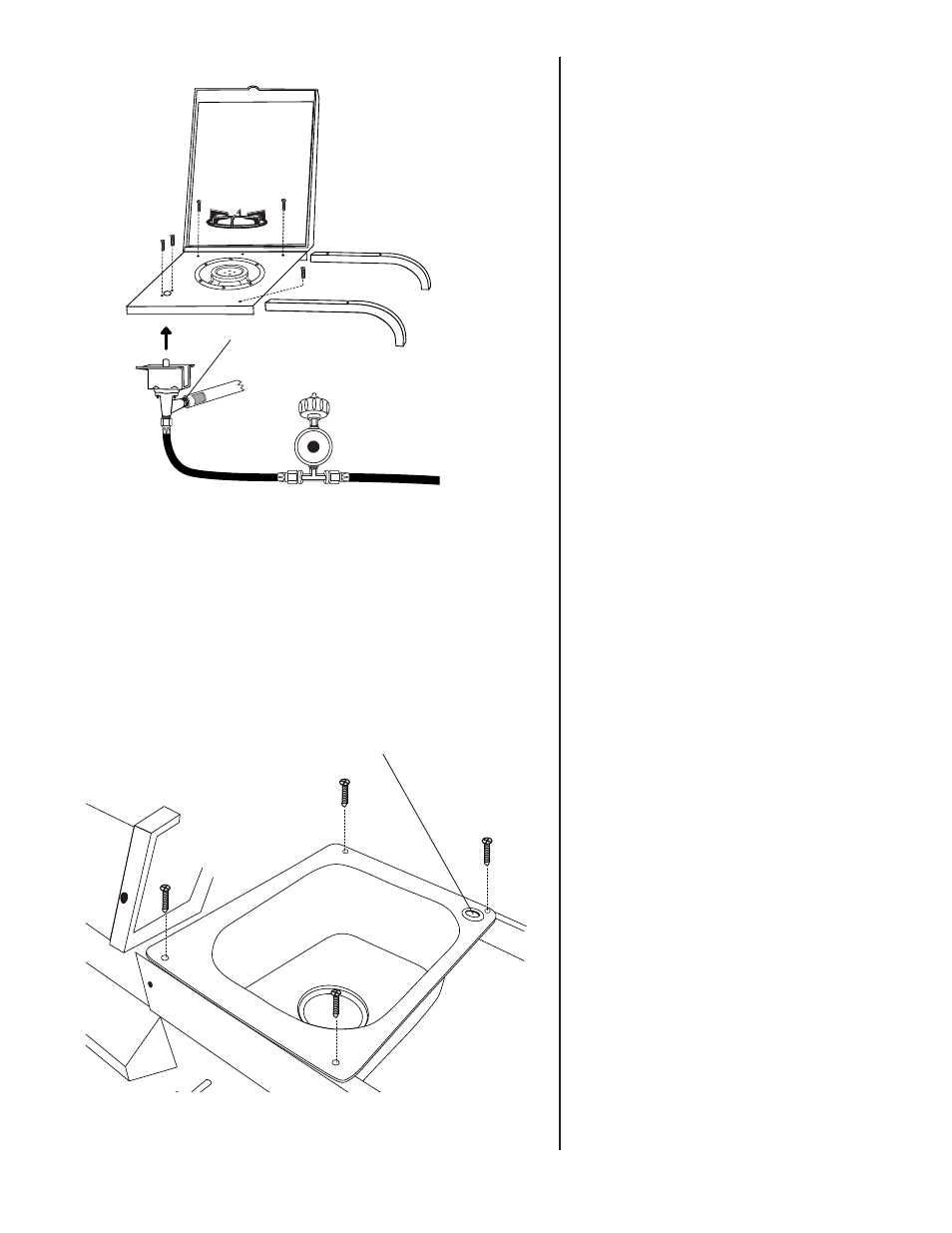

Step 25
Slide side burner frame onto burner
legs. Align holes in frame with holes
in leg. Secure using three stainless
steel sheet metal screw.
Step 26
Place side burner grid over burner.
Align studs on bottom of grid with
holes in burner pan.
Step 27
With orifice inserted into end of
Venturi tube, attach side burner
valve assembly to bottom of side
burner frame using screws
provided with valve assembly.
Step 28
Place sink basin on to upper
kitchen frame and align holes.
Secure using four stainless steel
sheet metal screws.
26
NOTE: Locate faucet hole towards backside of grill.
Orifice inserted into
Venturi Tube
