25

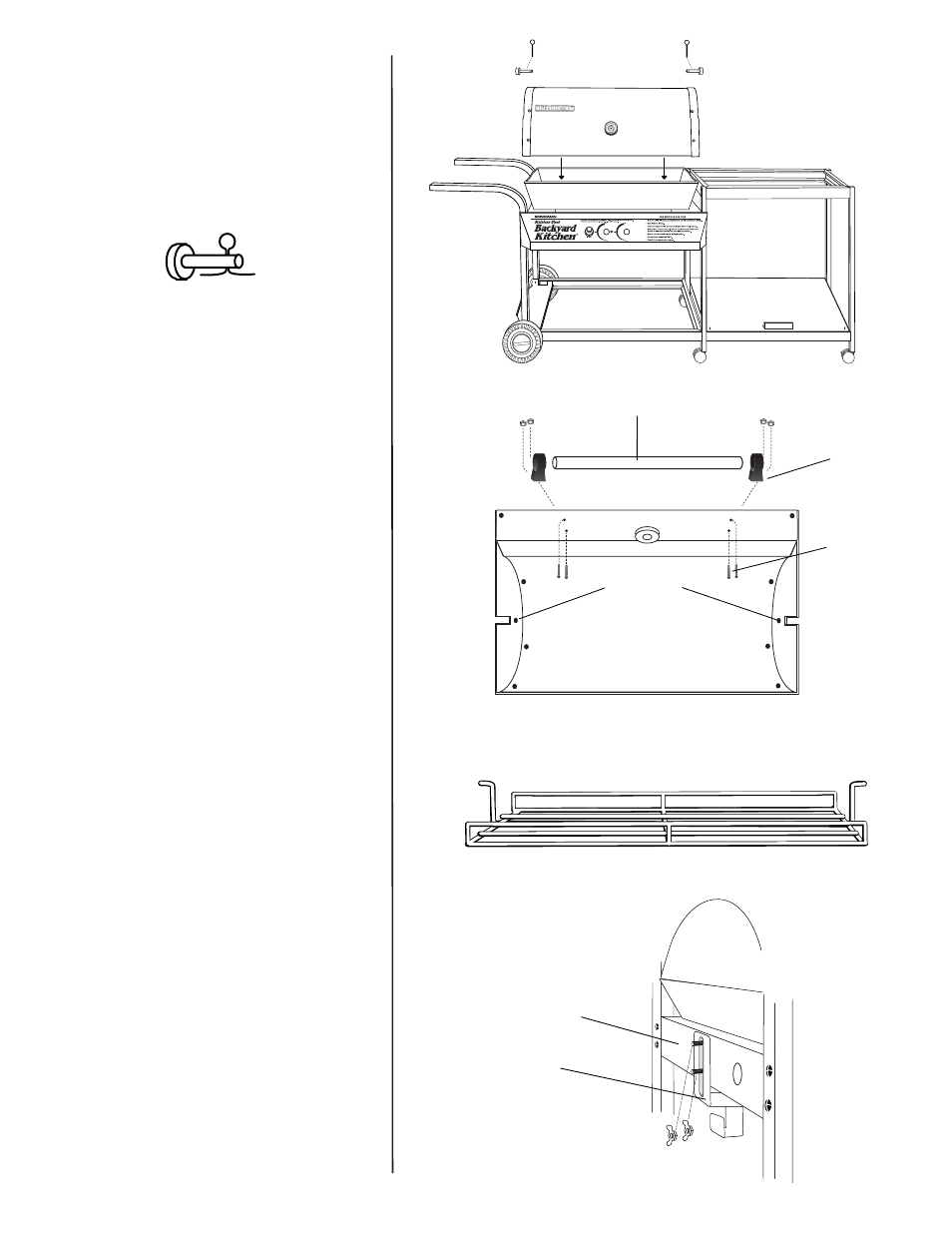

Step 21
Place hood on top of lower grill
housing and insert hinge pins
through upper and lower hinges,
then secure with cotter pins. Bend
ends of cotter pin around hinge pin
to secure.
Step 22
Attach one handle stand using two
M6 X 12 bolts and M6 X 5 hex
nuts. Next insert hood handle by
sliding into stand. Place the other
handle stand over handle and
attach it by using two M6 X 12 bolts
and M6 X 5 hex nuts.
Step 23
Insert hanging rack into pivot boss
on left side of hood interior. Insert
into pivot boss on right by flexing
pivot wire on the hanging rack.
Step 24
Attach tank hook bracket to studs
on left side of upper grill support
frame using two wing nuts.
Grill Support Frame
Tank Hook Bracket
10 0 15 0 2 0 0 2 50 30 0 350 400 450 50 0 55 0 6 0 0
65 0 700
Hinge and Cotter Pins
Hanging Rack
Inside view of Grill Hood
Pivot Boss
Handle Support
Handle
M6 X 12 Bolts
