Brinkmann Backyard Kitchen - Manual (Page 24)

23

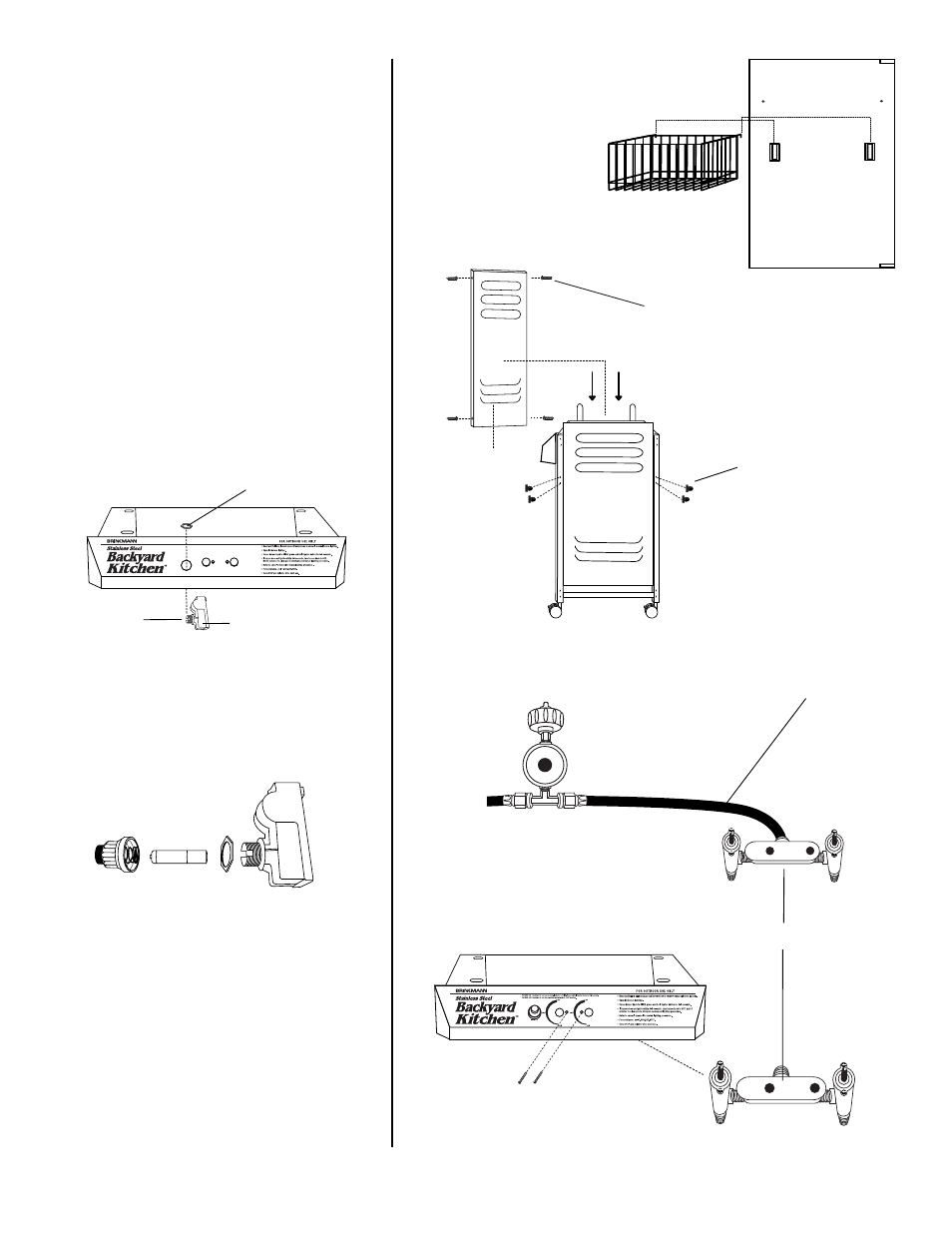

Step 13
Slide baskets into slots located on
inside of doors.
Step 14
Attach right side panel between
straight legs using four #8 X 3/8"
sheet metal screws. Panel should be
mounted with louvers toward bottom
of panel. Then add four plastic
inserts into holes on straight legs.
Step 15
Remove button cap and retaining
nut from igniter. Feed threaded end
of igniter through hole on the
control panel from back side and
secure with retaining nut.
Step 16
To install battery unscrew igniter
button cap. Insert battery with
positive end towards button.
Replace igniter button cap.
Step 17
Attach control valve manifold to
control panel using screws and split
lock washers provided with
manifold. One screw hole is offset
for proper installation.
NOTE: Manifold will have offset
holes and can only be
installed by aligning
holes in manifold with
holes in control panel.
Louvers
Sheet Metal Screws
screw from inside of Panel
Control Valve Manifold
Four - Plastic inserts
Left Hose
Retaining nut
Insert this end
into hole Igniter
