11

T8396pr-0920

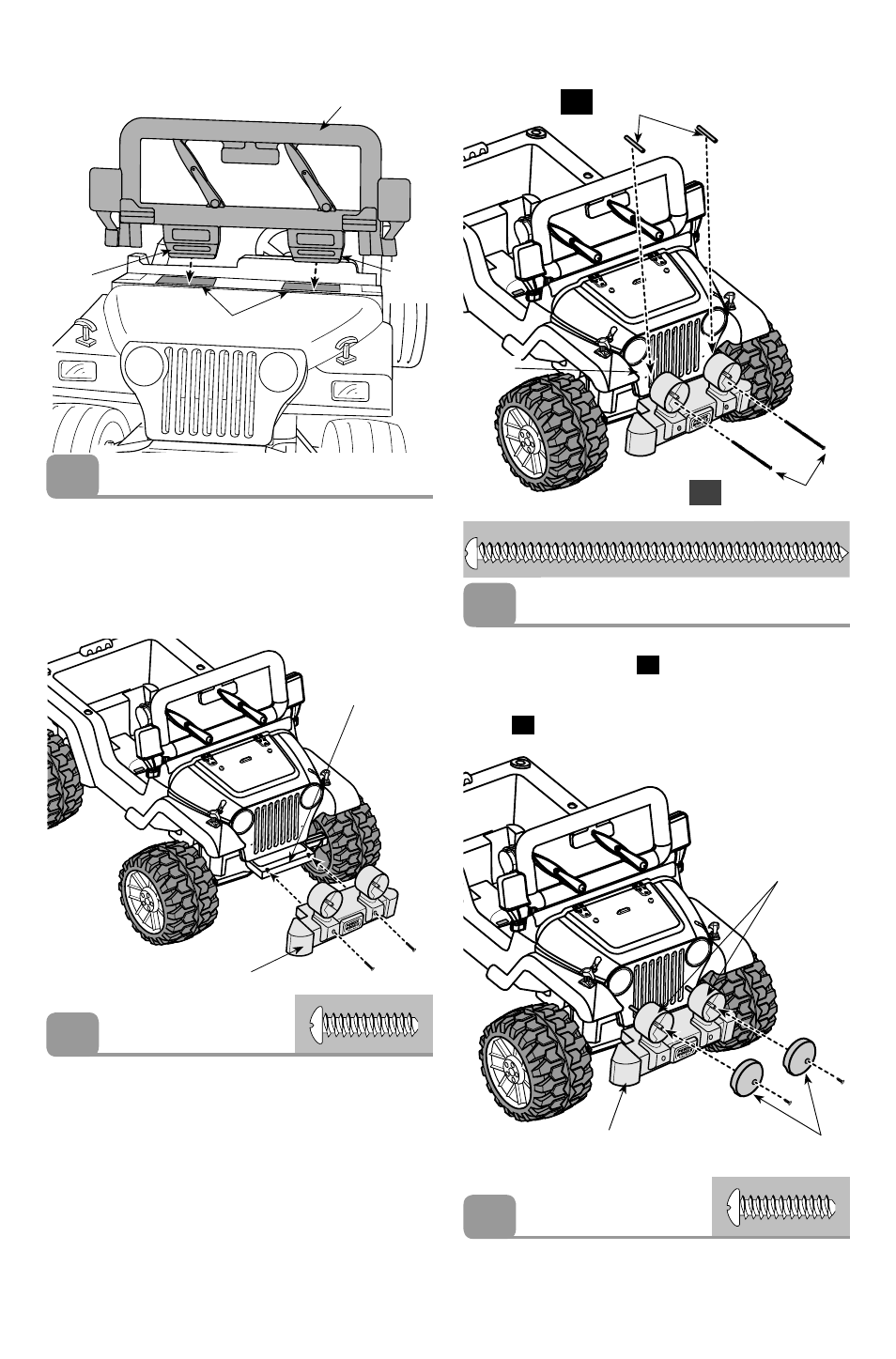

ASSEMBLY

• Position the windshield so that the molded detail on

the wipers faces the front end of the vehicle.

• Insert and “snap” the two large tabs on the windshield

into the large slots in the dash.

• Pull up on the windshield to be sure it is secure.

Windshield

Large

Tab

Large

Tab

Large Slots

Brush Guard

Front Bumper

• Fit and hold the brush guard against the front bumper.
• Insert two #10 x

3

/

4

" screws into the brush guard and

tighten.

13

12

• Fit two spacers between the grille and the back of the

brush guard, as shown

A

.

• Insert two #8 x 3" screws through the inside of

the headlight, the spacers and into the holes in the
grille

B

. Tighten the screws.

Spacers

Grille

A

B

#8 x 3" Screws

Brush Guard

Light

Covers

Headlights

14

• Fit the light covers to the headlights.
• Insert a #10 x

3

/

4

" screw into each light cover. Tighten

the screws.

15
