ASSEMBLY

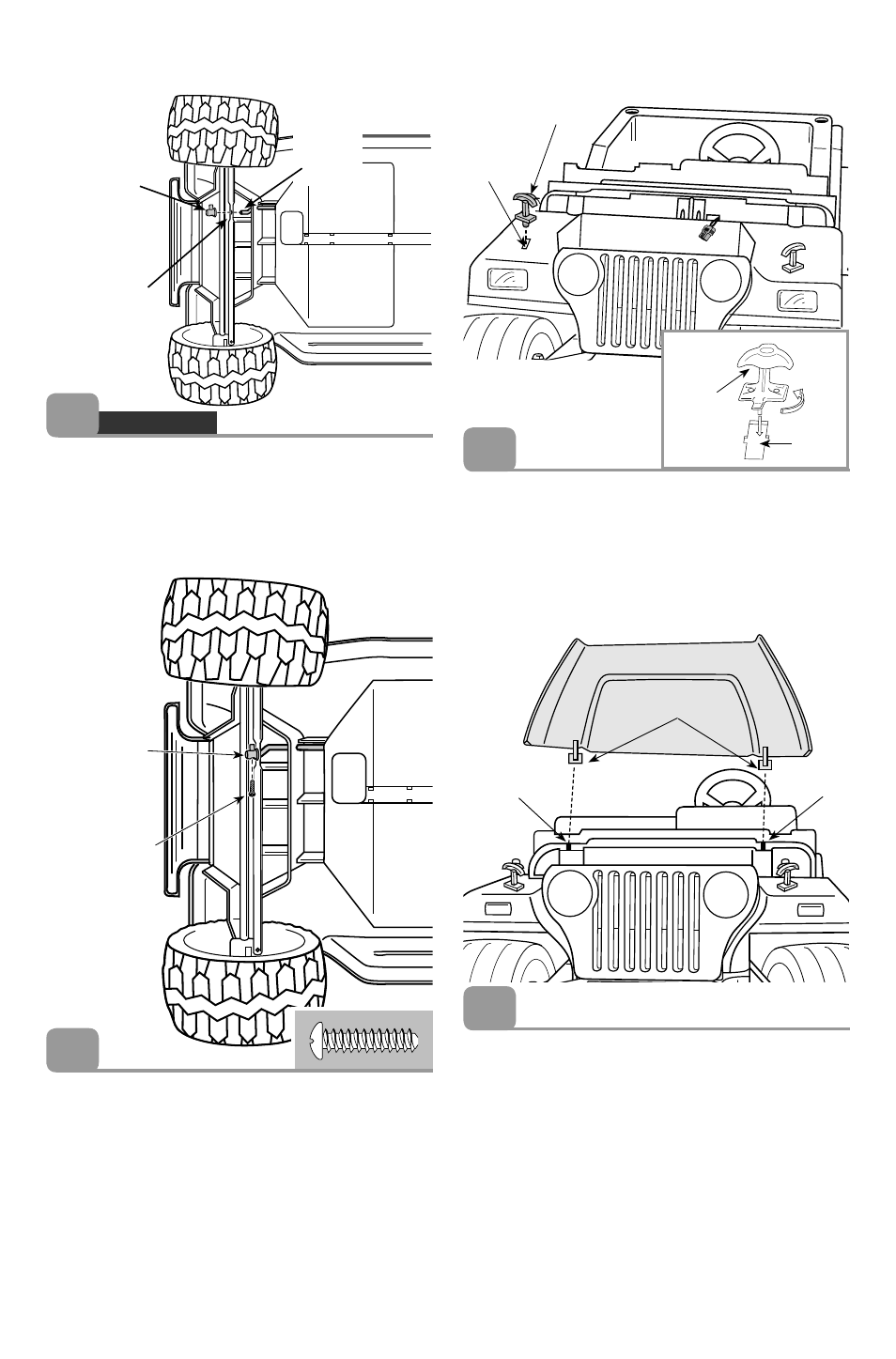

• Turn the vehicle on its side.
• Insert the end of the steering column through the hole

in the steering rod.

• Fit the steering column cap onto the end of the

steering column.

Steering

Column Cap

#10 x

3

/

4

" Screw

End of

Steering

Column

Steering

Rod Hole

Steering

Column

Cap

BOTTOM VIEW

8

9

• Insert a #10 x

3

/

4

" screw through the large opening

in the steering column cap and into the hole in the
steering column. Tighten the screw.

• Turn the vehicle upright.

Hood
Latch

Slot

Hood
Latch

Slot

• Insert a hood latch into one of the slots in the front

end of the vehicle.

• Twist the base of the hood latch

1

/

4

turn to secure it in

the vehicle.

• Repeat this procedure to attach the other hood latch to

the vehicle.

10

Hood

Tabs

Slot

Slot

• Insert the tabs on the hood into the slots in the front

end of the vehicle.

• Pull the hood forward and lower it closed.

11
