Installation of Rough-In-Box
1. Locate wall studs adjacent to the desired location.

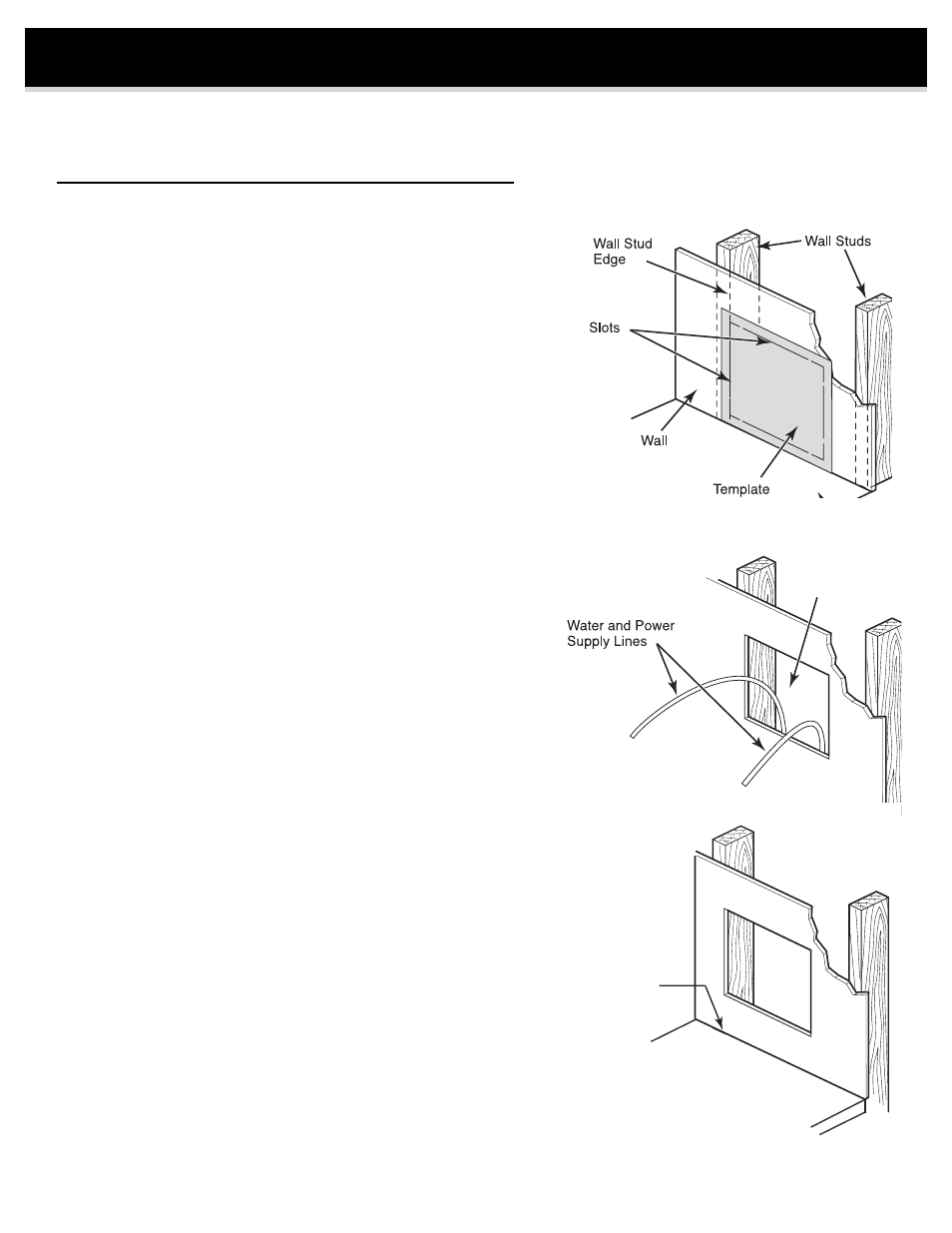

Place template on wall as shown. Outside edge of slots
in template should be even with left or right side of stud
edge. The slots in the template designate the area to be cut.
Outside edge of template is equivalent to brewer size .
See figure 1.
2. Use a utility knife to carefully cut inside the penciled
outline area. Start with the stud side and work outward.
DO NOT USE A SAW. Remove sheet rock section to expose
wall cavity. Bring water and power supply lines from source
to this location. Allow 18” of slack. See Figure 2.
3. IMPORTANT Completely seal all gaps between counter
and wall with silicone caulk. This prevents water from
going behind the cabinet if there is a water leak.
Figure 3
Figure 1
BrEwEr INSTALLATION
CUTOUT
(allow 18” of slack)
Caulk gap
