BLUESHAPE CVS8XW User Manual
Page 4
4

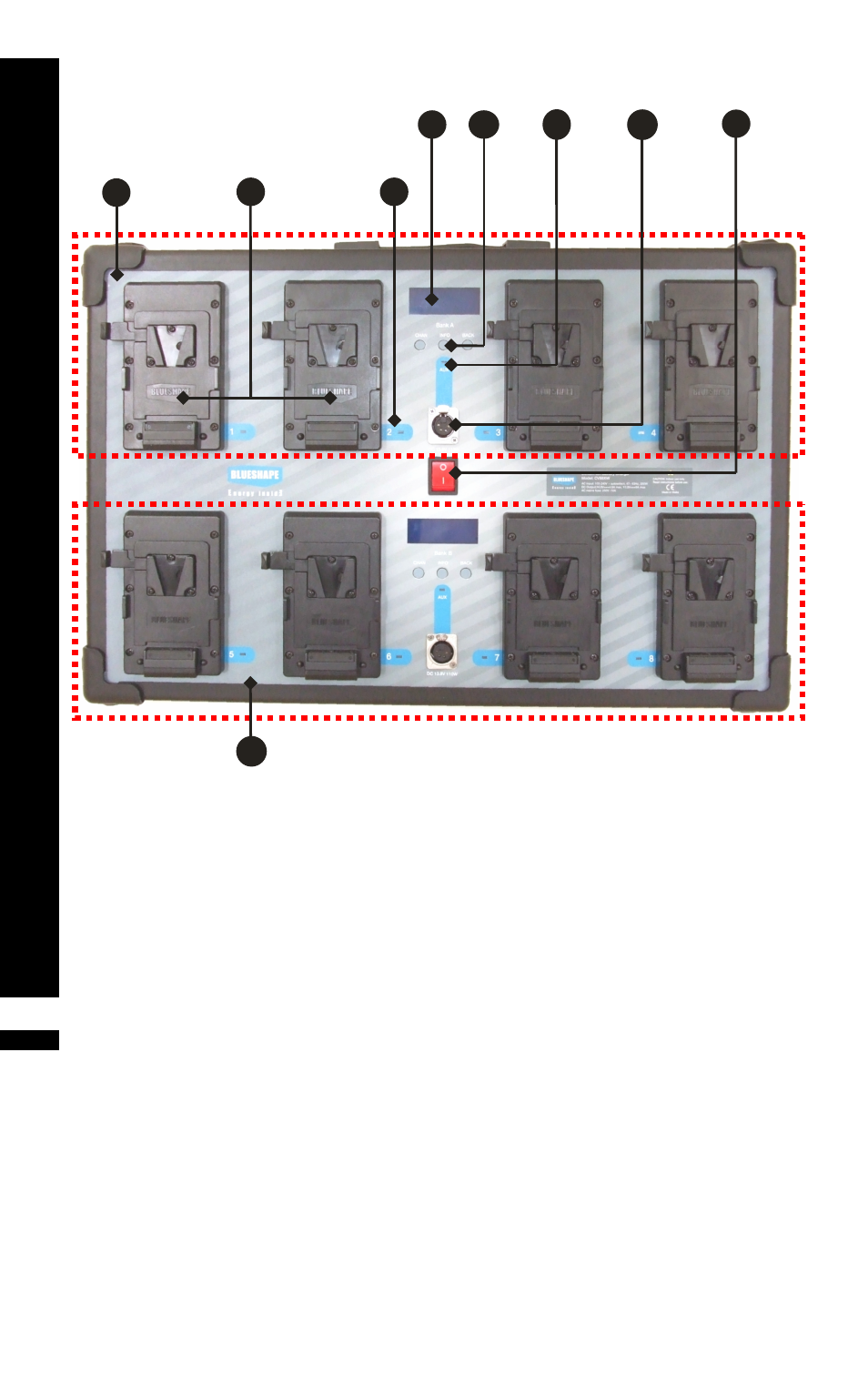

CVS8XW graphic description – Front view
1. Upper Bank-A (channels from #1 to #4)
2. Battery charging bays
3. Battery LED indicators (see page 15 for explanation)
4. LCD
display
5. LCD
keys
6. AUX output LED indicator (see page 16 for explanation)
7. AUX output connector (13.8V 110W)
8. Mains
switch
9. Lower Bank-B (channels from #5 to #8)
5
2
4
7
6
8
9
1
3
