CTP: flexibility of operation and charger reliability
Due to the high charging currents developed by the CVS8XW
charger, heat control is an issue for reliability and operational
consistency, even in presence of an abundant air flow convection.
To improve the reliability of the device without compromising its
usage flexibility, BLUESHAPE has developed an innovative feature;
CTP (Charger Thermal Protection) that allows the electronics to work
out the best possible charge profiles without causing damage, even in
adverse temperature conditions.
In case of the charger internal temperature reaching a high level, the
charging current is automatically reduced to avoid possible damage
caused by internal overheating. When the charging speed is reduced,
the internal temperature starts to descend. As soon as the
temperature reaches a safe level, normal charging speed is resumed.
Through indoor usage, CTP features do not normally intervene
(unless the air convection flow path is obstructed or the internal
cooling fan is damaged).

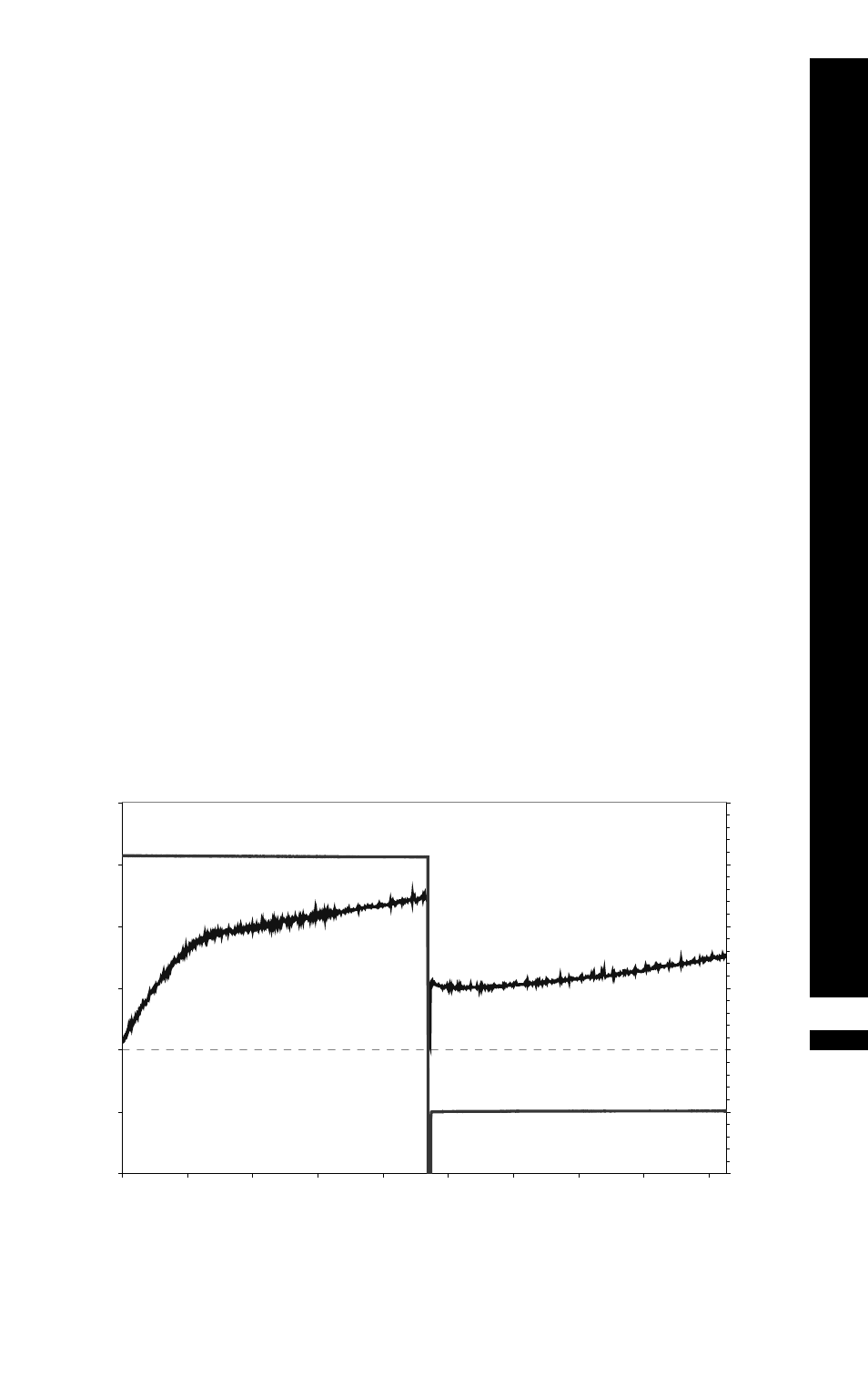

The operation implemented by CTP is outlined in the chart below.
CTP - Charger Thermal Protection
14700
14800
14900
15000
15100
15200
15300
500 650 800 957 1107 1260 1410 1560 1710 1860
Time (min)
V
o
lt
ag
e (
m
V
)
1500
2000
2500
3000
3500
4000
4500
Current
(
m
A)
CURRENT
VOLTAGE
Before CTP activation:
charger at normal speed
After CTP activation:
charger at reduced speed
