NOTE: A tapped heat sink can be used instead

of using a washer and nut.

3. To ensure a proper thermal contact, torque the

mounting screws to 25 to 30 inch-pounds.

WARNING

Never attempt to connect or disconnect the equipment

from the transmission line while RF power is being

applied. Leaking RF energy is a potential health hazard

4. Using a suitable cable, as short as convenient, at-

tach the RF power source to the load with a mat-

ing connector.

5. Tighten all connections.

6. Ensure the heat sink has ventilation adequate to

maintain the loads body temperature to a maxi-

mum of 155°C (311°F) on top.

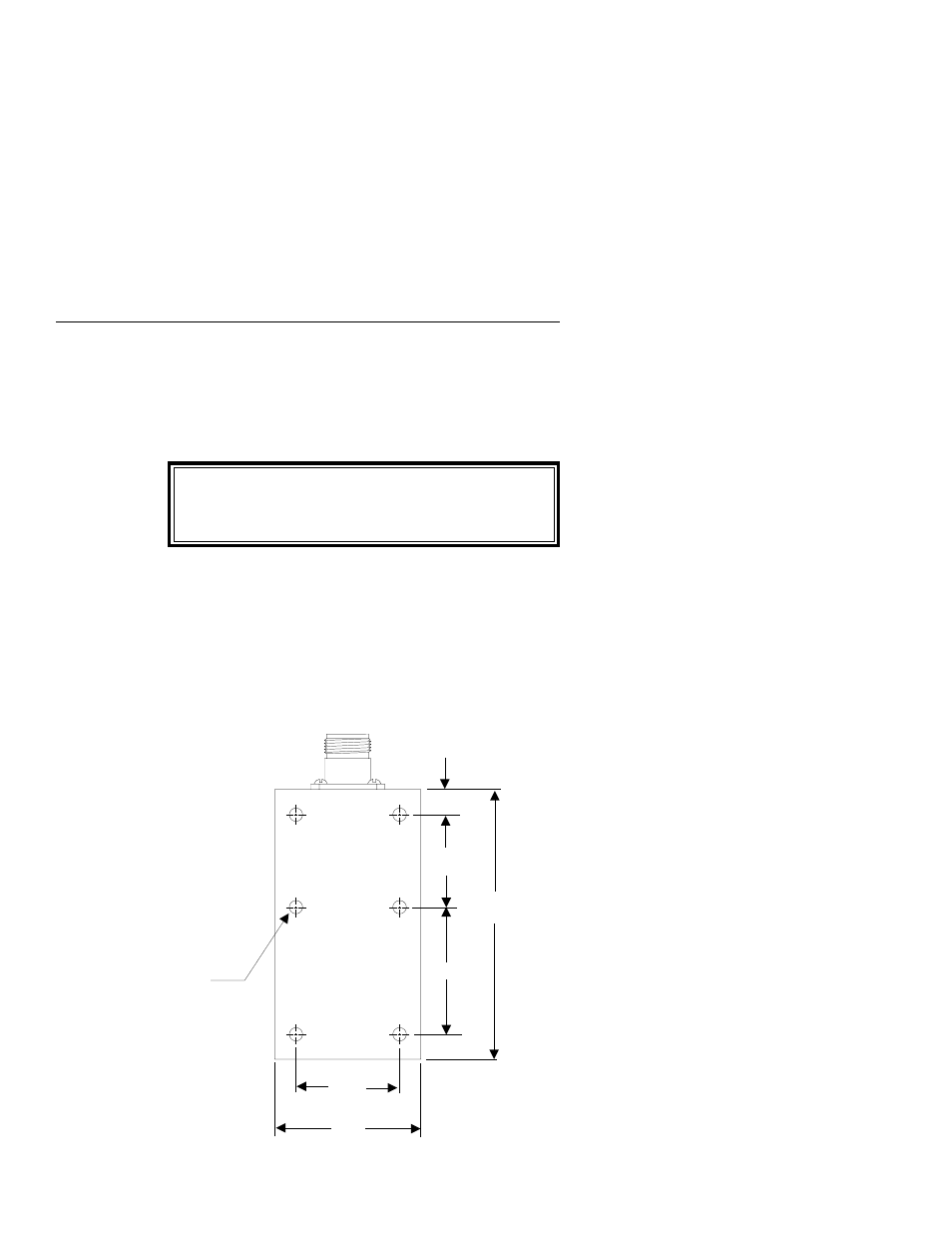

Models 8072A-1 & 8072A-2

Termaline RF Coaxial Load Resistor

2

1.400

O.C.

2.000

1.719

1.250

.344

3.656

.181 DIA. THRU HOLES

6 PLACES

Mounting Template
