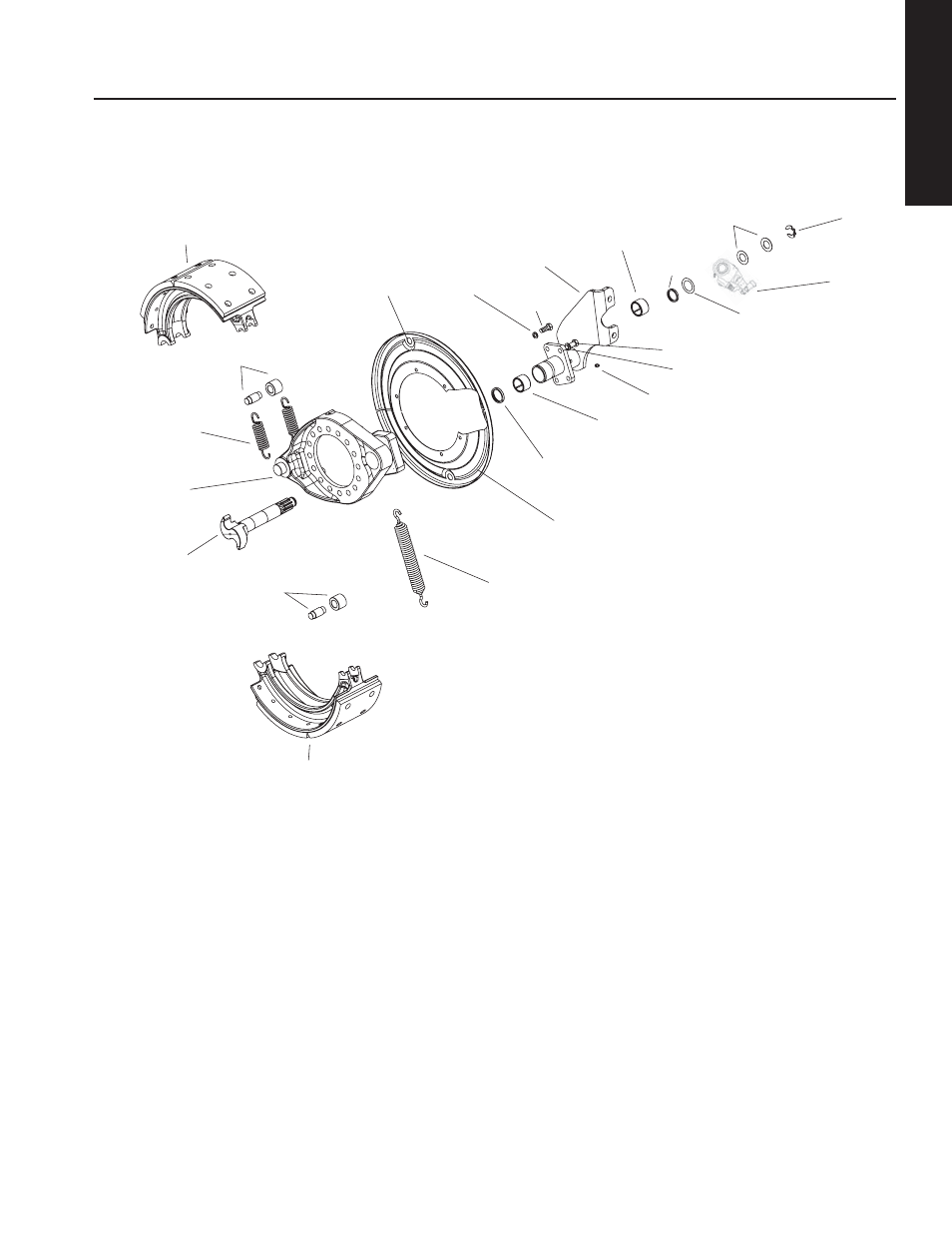

Nomenclature
EB-180-7R
Camshaft
Cast Shoe Assembly with bolted on lining
Cast Shoe Assembly
with bolted on lining
Camshaft Roller
and pin
Shoe Return
Spring
Camshaft Roller
and Pin
Grease
Seal
Bracket
Assembly
Camshaft
Bushing
Grease
Seal
Brake Adjuster
Inner Washer
Camshaft
Shim
Washer
Camshaft
Retainer
Snap Ring
Cast Spider
Shoe
Retainer Springs
Camshaft
Bushing
Brake Adjuster
Inspection
Hole Plug
Dustshield
Grease
Fitting
Lock Washer
Bolt
Bracket Bolt
Lock Washer
Nomenclature
Automatic Slack Adjuster
