Fault Isolation Procedures
Code 14, 35
(SID 1, 2, FMI 2, 12, 14)
2-30
Code 14, 35 (SID 1, 2, FMI 2, 12, 14) Antenna
Step A Procedure Condition Action
Step B Procedure Condition Action
1. Key off.
2. Using a PC-based or
Hand-held Diagnostic
Tool check for FMI
(Failure Mode Identifi er)
codes.
Note: If a diagnostic tool is not
available, go to Step B.
1. Key off.
2. Unplug the Antenna 4-way
connector.
3. Key on.

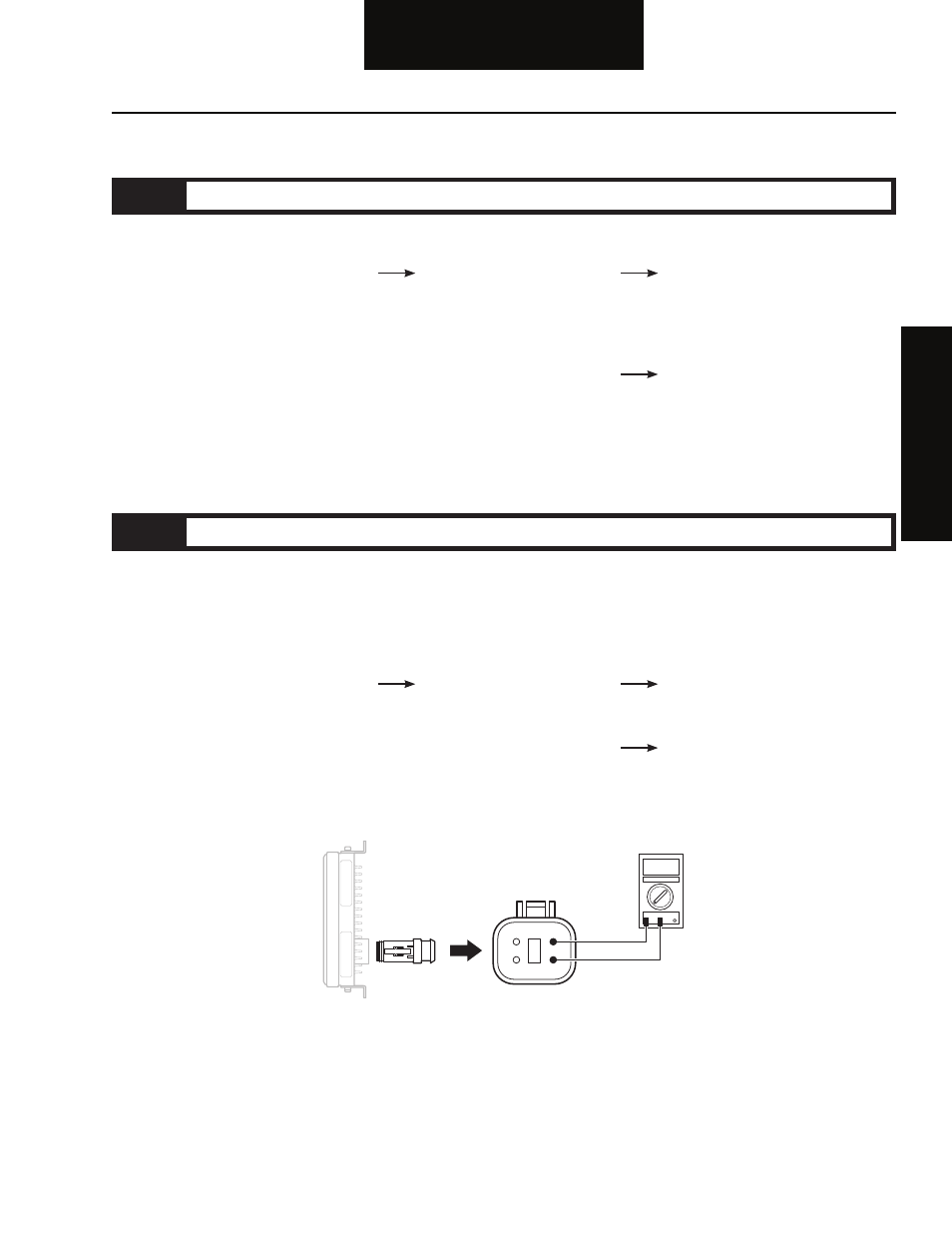

4. Measure voltage between
Antenna 4-way connector
pin 3 and pin 4.
If FMI 2 exists
If FMI 12 exists
If FMI 14 exists
If voltage is 7.0 to 7.5 volts
If voltage is outside of range
Go to Step B.
Go to Step B.
There may be a software
compatibility problem.
Contact your Bendix
representative.
Go to Step E.
Go to Step C.
VOLT
V A COM
1
2 3
4
