4

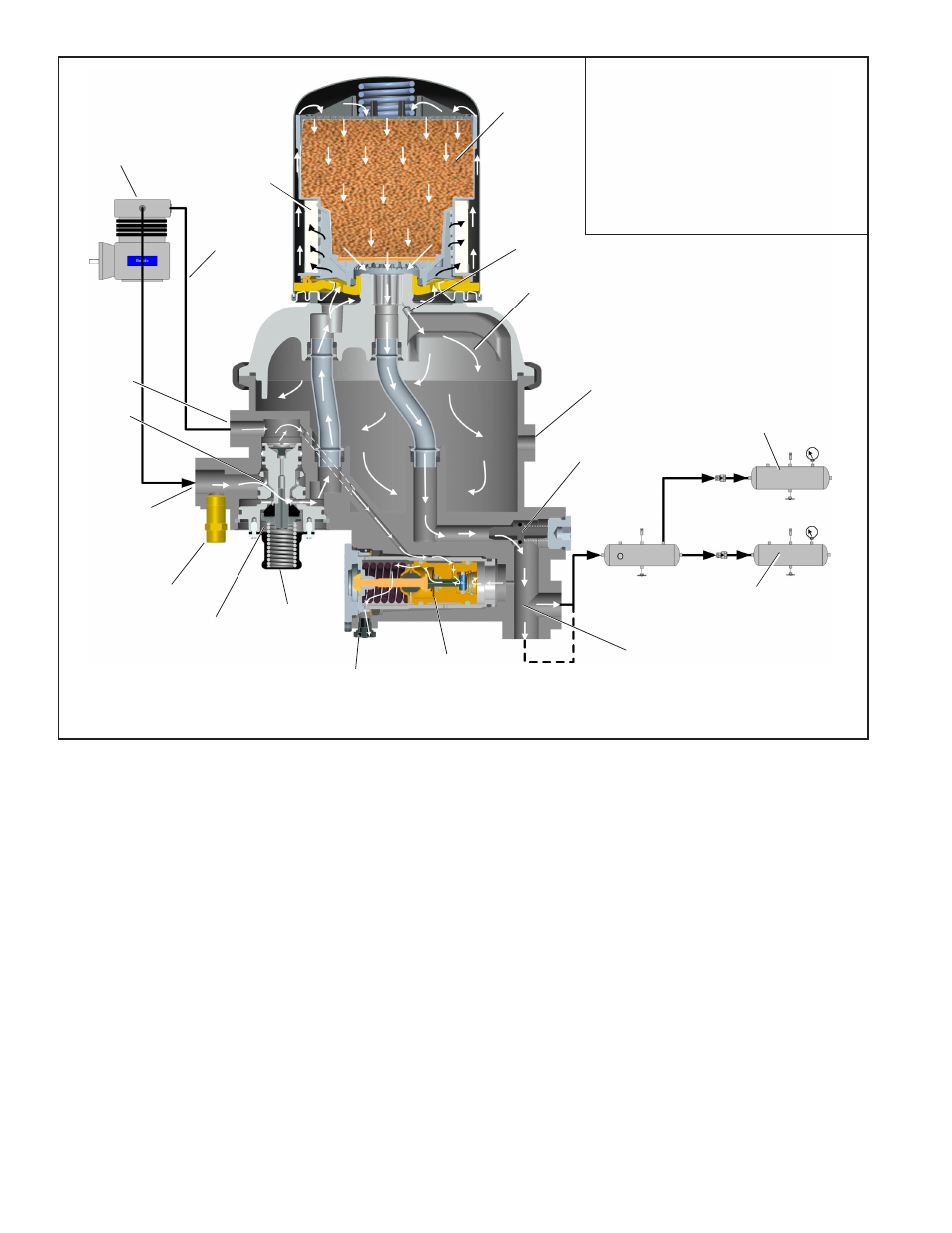

FIGURE 2 -

BENDIX

®

AD-9si

AIR DRYER WITH GOVERNOR—CHARGE CYCLE

COMPRESSOR

GOVERNOR

DESICCANT

BED

DELIVERY

CHECK

VALVE

PURGE

VALVE

CONTROL

PORT

SUPPLY

PORT

FRONT

RESERVOIR

Note 1:

The Bendix

®

AD-9si

air dryer purge piston has

a purge control channel drain. This allows any

condensation in this area to flow past a diaphragm

in the top of the purge piston and out through a

channel in the middle of the central bolt of the purge

assembly to be drained. During the purge cycle this

drain is closed.

SAFETY

VALVE

REAR

RESERVOIR

PURGE

ORIFICE

OIL

COALESCING

FILTER

CONTROL

LINE

PURGE AIR

EXTENDED

PURGE

PORT

EXHAUST

EXHAUST

DELIVERY

PORT

CHARGE CYCLE

(Refer to Figures 2 and 4)

When the compressor is running loaded (compressing air),

compressed air flows through the compressor discharge

line to the inlet (IN 1) port of the air dryer body. The

compressed air often includes contaminates such as oil,

oil vapor, water and water vapor.
Traveling through the discharge line and into the air dryer,

the temperature of the compressed air falls, causing

some of the contaminants to condense and drop to the

bottom of the air dryer and purge valve assembly. These

contaminants are ready to be expelled at the next purge

cycle. The air then flows through the inlet tube and

into the desiccant cartridge, where it flows through an

oil separator — or coalescing filter if equipped with a

Bendix

®

PuraGuard

®

oil coalescing cartridge — which

removes water in liquid form as well as liquid oil and solid

contaminants.

Air then flows into the desiccant drying bed and becomes

progressively more dry as water vapor adheres to the

desiccant material in a process known as adsorption.
Dry air exits the desiccant cartridge, through the outlet tube,

then flows to the delivery check valve. Some air exiting

the desiccant cartridge is diverted through the orifice into

the purge volume area. The delivery check valve opens,

supplying air to the two delivery ports. The purge reservoir

fills, storing air that will be used to regenerate the desiccant

during the purge cycle.
The air dryer will remain in the charge cycle until the air

brake system pressure builds to the governor cut-out

setting of approximately 130 psi.

TURBO

CUT-OFF

VALVE

(OPEN)
