Wirepulley
USER MANUAL
8
LEDONARDO 1
WWW.BROTHERS-SONS.DK

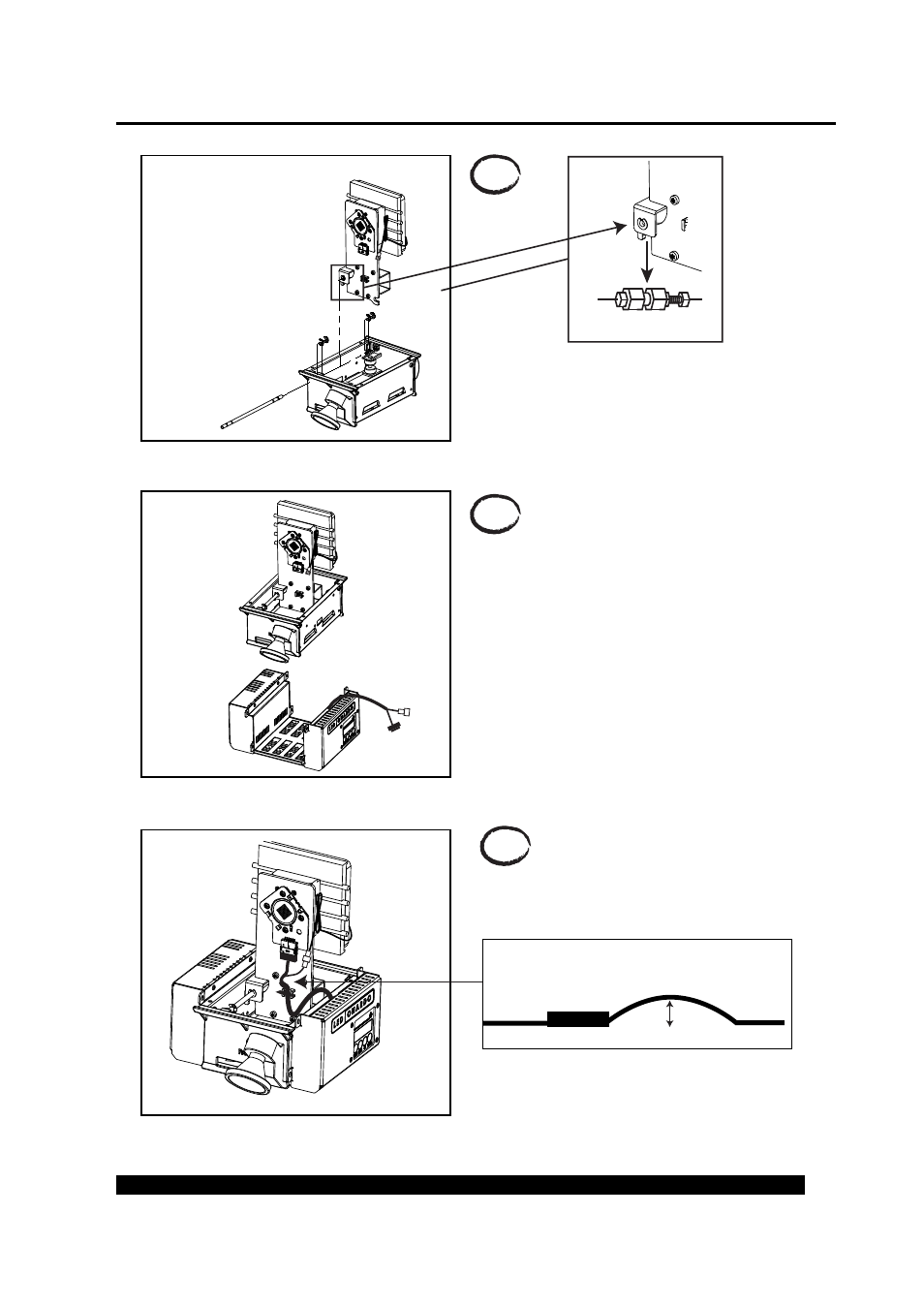

Note:
Remember to insert the guide bar with the correct orientation.
Place the LED / Heatsink part on the remaining guide bar and
the wirepulley. Insert the guide bar we took out in step 2 and
apply the 4 locking rings again.
7
8
With the cable assembly hanging to the side, place the LED
assembly in the controlbox assembly as shown.
9
Connect the LED cable and the fan cable as shown.
Strap them on to the LED assembly with the supplied cable tie
as shown, leaving a small amount of slack on LED side of the
cable tie.
Approx. 8 mm / 0,31” loose cable.
user manual rev. 1.06
