Brother, Brother & Sons Area48soft Quick Start ver. 2.0.05 - Manual

The unit will only switch on if the remote phosphor media
is installed and the switch is locked.
Default settings: DMX resolution: 16 bit - Response: Slow - Curve: Square - Strobe: OFF -
NO DMX: Hold - Display: Off after 2 minutes
Reset: The unit can be reset to default from menu or by pressing and holding the menu button within the
first 5 seconds after switching on the power until the display reads: RESET
Display orientation: The display readout can be flipped up side down by pressing the UP and DOWN
buttons simultaneously.
Start up: At powerup there is a delay of 5 seconds before the unit is operational.

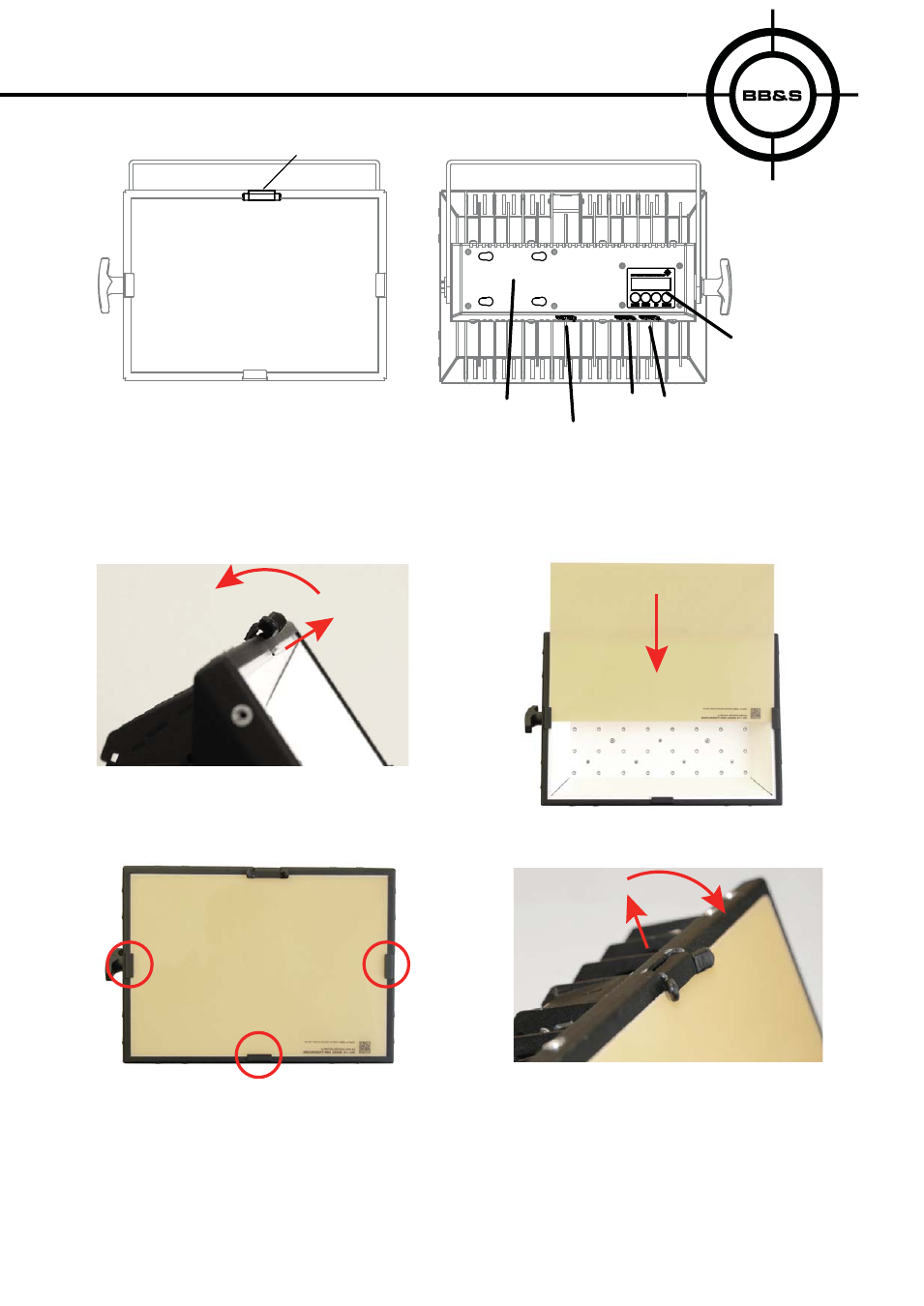

Inserting the phosphor media and operating the lock:
1. Pull the lock out
2. Lift it up, so that it rests on top of the frame.
1 2
3
A C
B
3. Slide your phosphor media in from the top.
...continued on next page
5. Pull the lock up
6. Then out and down to lock the switch 4. Make sure the phosphor media rests behind the
mediaholders A , B + C
5
6
PHOSPHOR MEDIA LOCK
DMX OUT
DISPLAY +
CONTROL
PANEL
DMX IN
POWER IN
AREA FOR
BATTERY MOUNT
OPTION.
QUICK START
AREA 48
Software vers. 2_0_05
