Impositions and their setup

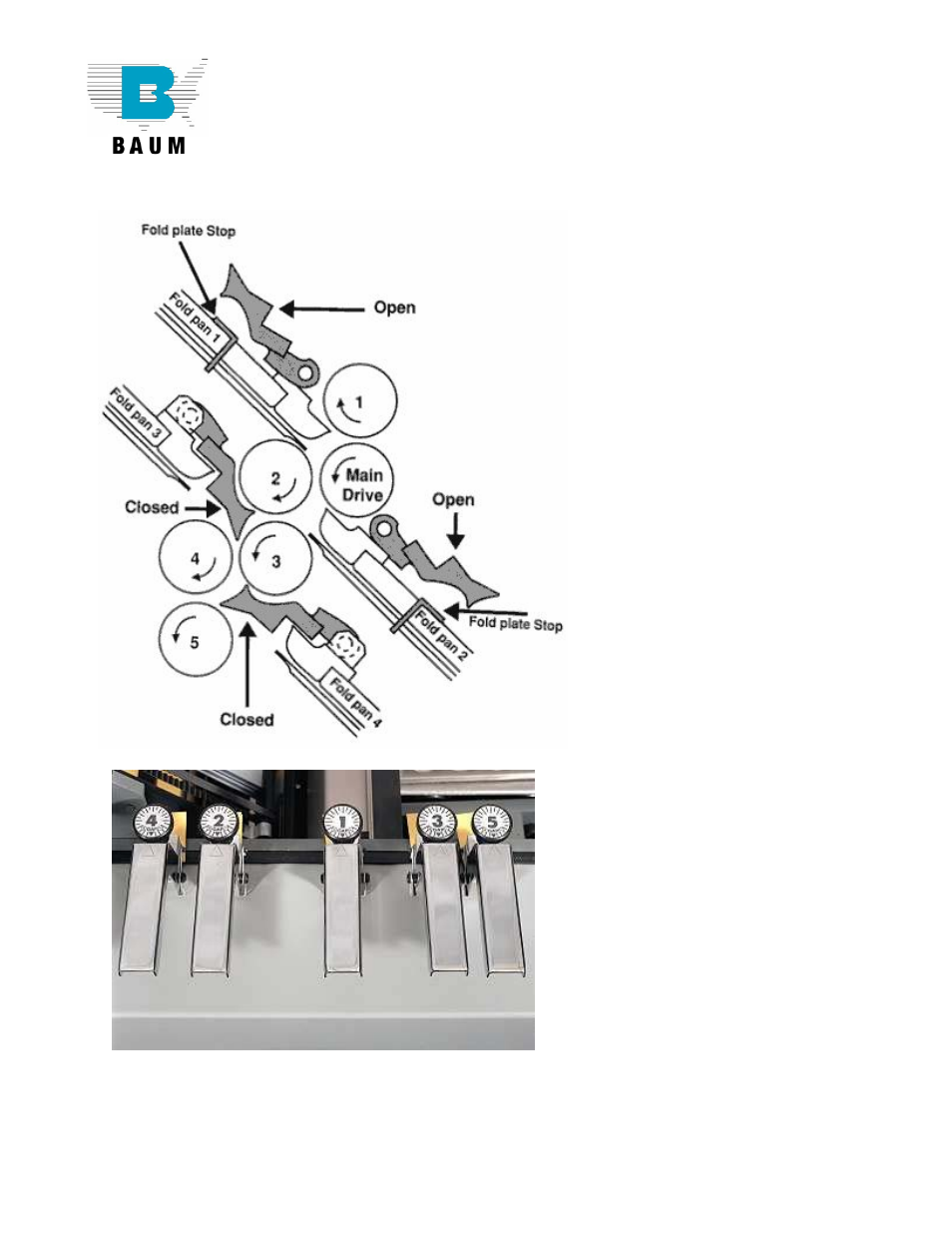

Reference pictures for the roll positions outlined in the common impositions, as well
as the gapset positions.
This diagram shows the relative
positions of the five rolls and the
associated fold plates. In this
example the fold will occur in plates
one and two, and plates three and
four are deflecting the paper.
This picture shows the gapset
assemblies that are referenced in the
imposition setup instructions.
