PAGE 31 TP10495A

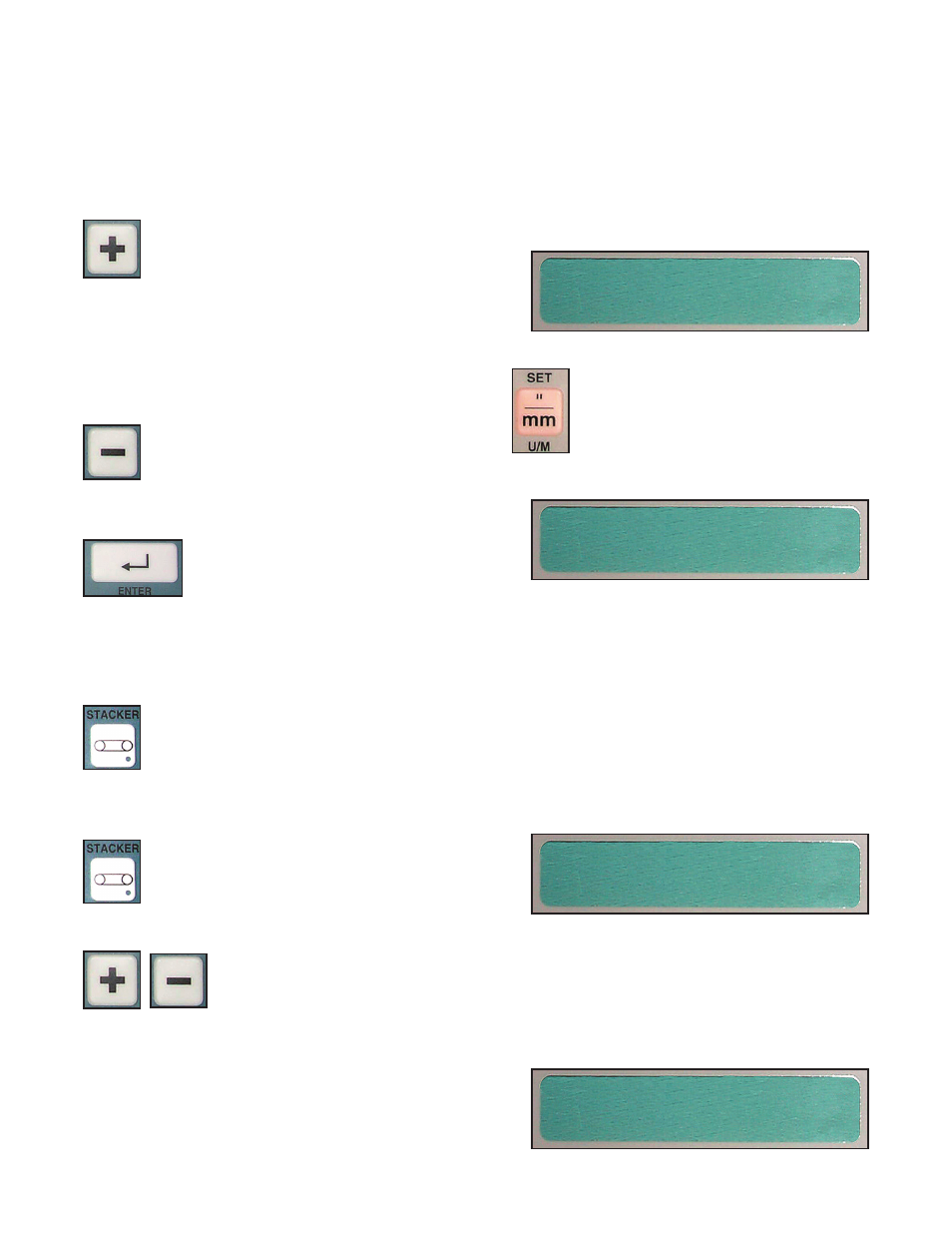

Pressing the “+” button once will increment the plate
stop 0.25mm. Holding it down for more than 2 seconds
will increment the plate stop continuously at slow speed.
Holding the “+” button down for more than 5 seconds will
increment the plate stop continuously at high speed until you
release the button or the plate stop hits the home position
switch.
Pressing the “-” button once will decrement the plate
stop position 0.25mm. Holding it down for more than 2
seconds will decrement the plate stop position at slow speed.
Holding the “-” button down for more than 5 seconds will
decrement the plate stop position at high speed until you
release the button, or the plate stop hits the deflect position
switch.
Pressing the “ENTER” button will return you to
normal operation.
11.5 Stacker wheels
The stacker wheels can be set at any time from the
operating mode by pressing the “STACKER” button.
For example if you need to make an adjustment to
the stacker wheels, press the “STACKER” button during
operation.
Next use the “+” and “-” buttons to move the stacker
wheels into position.
Pressing the “+” button will increment the stacker
wheels continuously at slow speed. Holding the “+” button
down for more than 2 seconds will increment the stacker
wheels continuously at high speed until you release the but-
ton, or the stacker wheels reach their outer limit. The system
will track the stacker wheel location and if they reach the
stop, the drive will be disabled and a message will be dis-
NOTE: To change from English to Metric, press the
“U/M” button. Now all the dimensions will
be in metric. The setting will remain until this
procedure is repeated.
NOTE: If a button is not pressed within
2 minutes the machine will return
to the operating mode.
TOTAL COUNT #######
DELIVERY 101.00mm
CHANGE WITH +/-
STACKER WHEELS
AT MAXIMUM LIMIT
DEFLECT POSITION
