PAGE 15 TP10456-EN
A. Pile Height Sensor Sensitvity Adjustment -
This adjustment is made by turning the pot located on
top of the sensor next to the indicator. This will
increase or decrease the sensitivity of the sensor.
Note: Do not turn the pot adjustment past it stops.
Damage to the sensor may result.
B. Pile Height Vertical Location Adjustment -
This adjust can be made by loosening the locking lever
holding the sensor in place. The sensor will now be
free to move vertically in its retainer. Tighten the
locking lever to lock the sensor in place. Only tighten
the locking lever so much that it holds the sensor in
place. Do not over tighten the locking lever, as this
could damage the sensor.
This height is adjusted at the factory so that it
is 1/2” (38.10mm) above the paper stack.
C. Pile Height Sensor Plastic Ring- This
plastic donut prevents the sensor from detecting
objects such as side guides. It may be necessary to
lower or raise this ring by looseing the set screw
holding it in place, depending on the location of the
side guides.

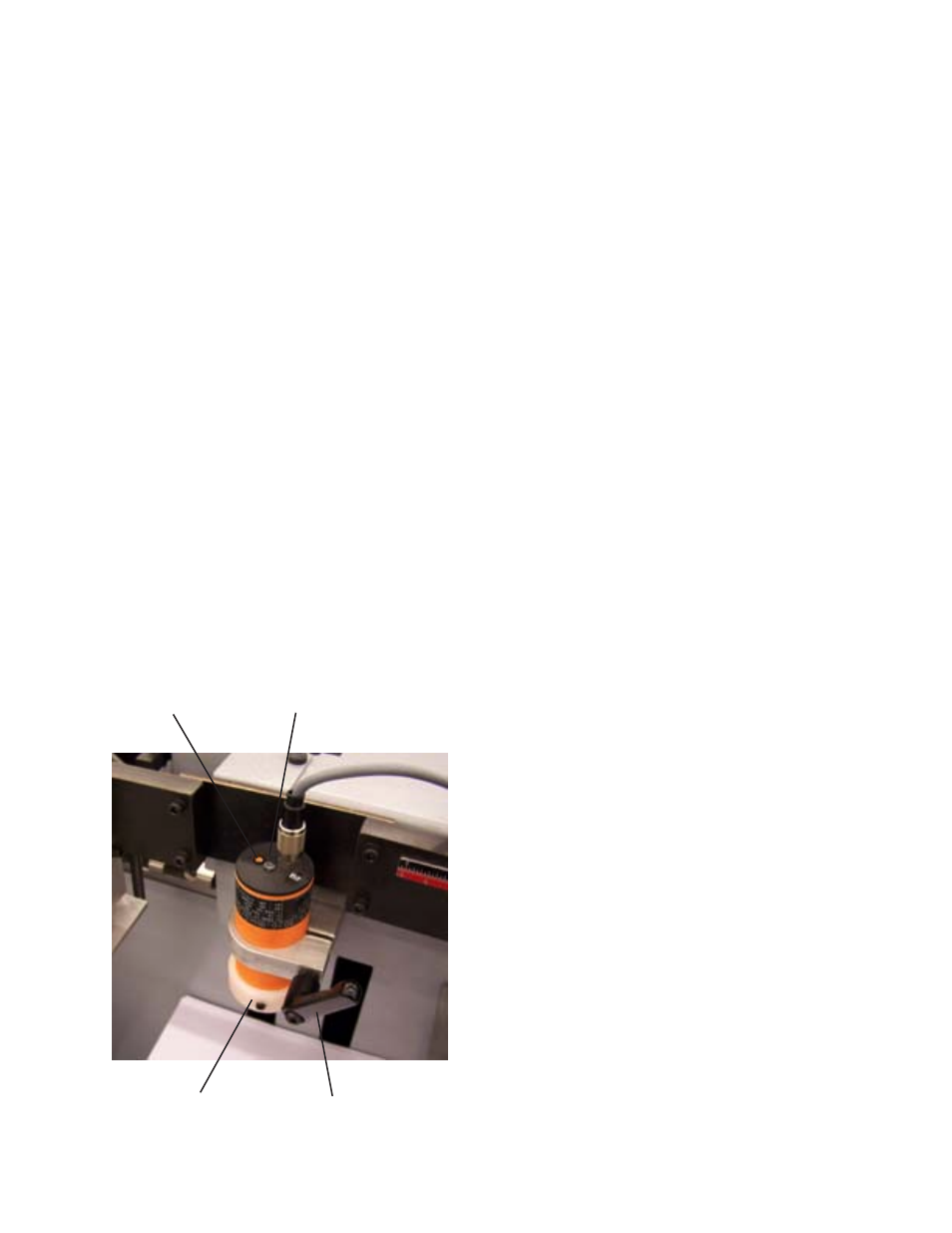

Sensitivity
Adjustment
Plastic Ring Locking Lever
Indicator
