PAGE 23 TP10496

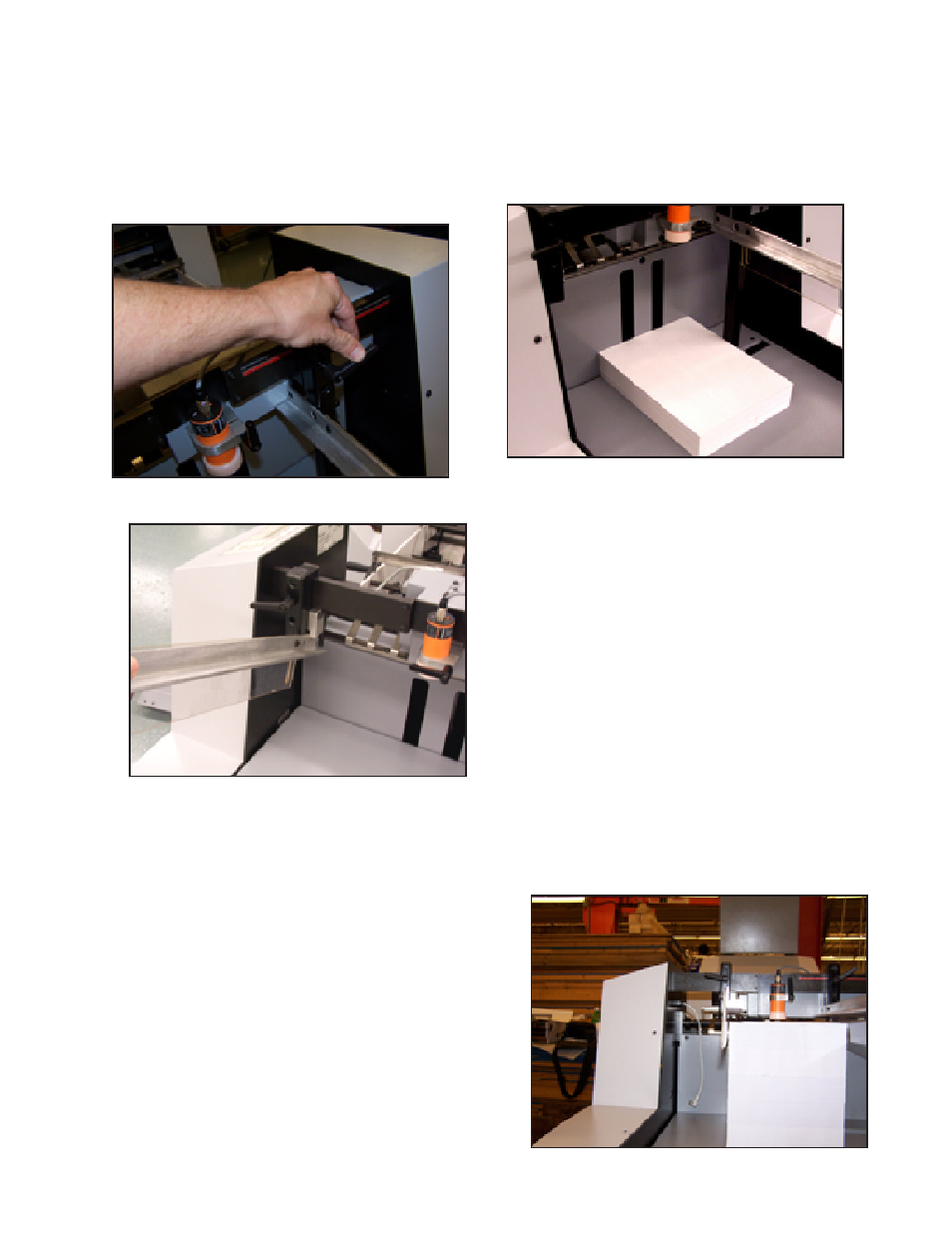

5.0 PILE FEEDER & REGISTER
SETUP
1. Set the right hand-side guide to half the
sheet width using the scale located on the side
guide support bar. Lock the side guide in place
using the lock lever.
2. Remove the left hand side guide from
feeder.
4. Press the Table Down Key on the
operator panel, the Pile Feeder Table will travel
downwards until it passes the Ergonomic Pile
Reload Sensor.
5. Load the paper onto the feed table,
using the spreader plate and right hand side
guide as stops. As paper is loaded onto the Pile
Feeder Table, the Ergonomic Sensor will sense
the paper as it is added, and will lower the table
automatically until it does not sense the paper
stack. This will result in the constant loading of
the paper stack at the same height on the feeder.
The Feed Table will lower until the Lower Limit
Switch is reached. You may continue to load the
feed table after the table has reached the lower
limit
switch. It is recommended that there be at least a
1.00-1.25 inch (25.40 - 31.75mm) gap between
the bottom of the sucker wheel and the paper
stack. This will allow the Pile Height Sensor to
control the necessary 1/2 inch (12.70mm) gap.
7. Raise the table by pressing the Table Up
Key, on the operator panel. In order for the feed
table to move upwards, the Table Up Key must
be continuously pressed. If you stop pressing the
Table Up Key, the feed table will stop. Continue
pressing the Table Up Key until the Pile Height
Sensor stops the upward travel of the feed table.
During operation, the top of the paper stack shall
remain 1/2” (12.70mm) below the sucker wheel
and 5/8” (15.88mm) below the lower surface of
the pile height sensor.
8. Reinstall and adjust the left hand
side guide so that there is a maximum of 1/16”
(1.50mm) gap between the plastic side guide and
the paper stack. This will prevent the side guides
from being to tight against the paper stack. If the
side guides are allowed to become to tight against
the paper stack, this may effect the feeding of the
paper.
