TP10496 PAGE 22

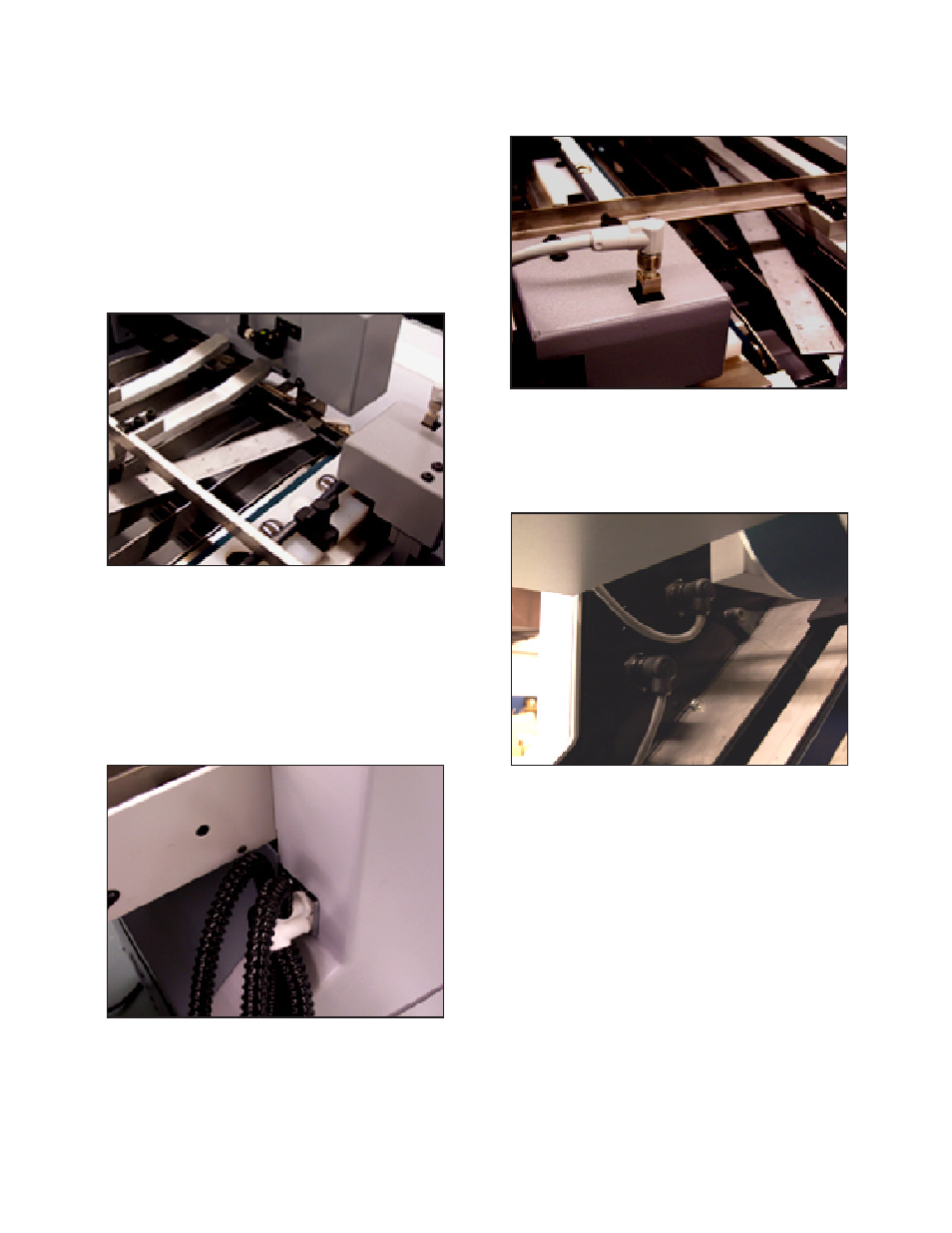

5. Check height of feeder in relationship to
register by placing a 1mm thick (approx.) object
that will sit on top of register ribs without being
held. A common 12 inch scale placed at an angle
on top of the register ribs is a good example of
what to use. The top surface of the 1mm thick
object should be in line with the top surface of
rake plate fingers on the pile feeder. Adjust casters
on pile feeder accordingly to achieve this height
relationship between the pile feeder and register.
6. Level the feeder by adjusting casters on
pile feeder accordingly. Once pile feeder has been
leveled, lock the height adjustment in place by
locking the nuts on the casters down on the feeder
tie bars.
7. Hook up air blow and vacuum hoses
on feeder to corresponding holes on 1st station
8. Connect double sheet detector cable on
pile feeder to double sheet detector on register.
9. Connect communication cable on pile
feeder to connector on 1st station folding unit. The
connector on 1st station folding unit is the same
(9) pin connector used for connecting the short pile
feeder table.
10. The pile feeder is designed to provide
electrical power to both the 1st and 2nd station
folding units. The receptacles for the 1st and 2nd
station folding units are located on the operator
side guard. Plug the 1st and 2nd station folding
units into the receptacles provided on the pile
feeder.
11. Plug the pile feeder into the proper type
and size of wall receptacle. Refer to page #9 of
this manual for electrical requirements.
