2.0 INTRODUCTION
The Flexifold Pile Feeder is a modular
addition to the Flexifold Folding System. This
feeder has these features that adds value to the
folding system.
- Higher load capacity - 18 inch (45.8cm)
stack
- Register - aligns the paper prior to
folding for improved folding accuracy.
- Gap size - allows for larger gaps between
sheets, allowing for better folding on
some fold configurations
- Sheet counter
- Batch counter
- Speed slaved to the first folding station
- Single sheet operating mode for ease of
set up
- Ability to vary sheet gap
- Pile table reload position at a constant
height
- Jam or not running inhibit from first fold
station (parallel)
3.0 SPECIFICATIONS
Model Name Flexifold Pile Feeder
Minimum Sheet Size 4x6” (10.2 x 15.2cm)
Maximum Sheet Size 14 x 20” (35.5 x 50.8cm)
Maximum Paper Weight 65 lb Cover
Maximum Stack Height 18” (45.7cm)
Overall Dimensions
Height 42.5” (108cm)
Width 33.1” (84.0cm)
Length 51.2” (130.0cm)
Operating Voltage 230VAC/1PH/50Hz
115VAC/1PH/60Hz
Supplied Power 230VAC/1PH/50Hz/25AMPS
115VAC/1PH/60Hz/25AMPS
Mating Connector 230VAC
- CEE7
115VAC - NEMA5-30R
4.0 PILE FEEDER & REGISTER
INSTALLATION INSTRUCTIONS

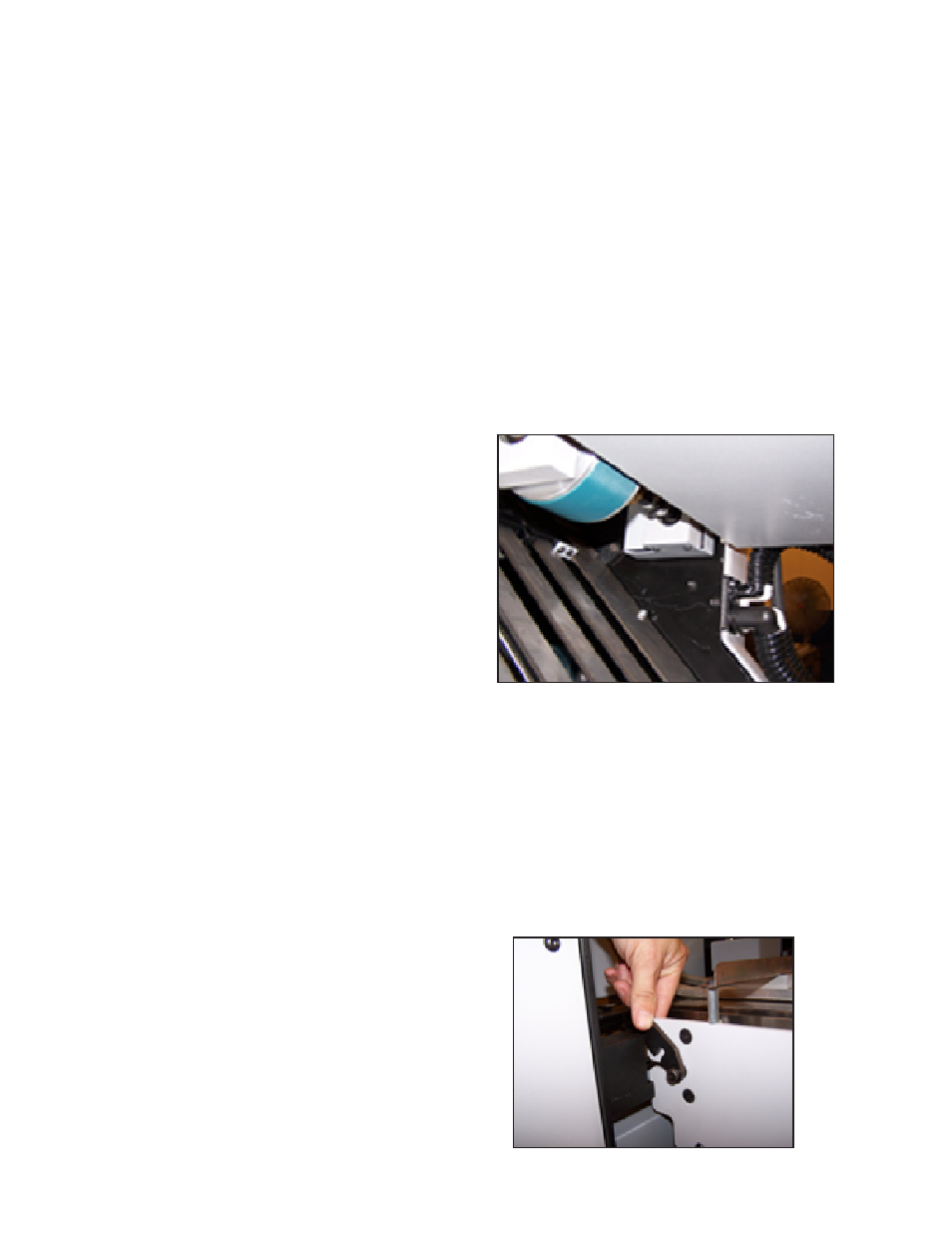

1. If applicable, remove existing short
pile feeder from parallel folding unit. Be sure to
disconnect both hoses.
2. Register will drop directly into parallel
folding unit by aligning the four locating slots in
the register side frames with four locating pins in
the parallel unit.
3. Install register drive guard onto register
drive gear block after register has been installed on
parallel folding unit.
4. Roll pile feeder unit to register. There is
one locating block w/pin on each side of feeder.
There is also one locating slot in each register
side frame for locating pins in blocks on feeder.
Register side frames should fit in between locating
blocks on feeder. Pile feeder has four height
adjustable casters, adjust these up and/or down
until locating pins on pile feeder slide into slots on
register side frames. Now lock feeder into place by
rotating locking pawls on register frames over pins
in locating blocks on pile feeder.
