Baumfolder BAUM20: 20 Kicker Assembly Installation - Manual (Page 6)

TP10324A PAGE 6
CKT NO. COLOR FROM TO
5 BL A20-X1-2 A1-2X25-4
6 BL A20-X1-1 A1-2X25-3
1 BK A20-X2-1 TB1-1
15 BK A20-X2-2 TB1-15
GND GR/Y A20-X2-3 TB1-PE
GND GR/Y A20-X3-1 TB1-PE
98 BK A20-X3-2 K3-4
99 BK A20-X3-3 K3-1
96 BL A20-X1-3 A1-2X25-5
97 BL A20-X1-4 A1-2X25-6
100 BL A20-X4-1 TB1-100
101 BL A20-X4-2 TB1-101
102 BL A20-X4-3 TB1-102
103 BL A20-X4-4 TB1-103

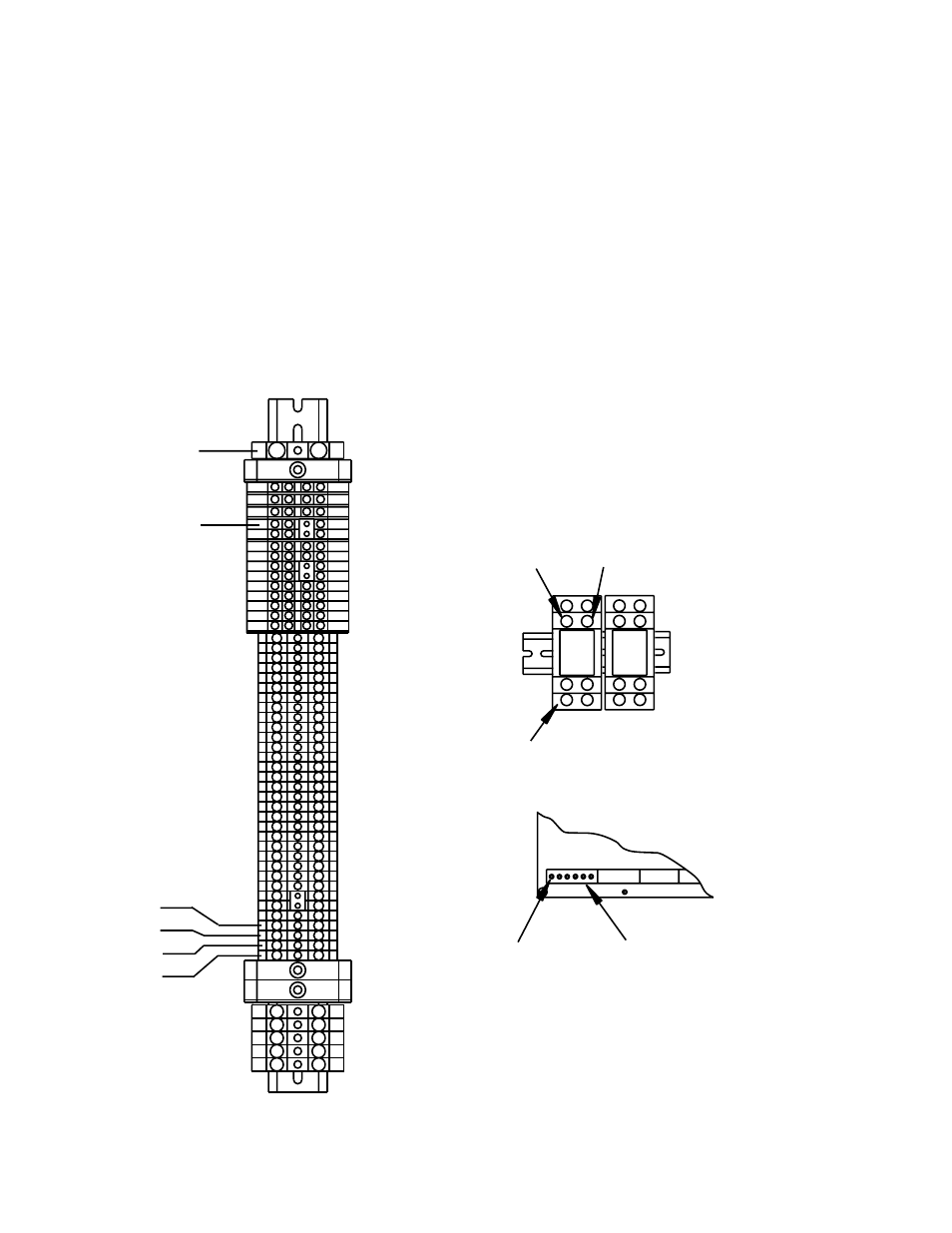

Figure 6
Pin 1 A1-2x25
K3
Pin 1 Pin 4
F15
F16
TB1-103
TB1-102
TB1-101
TB1-100
TB1-PE
F17
TB1-1
