PAGE 5 TP10324A

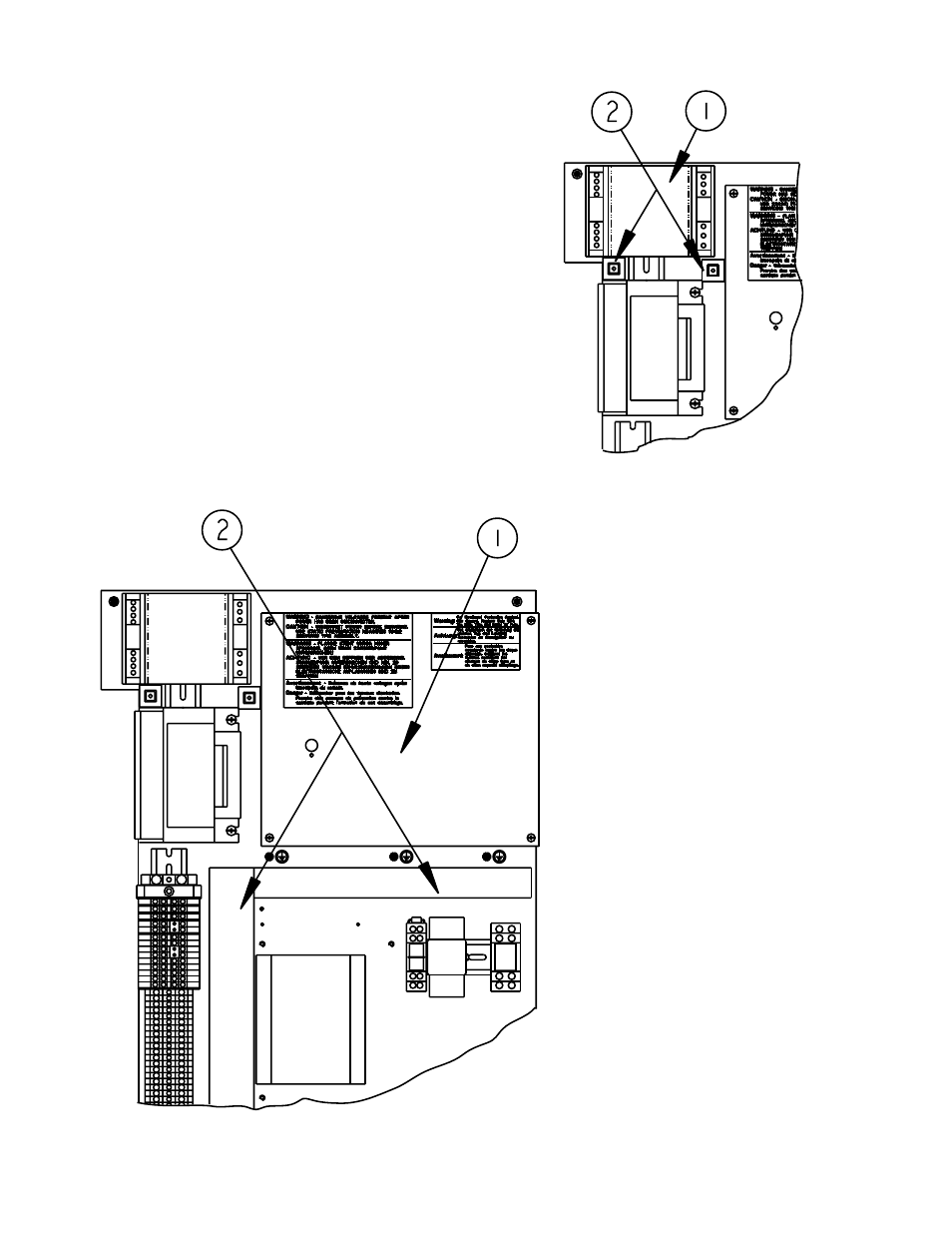

Figure 4
Install the kicker module, A20(Figure 4-1), on the DIN rail
in the upper left corner of the main electrical enclosure, as
shown. Place the two cable tie anchors in the approxi-
mate location show in Figure 4-2.
Remove the protective plexiglass cover(Figure 5-1) that
covers the main circuit board. Also remove the two
wireway covers(Figure 5-2).
Install the wires from the kicker module, A20, per the
wiring instructions of Figure 6. After installation of wires,
replace plexiglass cover and two wireway covers. Cable
tie wire bundle to anchors and cable tie the rest of new
wiring to existing wires.
Close main electrical enclosure and reapply power to the
folder.
Figure 5
