1.0 KIT INSTALLATION
Note:
This Feature is applicable only on Folders with
the DCT500 Controller Installed.
CAUTION
ELECTRICAL SHOCK HAZARD PRESENT.
THIS KIT SHOULD ONLY BE INSTALLED
BY QUALFIED PERSONNEL.
Remove electrical power from the folder at the main
circuit breaker panel. This will ensure that the installer
will not come into contact with the main power leads at
the folder disconnect switch.
If the kicker device is not assembled to the bracket, do so
with the supplied hardware per drawing TP220-889-02-00
of this manual.
Install the assembled kicker device(Figure 1-1) on the
square slitter shaft accessory spreader bar(Figure 1-2).
The location of the kicker unit is dependent on the type
and size of fold that is being made.

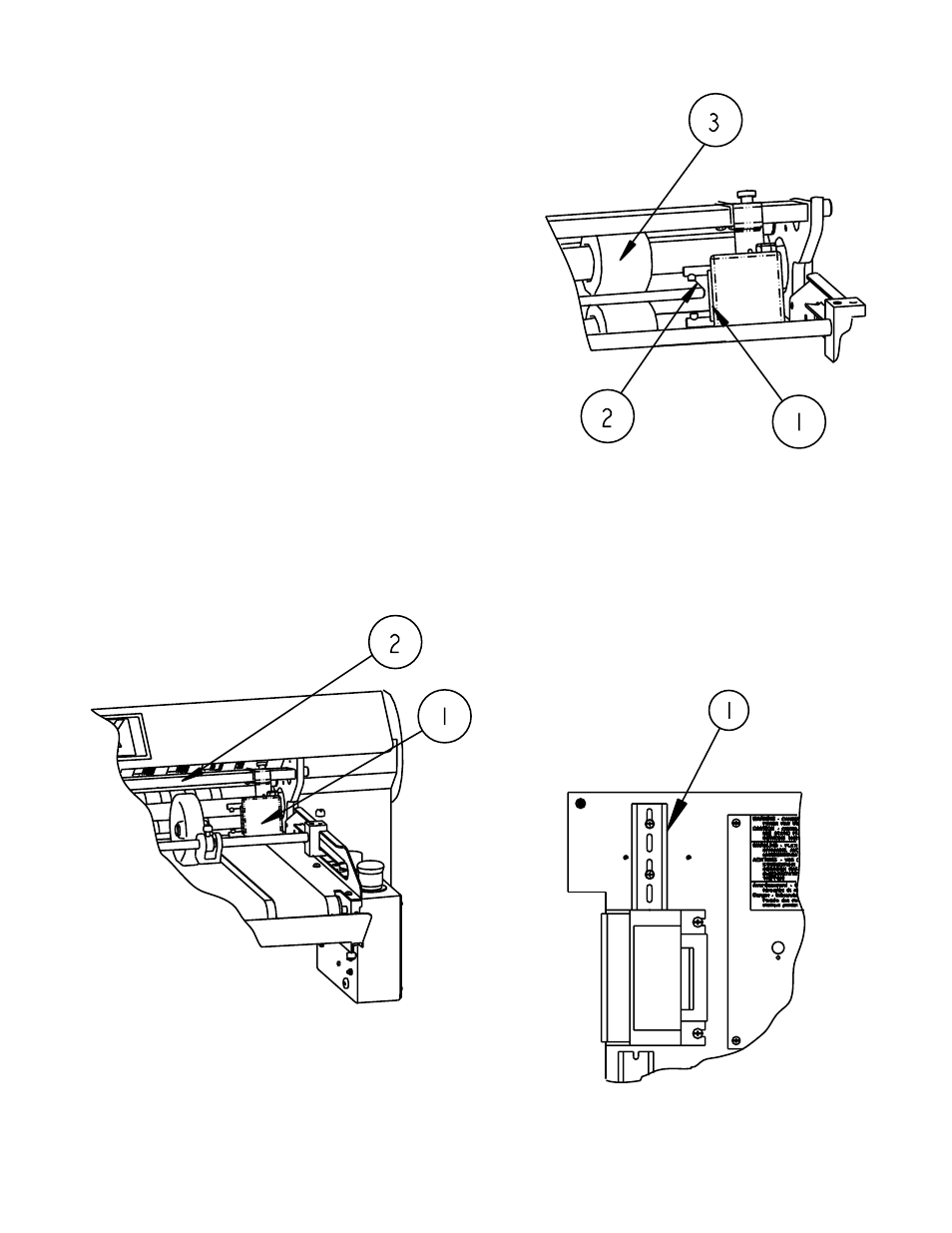

Figure 1
The location of the kicker unit, along the tie bar, is set so
that the striker plate(Figure 2-1) of the plunger is
approximately 1/8” from the right edge of the
stock(Figure 2-2) as it exits the slitter assembly pullout
tires(Figure 2-3).
Figure 2
After locating the kicker unit, plug the connector into the
1X12 connector located on the side of the main control
panel.
Open the door of the main control panel and find the DIN
rail located in the upper left hand corner above the blue
power transformer. Remove the hardware that attaches
the rail to the box and rotate the rail 90 degrees(Figure 3-
1).
Figure 3
