46
The socket panel
The socket panel on your television
allows you to connect signal input
cables as well as a variety of extra
equipment, such as a video tape
recorder or a linked Bang & Olufsen
music system.
The V.TAPE and AV sockets are
available for connection of extra
equipment.
Any equipment you connect to these
sockets must be registered in the
CONNECTIONS menu. For further
information, refer to the chapter
’Register extra equipment before
auto-tuning’ on page 31.

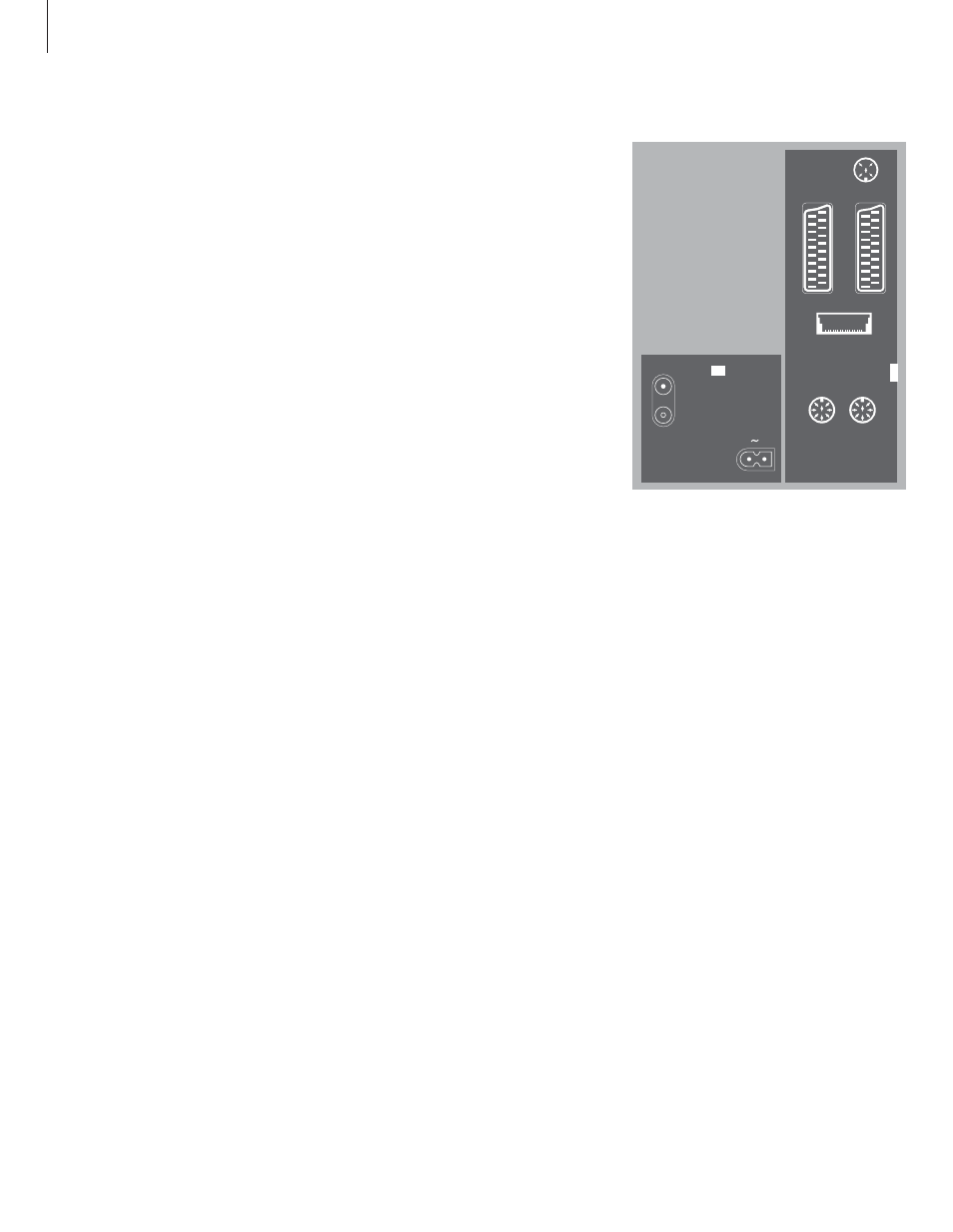

AV and aerial socket panel
V.TAPE
21-pin socket for the connection of a BeoCord
V 8000 video tape recorder, a set-top box, a
primary decoder or another video tape
recorder. You can also connect other types of
extra equipment.
AV
21-pin socket for the AV connection of other
equipment, such as a DVD player, a set-top
box or a second decoder.
The socket may be used for an AV 2 Expander
instead, which gives the opportunity to
connect a decoder or other non-Bang &
Olufsen video equipment at the same time.
STAND
For connection of a motorised wall bracket.
MASTER LINK
Socket for connection of a compatible Bang &
Olufsen music system. This socket is only
functional if your television is equipped with
the Master Link module.
The socket is also used for BeoLink
distribution of sound throughout the house.
LINK TV
Aerial output socket for distribution of video
signals to other rooms. Only available if your
television is equipped with the built-in system
modulator.
TV
Aerial input socket from your external aerial
or cable TV network. If your television is
equipped with the built-in system modulator,
connect your external aerial to the socket
marked LINK TV.
POWER LINK
For connection of external Bang & Olufsen
loudspeakers.
IR-OUT
For connection of a set-top box.
~
Connection to the mains.
STAND
V. TAPE
MASTER LINK
POWER LINK
LINK
TV IR
OUT
AV
TV
