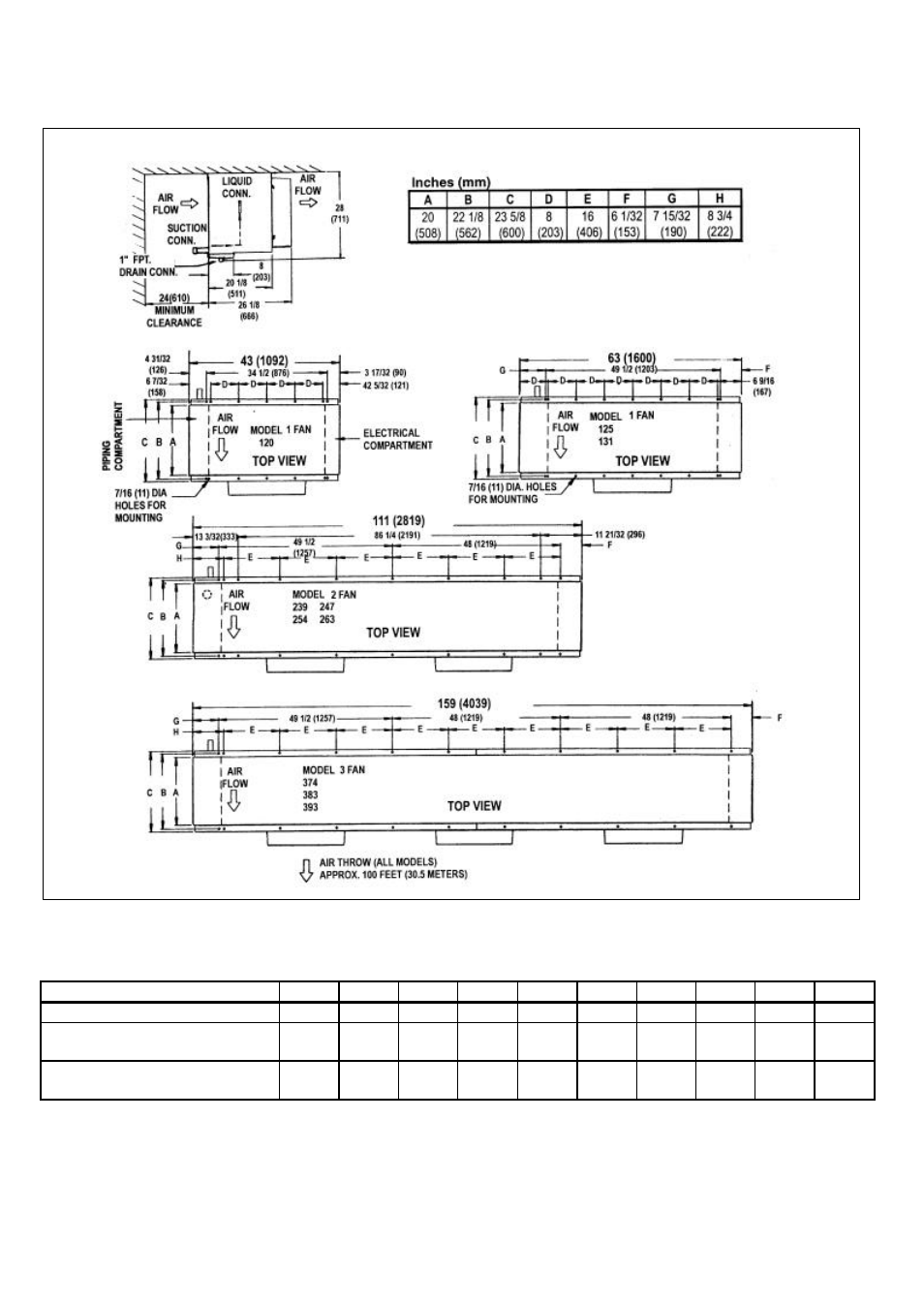

DIMENSIONAL DATA
DIMENSIONAL DATA
INCHES (MILLIMETRES)
High Temp Air Defrost Model: 120 125 131 239 247 254 263 374 383 393
Number of Fans 1 1 1 2 2 2 2 3 3 3
Liquid Connection (O.D. Sweat) 5/8
(16)
5/8
(16)
5/8
(16)
5/8
(16)
7/8
(22)
7/8
(22)
7/8
(22)
7/8
(22)
7/8
(22)
7/8
(22)
Suction Connection (O.D. Sweat) 7/8
(22)
1 1/8
(29)
1 1/8
(29)
1 3/8
(35)
1 3/8
(35)
1 5/8
(41)
1 5/8
(41)
1 5/8
(41)
1 5/8
(41)
2 1/8
(54)
