10 IM-268S-11 2013 © Bally Refrigerated Boxes, Inc.
Replacing Door Closer
A. Position a putty knife against the base of the bottom of the closer cover to protect the door surface as
shown. See figure 17. Pry open the cover using a small flat bladed screw driver. The closer cover is
friction fit onto its base and will pry out and upward away from the door.
B. Remove all mounting screws from the closer base on the door and from the “J” hook mounted on the
door frame.
C. Install new closer and “J” hook onto door and frame using the existing holes. If for any reason the
existing holes do not line up with the holes in the new closer you will be required to drill and tap the
door at the location of the holes for the new closer mounting base. Once firmly secured, rotate the
cover back down over the base and snap into place.
D. Adjust the “J” hook, if required, to align the rubber wheel of the closer with the tip of the hook. When
properly aligned the tip of the hook should touch the top of the rubber wheel as the wheel passed into
the hook.

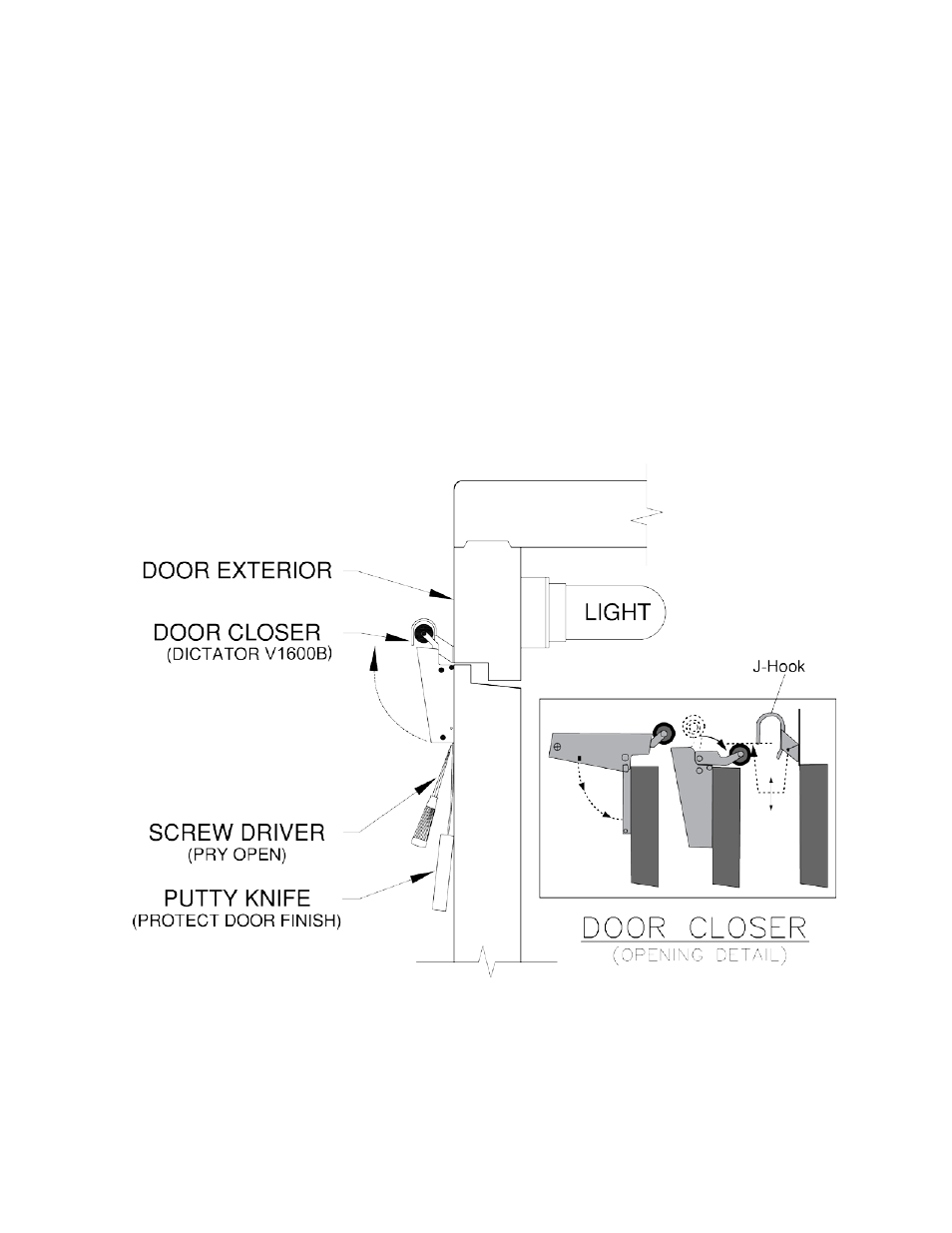

Figure 17
Part Number: #031349 – Dictator Hydraulic Door Closer V1600B
