Balboa Menu Panel ADCM Hub System Installation
Description: The Balboa Menu Panel ADCM Hub System is the interface
between the EL/GL Spa Control and Balboa’s Menu Panels.

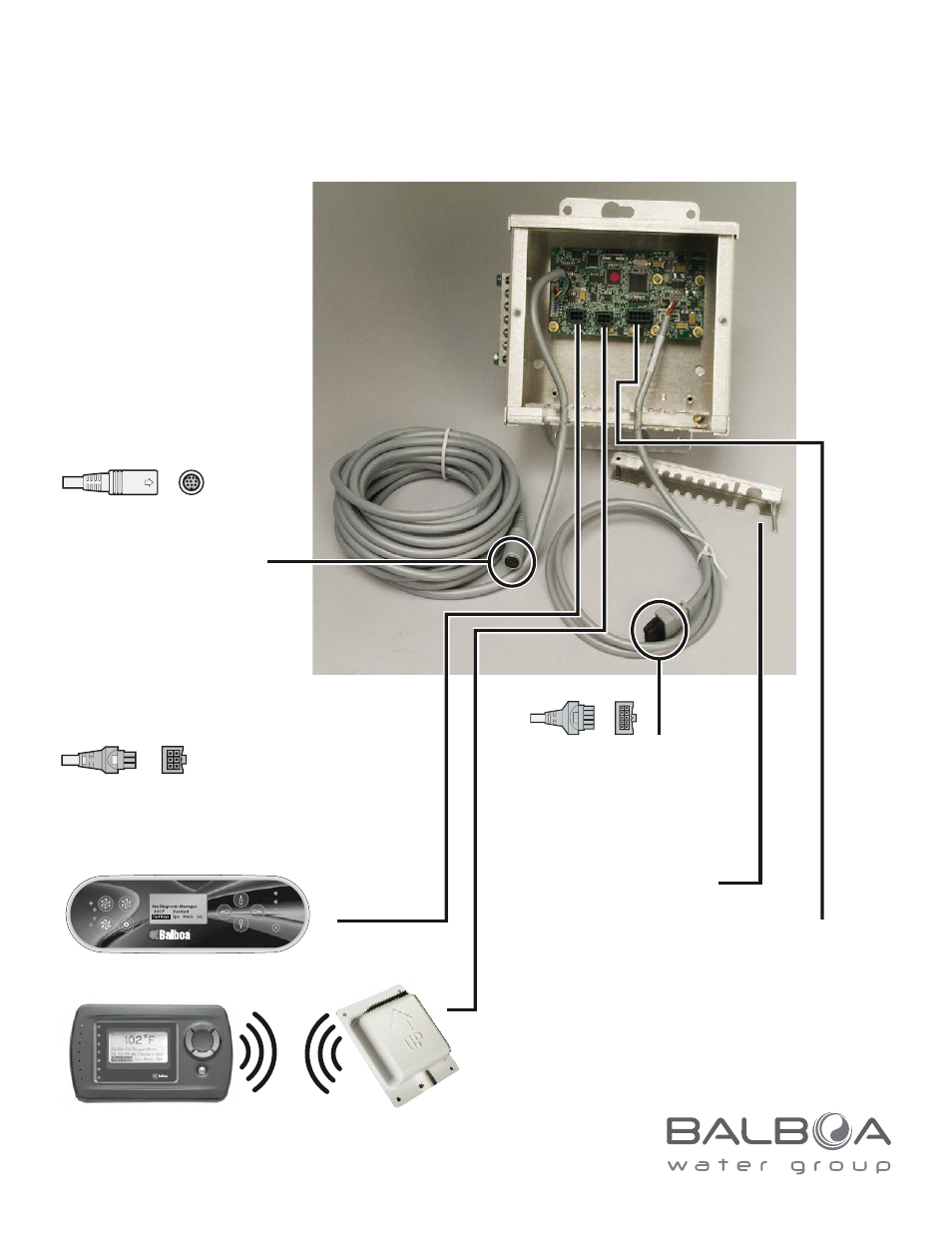

Mount the ADCM Hub System
box to a firm surface in the
equipment bay and connect
wires as described below.
Connect to Jensen Stereo Remote
Connection on Stereo unit.
Y-Cable 25482 must be added in
order to utilize a Dolphin Remote
for Stereo Control along with the
Menu Panel(s).
Connections (J9 & J10) are interchangeable
between the Spa Side Menu Panel and the
transceiver for the In-home Panel.
Connect to ADCM Port J69
on EL or GL PCBAs Mach 3
or higher.
Replace cable clamp when
all wires are positioned in
separate slots.
When the ADCM Hub System box is connected
to the Spa Control system, use this connector
(J7) for FAST Testing. For firmware updates,
ESM must be plugged directly into the ADCM
port (J69) on the EL/GL system board while the
ADCM Hub System Box is disconnected.
J1
J2
BL
LT
HT
FC
OZ
Enter
Jets 2 Jets 1
Light Blower
102º F
(cont’d on reverse side)
