7
3. CABLE CONNECTION
3.3. Before Connecting
Before connecting your monitor to the computer, change the display screen settings
(Resolution and frequency) in accordance with the charts below.
Note:
-
The lower display modes like 640x 480, automatically enlarge to the maximum
display mode (1920x 1080), and some lines of the characters may become fuzzy.
-
When your computer and display support VESA DDC, the suitable resolution and the
refresh rate are set by just plugging your display into the computer without any
manual settings.
The monitor supports the following resolutions.

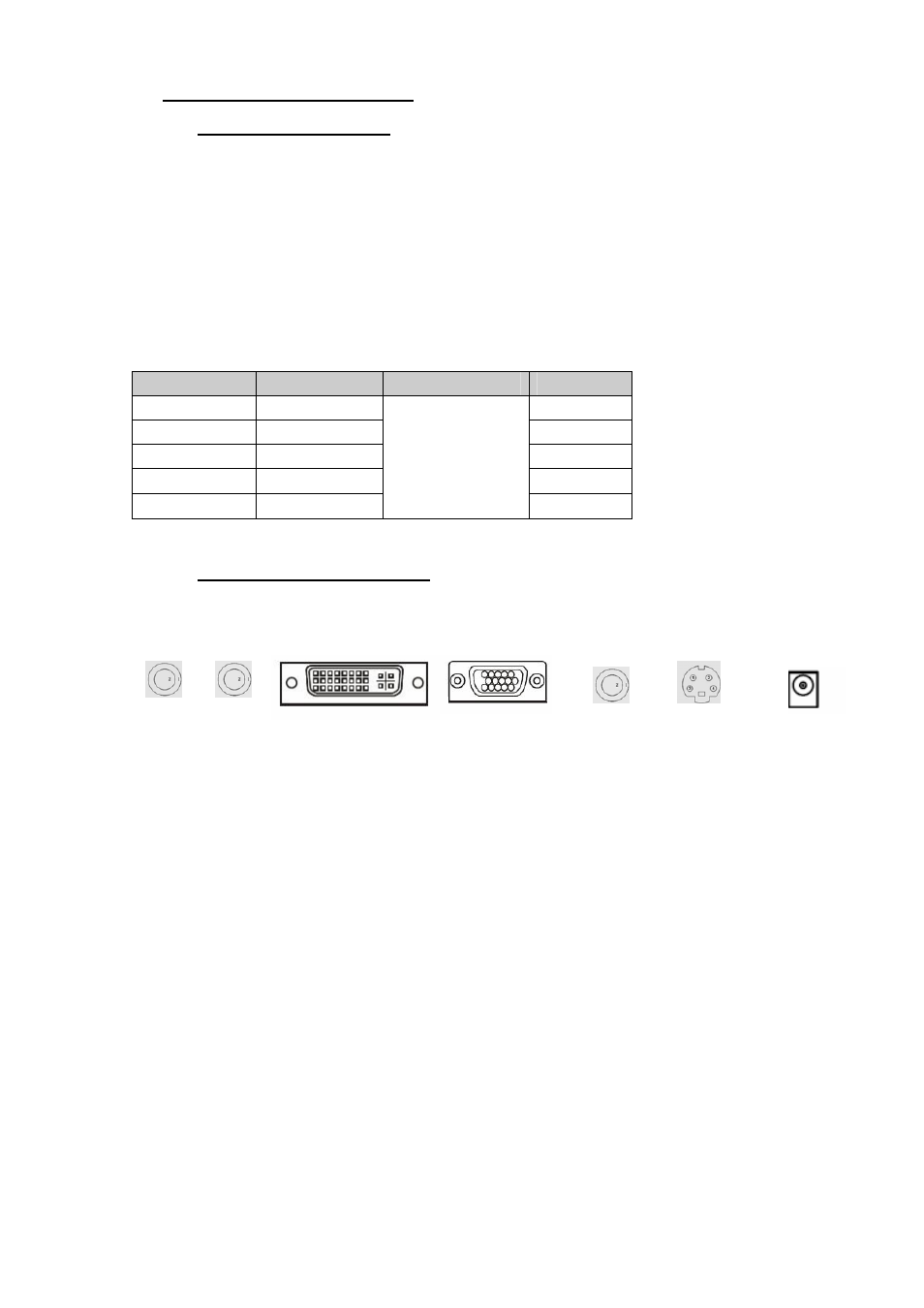

3.4. Connecting the Cables
Note: Be sure that the power switches of both the computer and the monitor are OFF.
SDI-IN SDI-OUT DVI D-sub CVBS S-VIDEO DCIN
Power cable connection:
Connect the power cord to the AC outlet, and connect the power to the adapter
DVI cable connection (Optional):
Plug the DVI signal cable to the DVI connector in the rear of the PC system, and plug
the other end to the monitor. Secure cable connectors with screws.
VGA cable connection:
Plug 15-pin VGA signal cable to the VGA connector in the rear of the PC system, and
plug the other end to the monitor. Secure cable connectors with screws.
SDI cable connection:
Plug the BNC signal cable into the connector(SDI) at the rear of the monitor and the
other end of the cable into the connector on the Signal Source. After connecting,
secure the connection with the screw-in fasteners.
S-VIDEO cable connection:
Plug the S-VIDEO signal cable into the connector at the rear of the monitor and the
other end of the cable into the connector on the Signal Source. After connecting,
secure the connection with the screw-in fasteners.
Resolution Refresh rate Dot Frequency Remark
640 x 480 60Hz VGA
800 x 600 60Hz VESA
1024 x 768 60Hz VESA
1280 x 1024 60Hz VESA
1920 x 1080 60Hz
173.000MHZ
（ Max）
VESA
