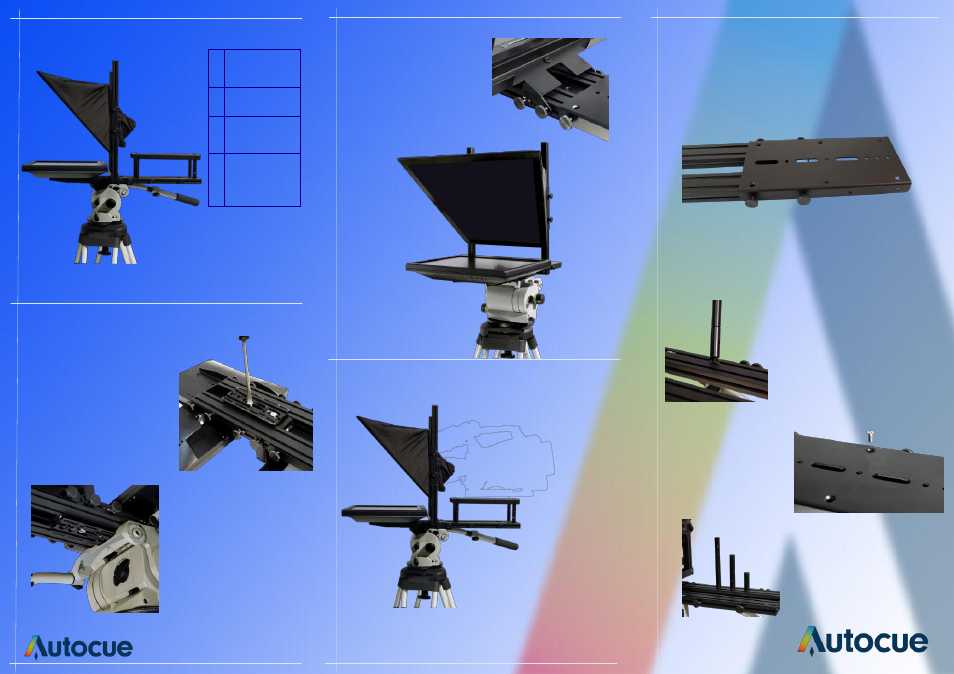

Assembly
1. Fix the hot shoe from your
tripod to the underside of the
mounting plate. Slide the hot
shoe to the approximate
position and tighten the
screws.
Components
A
Hood and
Glass
B
Monitor
C
Mounting
Plate
D
Hood
Adjustment
D
C
A
B
2. Mount the unit on the
tripod and raise the hood
to the upright position
3. Lock the hood into
position by tightening
the four thumb screws.
Mounting the Camera
1. It is important that the camera
lens is in the centre of the
aperture at the rear of the hood.
This is achieved by raising and
lowering the camera mounting
plate and hood.
2. For larger cameras the mounting plate may need
extending. Loosen the four thumb screws on the
camera plate and remove the rear two, the plate
will now slide out. Replace the two rear screws
and tighten them to secure the plate.
3. For smaller cameras the camera plate will need to
be raised. Remove the four thumb screws and then lift
off the plate.
4. Install four camera plate pillars
of the appropriate height.
5. Re-fix the camera
plate using the four
screws provided.
Pillar combinations
6. To achieve the maximum
height, combine the long and
short pillars.
