1/4” BSW

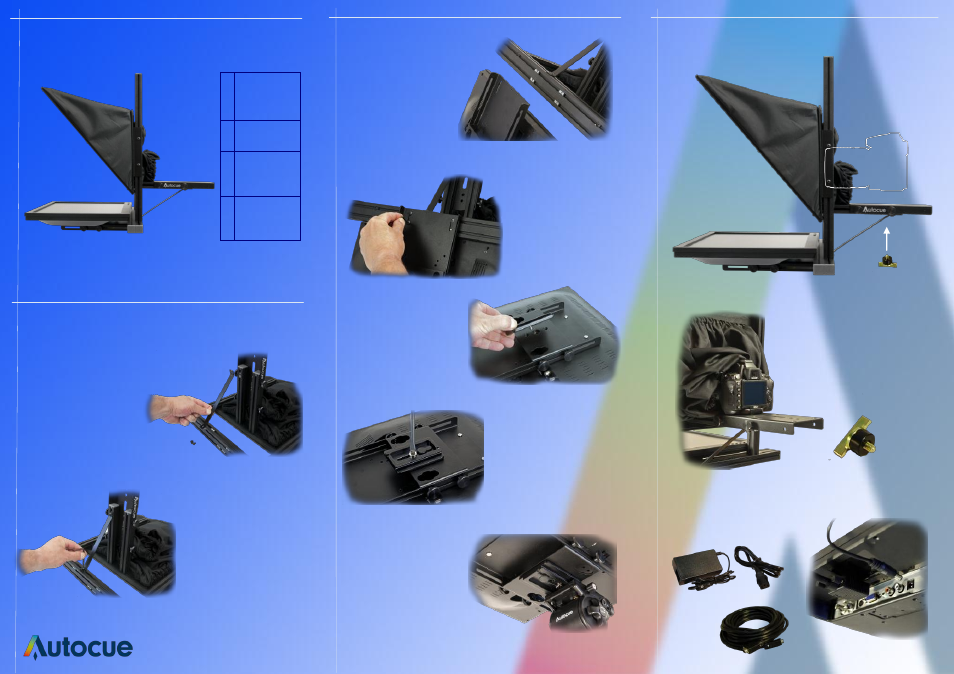

Assembly
A
Hood and
Glass
B
Monitor
C
Mounting
Plate
D
Support
Arm
Components
C
A
B
2. Using the key
provided, secure the
arm to the points shown.
3. Attach the
monitor to the hood
mounting.
1. Fix the arm provided
to the camera mounting
plate and monitor
mounting.
4. Secure the
monitor mounting
plate using the four
screws provided.
5. Fix the hot shoe from
your tripod to the unit.
6. Secure the hot shoe in
place using two screws if
possible.
7. Mount the unit onto
the tripod.
8. Mount your camera
onto the unit.
Camera Fixing
Fix the camera in
place using the cam-
era screw provided.
D
9. Connect the power supply
and the VGA or video cable.
