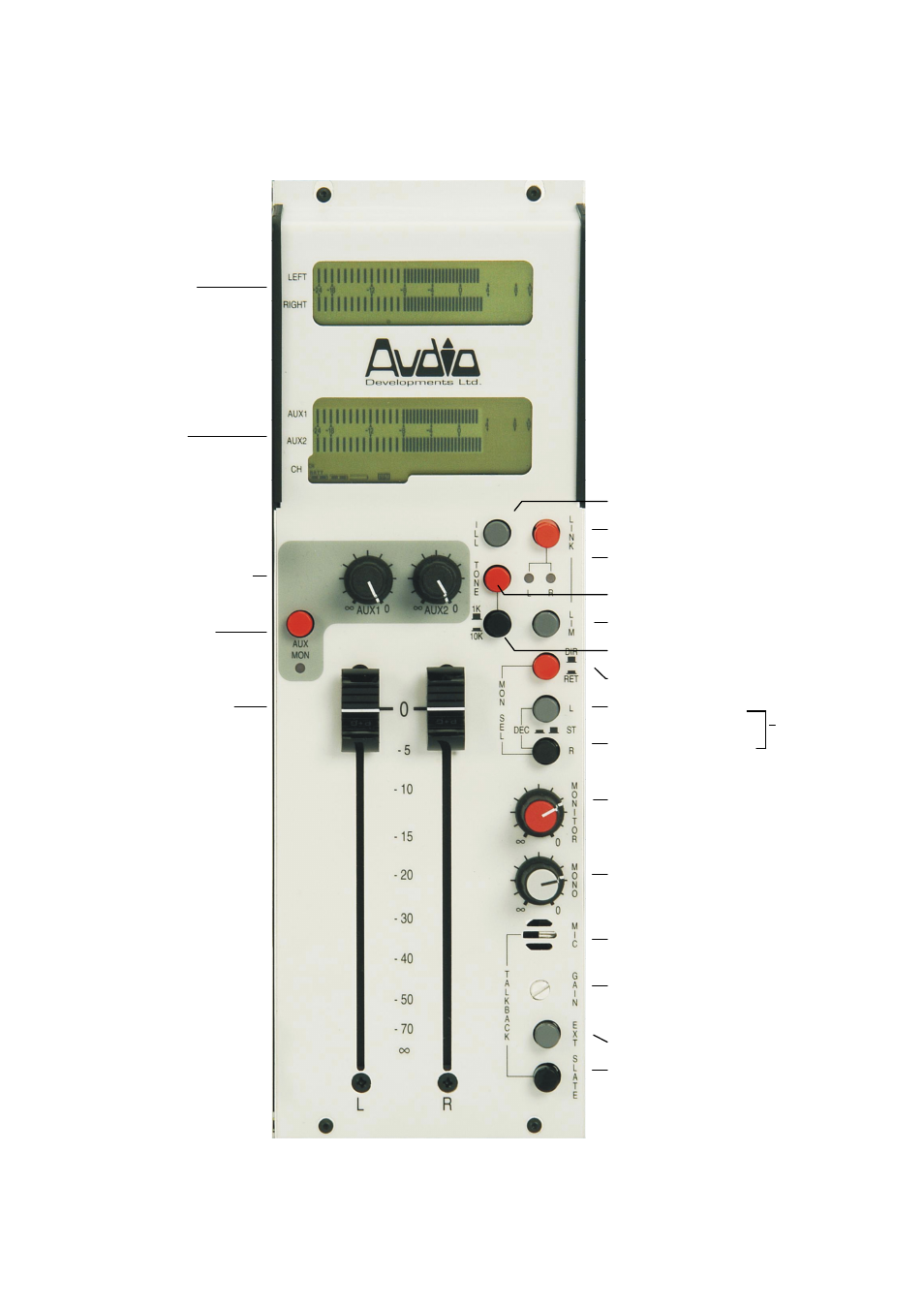

OUTPUT MODULE
(1) Meter 1
(2) Meter 2
(3) Auxiliary master
potentiometers
(4) Auxiliary to
monitor
(7) Limiter link
(8) Limiter LEDs
(9) Line-up tone
(6) Meter illumination
(10) Output limiters
(12) Direct or Return
(11)1kHz or 10kHz
(13) Left only
(14) Right only
Matrix
(15) Monitor output-level
control
(16) Mono output-level
control
(17) Internal microphone
(18) Internal microphone
level-control
(19) Talkback send
(20) Slate
(5) Output faders
