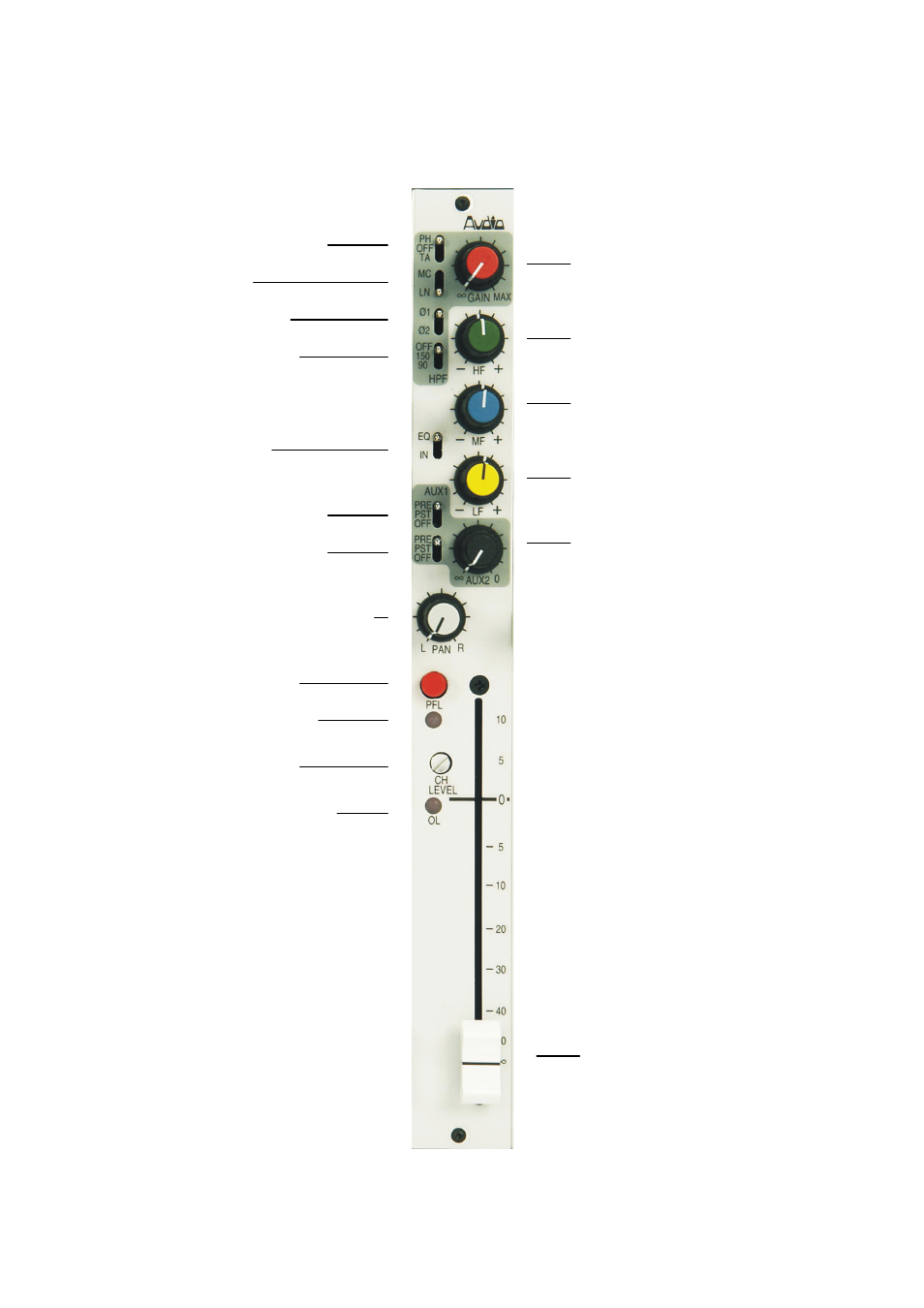

MICROPHONE/LINE INPUT MODULE
(9) Pre-fade listen
(11) Direct out level
control
(12) Overload indicator
(1) Microphone power
(2) Line input
(3) Phase change
(4) High-pass filter
(5) EQ selector
(6) Auxiliary 1 selector
(7) Auxiliary 2 selector
(8) Panoramic potentiometer
(10) PFL indicator LED
(13) Input-gain control
(14) High-frequency control
(15) Mid-frequency control
(16) Low-frequency control
(17) Auxiliary 2 level control
(18) Channel fader
