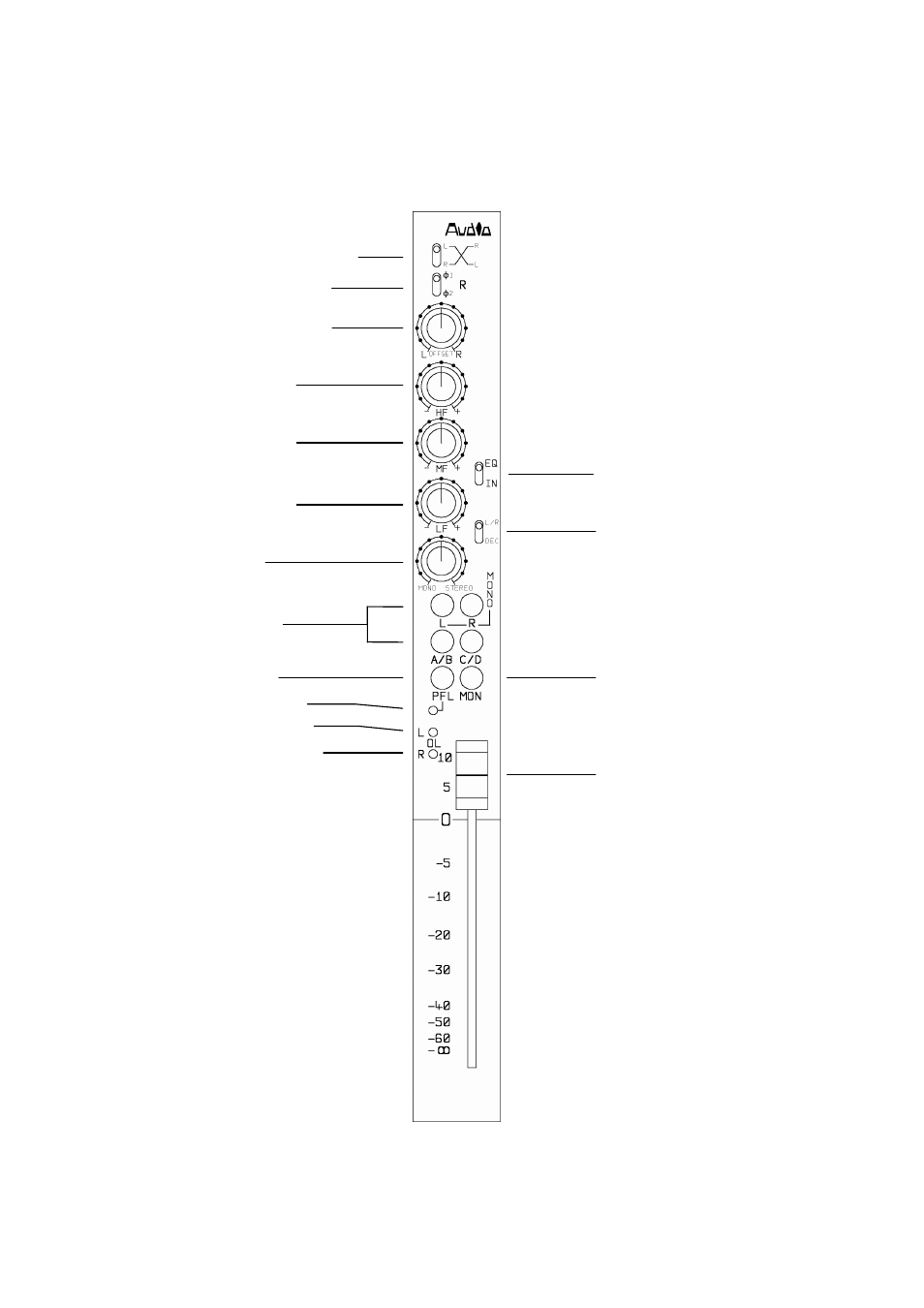

STEREO LINE MODULE
(13) EQ selector
(14) Matrix selector
(16) Channel fader
(15) Routeing to monitor 1
(9) Pre-fader
listen
(10) PFL indicator LED
(11) Overload LED - left
(12) Overload LED - right
(8) L, R, A/B, C/D
routeing switch
(7) Width
control
(6) Low-frequency
amplitude
(5) Mid-frequency
amplitude
control
(4) High-frequency
amplitude
(2) Phase-change
toggle
(1) Input-changeover toggle
(3) Input-balance control
