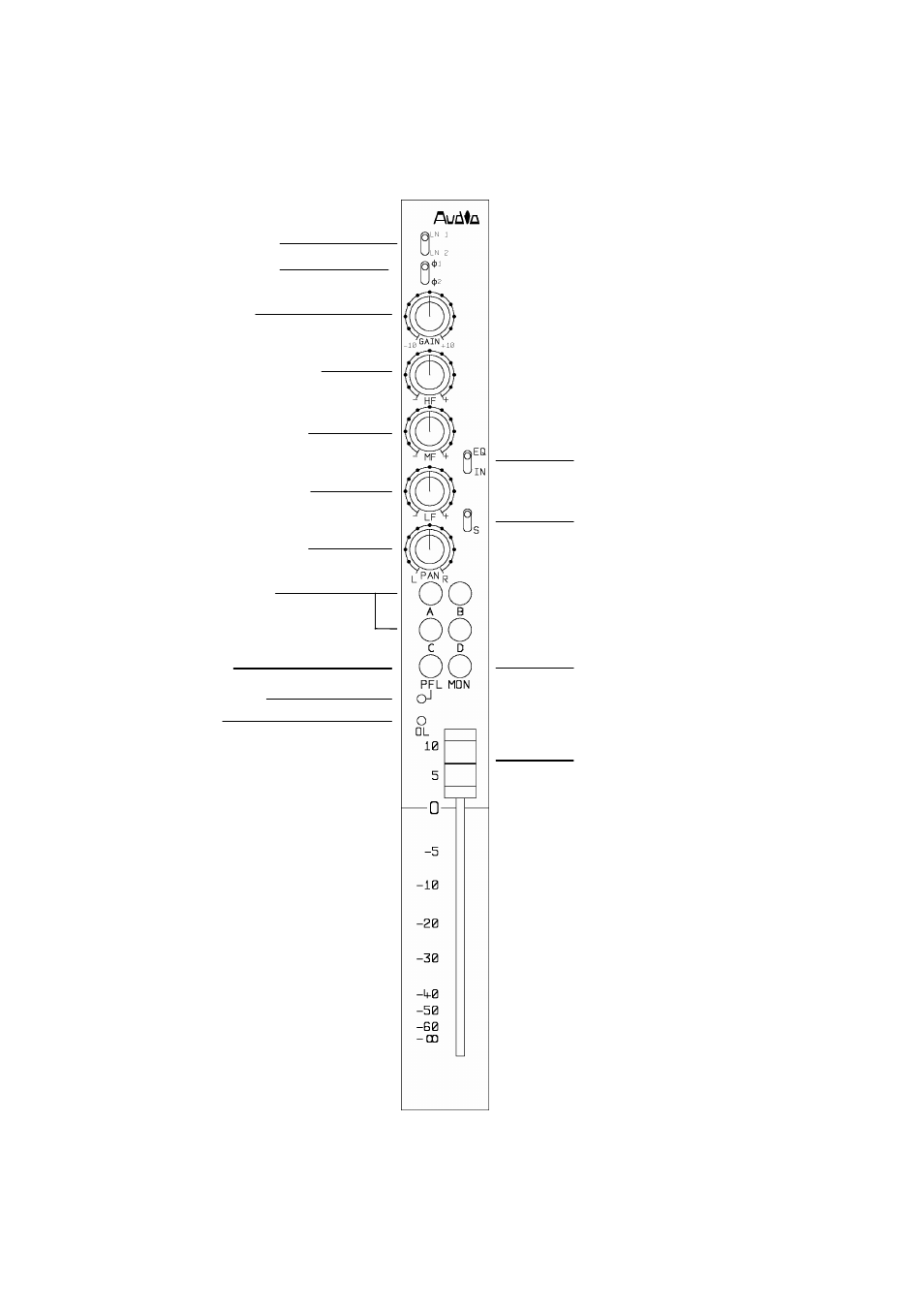

MONO LINE MODULE
(3) Input-gain control
(4) High-frequency amplitude
control
(5) Mid-frequency amplitude
control
(6) Low-frequency amplitude
control
(7) Panoramic
potentiometer
(8) Individual routeing to
A, B, C, D outputs
(9) Pre-fader
listen
(10) PFL indicator LED
(11) Overload
LED
(2) Phase-change toggle
(1) Input selector toggle
(12) EQ selector
(13) Matrix selector
(14) Routeing to monitor 1
(15) Channel fader
