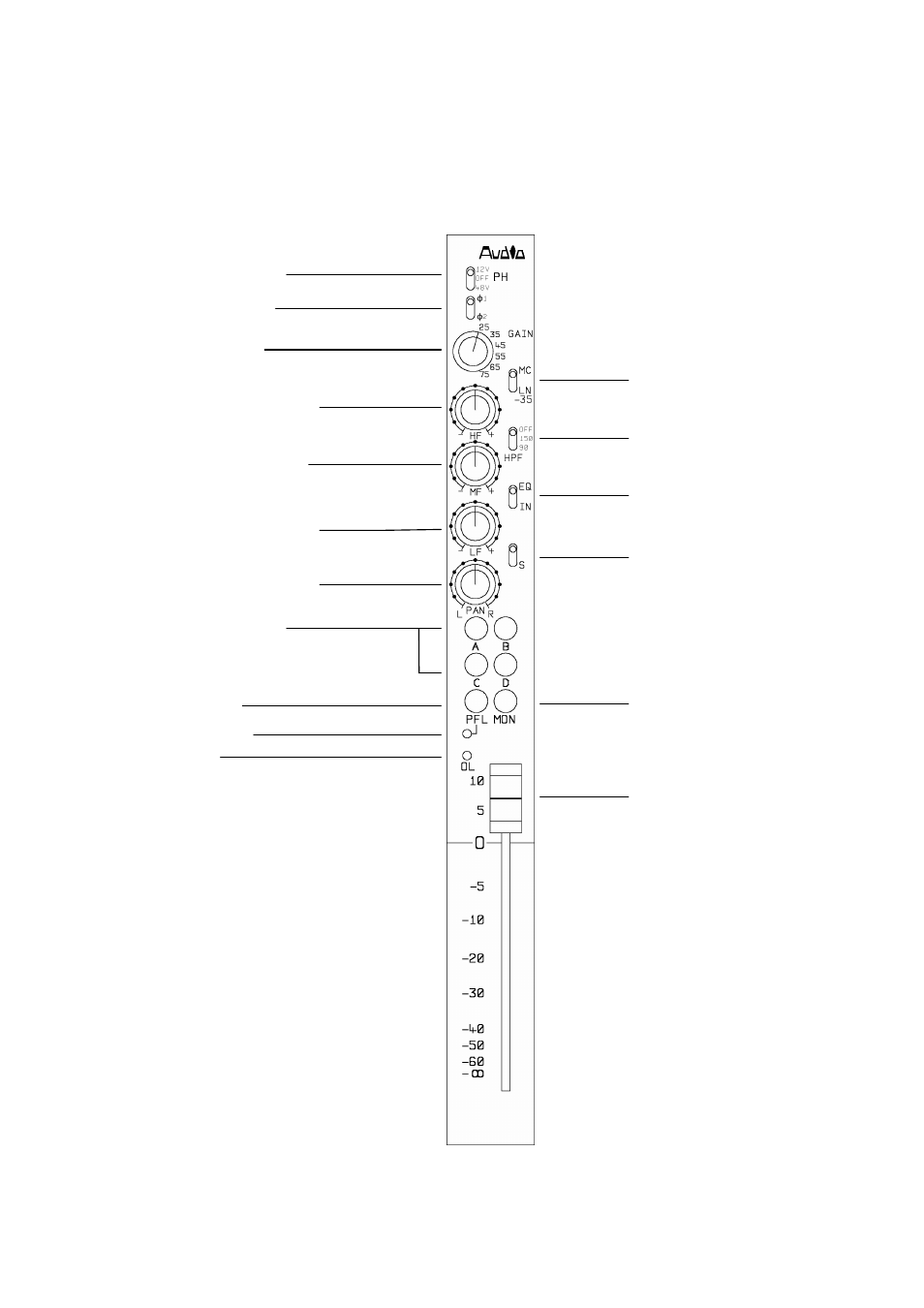

MICROPHONE/LINE MODULE
(1) Phantom-power toggle
(2) Phase-change toggle
(3) Input-gain selector
(4) High-frequency amplitude
control
(5) Mid-frequency amplitude
control
(6) Low-frequency amplitude
control
(7) Panoramic potentiometer
(8) Individual routeing to
A,B,C,D outputs
(9) Pre-fader listen
(10) PFL indicator LED
(11) Overload LED
(12) Line-input toggle
(13) High-pass filter
(14) EQ selector
(15) Matrix selector
(16) Routeing to monitor 1
(17) Channel fader
