13

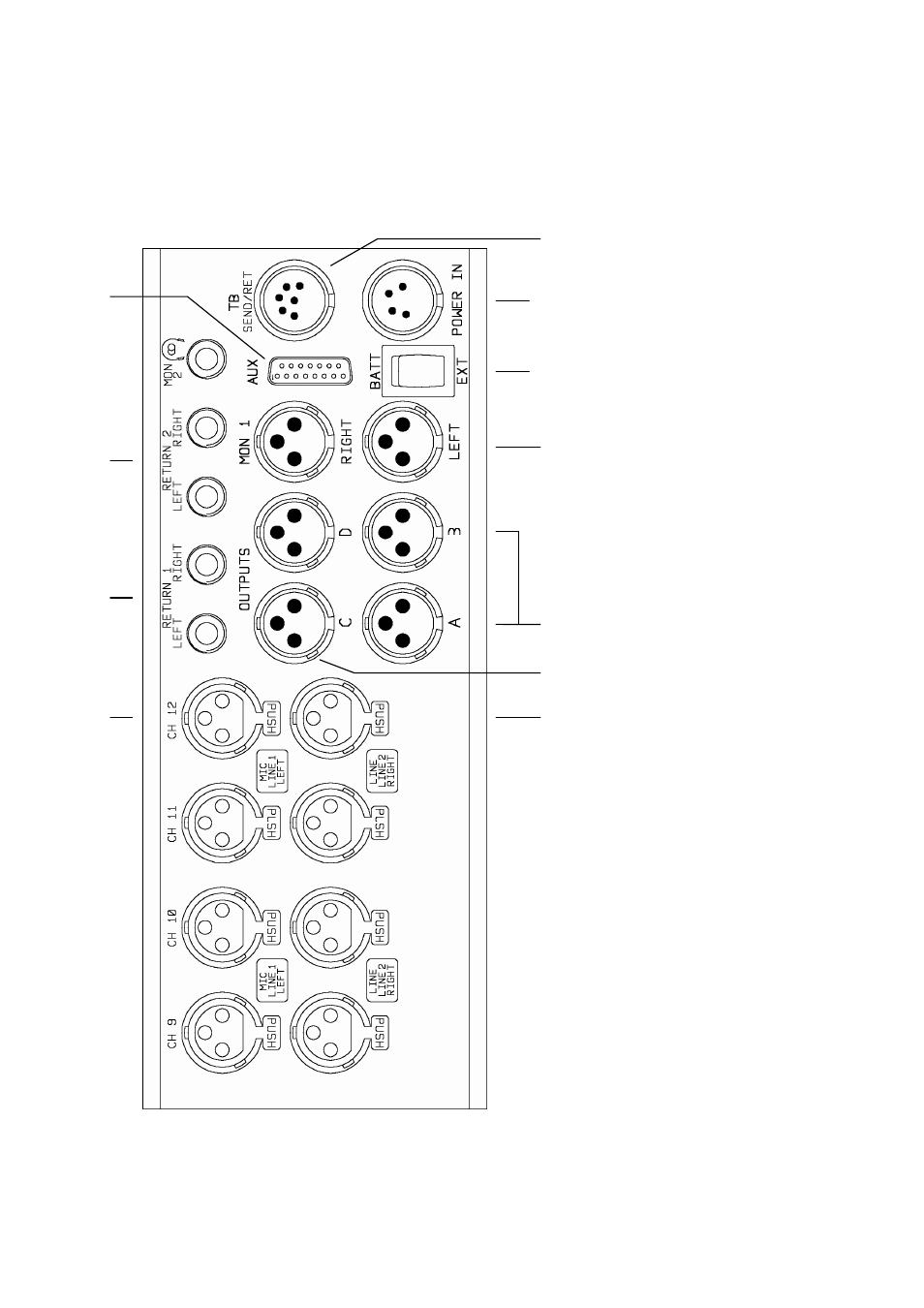

CONNECTOR PANEL
(1) Microphone input
or Line 1 of mono input
or Left of stereo input
(2) Line input
or Line 2 of mono input
or Right of stereo input
(3) Main A-B outputs
(4) Main C-D outputs
(5) Monitor 1 Left-Right outputs
(6) Return 1 Left-Right jack sockets
(7) Return 2 Left-Right jack sockets
(8) Monitor 2 output jack socket
(9) Talk send & return
(10) Subsidiary connector
(11) External DC power input
(12) Off/On switch (external & internal)

(2)
(5)
(6)
(1)
(3)
(4)
(5)
(12)
(11)
(9)
(10)
