Ninja-2 Main Unit
Light Weight 370g / 13oz (without batteries & HDD)
670g / 23.5oz (with batteries & HDD)
Dimensions
(without batteries)
115(W)x87(H)x41(D)mm
Construction Aircraft grade aluminium for durability + portability. Fanless for silent operation.
Operating Power 3.0W (Monitoring Only) / 6.0W (Rec, Mon & Play)
Batteries
7.2V-14.4V Battery System Compatible
any source
NP Series
D-Tap
and supporting accessories
All 7.4v
1. 2600mAh - Up to 10hrs
2. 5200mAh - Up to 20hrs
3. 7800mAh - Up to 30hrs
4. AC Adaptor (included)
5. D-Tap Adaptor (sold separately)
Continuous Power* Primary-Secondary battery system.
Change batteries without losing power.
Loop batteries continuously. * Patent Pending
Touchscreen Size: 4.3” diagonal. Resolution: 800x480.
Aspect Ratio: 16:9 native / 4:3 Letterbox. SMPTE Colour Specification
Native Frame Rate Playback (48-60Hz)
Video Input
Uncompressed 10/8-bit 4:2:2
Simultaneously displayed on internal
4.3” Ninja-2 screen
HDMI x 1
HD-SDI/SD-SDI
(with optional Connect SDI > HDMI converter)
HDMI 1.4
Video Out Reclocked, ultra low jitter professional grade HDMI output, “HDMI 1.4”
Supported Formats (In/Out) HD 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25,
1080p24, 1080p23.98, 1080p30(60i), 1080p25(50i),
1080p24(60i), 1080p23.98(60i), 720p60, 720p59.94,
20p50, SD 486i59.94, 576i50
pSF - Progressive Segmented Frame modes are recorded to Progressive rates
Most HDMI cameras output 24P, 25P and 30P as 50i or 60i
see www.atomos.com/support
Realtime Hardware Encoding
1920x1080 8/10-bit 4:2:2 to:
HQ - 220Mbps
422 - 150Mbps
LT - 100Mbps
Avid DNxHD-220X - 220Mbps (10-bit)
Avid DNxHD-220 - 36 Mbps (8-bit)
Avid DNxHD-145 - 36 Mbps (8-bit)
Avid DNxHD-60 - 60 Mbps (proxy)
Audio input HDMI 2 channel + 2 analog channels with gain controls.
Audio Output HDMI 2 channel
Analog line and Headphone
Timecode Sony and Canon compatible HDMI timecode in and out
Recording Time Edit Formats
(I-Frame Only, 422, 8/10-bit)
HDD or SSD
HDD & SSDs are hot swappable
on the fly in the field
250GB 500GB 1 TB
ProRes ® HQ (10-bit, 220Mbps)
Avid DNxHD-220x (10 bit, 220Mbps)
ProRes ® 422 (10 bit, 150Mbps)
Avid DNxHD-145 (8 bit, 145Mbps)
ProRes ® LT (10 bit, 100Mbps)
Avid DNxHD-36 (36Mbps)
SD not supported by Avid DNxHD
2.5 hrs
2.5 hrs
4 hrs
4 hrs
5.5 hrs
15hrs
5hrs
5hrs
8hrs
8hrs
11hrs
30hrs
10hrs
10hrs
16hrs
16hrs
22hrs
61hrs
Master Caddy & Accessories
Master Caddy Case
for HDD or SSD
2.5” SSD or HDD
minimum 5400rpm to 10,000rpm
Standard 9.5mm height
75x105x12mm
For recommended drives visit: www.atomos.com
Master Caddy Dock 2.5” internal drive SATA to USB2.0/3.0
Supported Applications FCPX/FCP7+ / Media Composer 5.0+ / Premiere 5.51 or above /
EDIUS 6.0+ / Vegas Pro 10+ / Lightworks
Accessories included • Universal Battery Charger 110-240V
• Docking station and Leads • 2 x Master Caddy Cases
• 1 x Atomos 2600mAh battery
Optional extras • 5 x Master Caddy Cases
• Carry Case
• Replacement Foam
• Connect H2S converter
• Connect S2H converter
Construction note:
Your Ninja-2 is designed to operate in ambient temperatures up to
40°C/105°F. It features a fanless design which dissipates internal heat
through the aluminium chassis.
If you wish to extend the temperature of operation in high temperature
conditions, you can choose an SSD drive, and set the TFT brightness to
a minimum.
The top and bottom aluminium surfaces next to the tripod screws
are the heat sinks. Under warm or extended operating conditions, these
surfaces may get hot to the touch. This is normal part of the design, and
shows that your Ninja-2 is dissipating heat successfully.
Do not be alarmed if the top and bottom surfaces seem hot to touch.
This is normal part of the design, and shows that your Ninja-2 is
dissipating heat successfully.
SSD/HDD usage:
With spinning drives, you need to be careful in handling when recording.
The drives will generally stand light/medium occasional bumps without
problems, and the Ninja-2 has an anti-shock buffer. However, spinning
drives are not suitable for use in high vibration or movement environments,
for example if the Ninja-2 is strapped to the side of a motor bike.
With spinning hard drives, use a new drive, or one that has very little usage.
Do not use old drives. Do not use drives that have been dropped.
On all drives, when handling, keep fingers away from the SATA connector
at all times, as static electricity can damage the electronics inside.

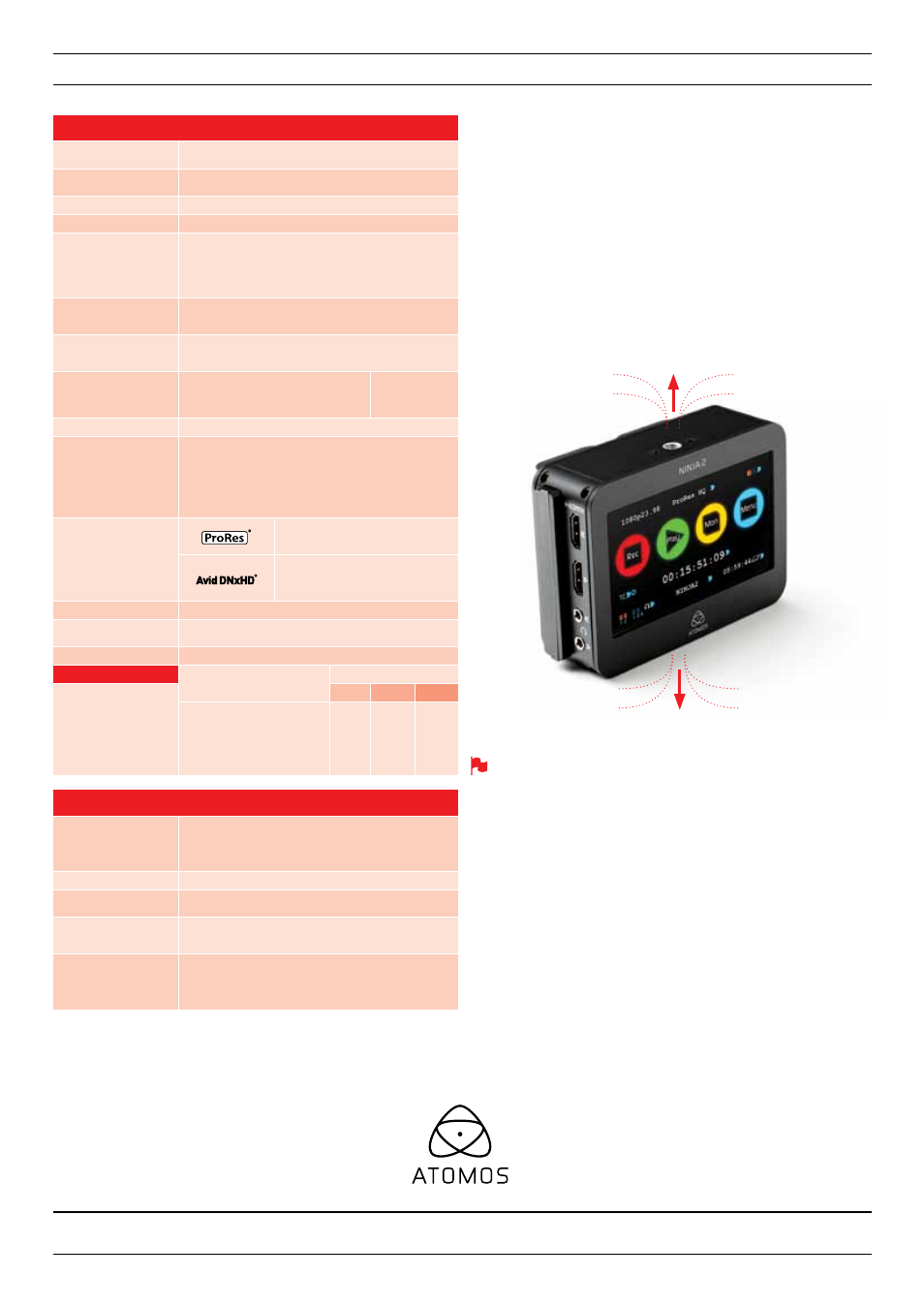

16. Ninja-2 Technical Specifications
Heat sink
Heat sink
