13. Using Ninja-2 with external power supplies
14. Using Ninja-2 with Atomos Connect Converters

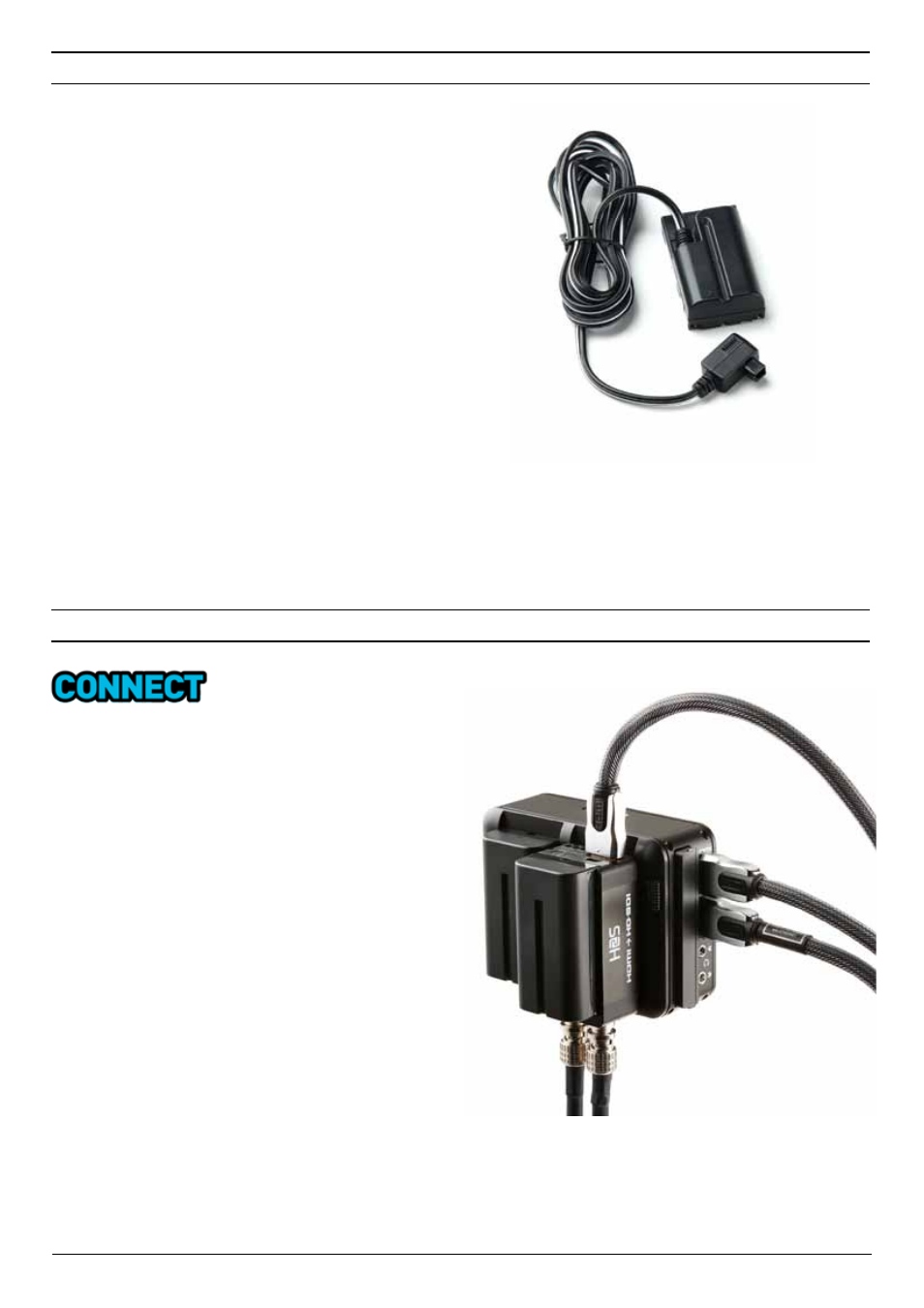

AC Adaptor (included)
This connects on the battery slot on the back of the Ninja-2. Please
ensure it is connected to slot 1. The end of the adaptor will connect to a
mains plug.
Alternatively you can use any NP-Compatible Charger or power supply,
as long as they use a “Dummy Battery”.
D-Tap Adaptor (not included)
This adaptor allows you to take the power supply from any source that
has a D-Tap connection such as V-Lock
The D-Tap also connects to the battery slot of the Ninja-2, please ensure it
is in slot 1. There will be a D-Tap to D-Tap cable. Voltages up to 20.0V.
You can think of Atomos Connect Converters as stand-alone devices
or as specially designed modules to give the Ninja-2 additional
capabilities. With them you can:
• Add an HD-SDI input to the Ninja-2 for connection to
non-HDMI devices using Connect S2H
• Add an HD-SDI output to the Ninja-2 for playout to
HD-SDI monitors using Connect H2S
There is nothing to set up when you use a Connect Converter. Just
secure the device in a battery slot (in Slot 1 if you only have a single
battery) and place the battery that previously occupied that slot in the
battery slot on the converter.
