Page 49
Io XT/4K v10.5r2
www.aja.com
49
Input Configuration:
To configure the bi-directional SDI connectors for input, select Pass-through in the
Default Output>Video Output menu (see
).

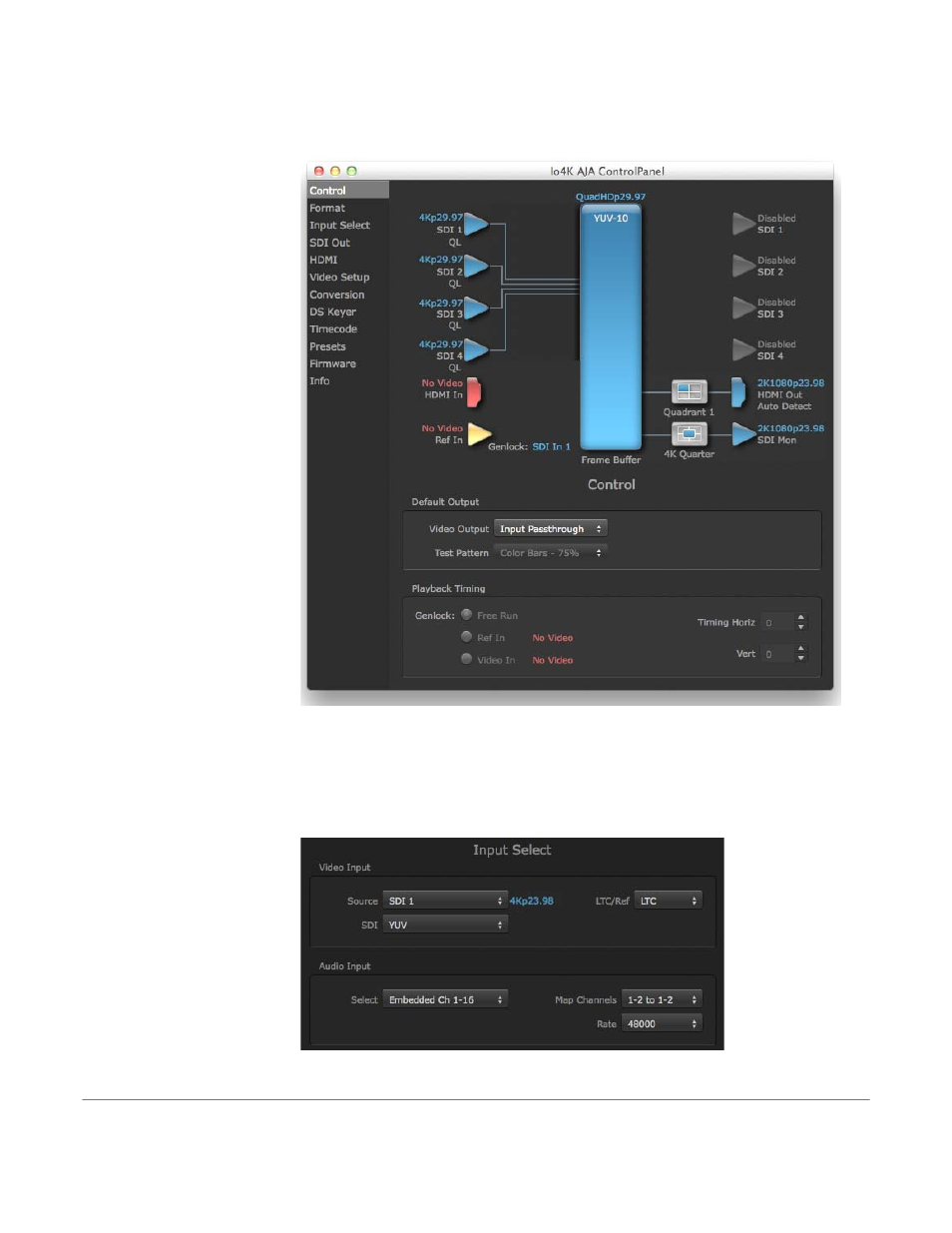

Figure 47. Io 4K SDI Input Configuration
Input Select Screen
in 4K Mode
In 4K mode, on the Input Select Menu, the Source selection menu is not applicable. You
can, however, still set input video format options (YUV, RGB, etc.) and set the LTC input
usage and Audio Input settings. (Refer to
“Input Select Screen” on page 33
).
Figure 48. Input Select menus.
