Connecting to your Computer
1. With your computer off, connect a Thunderbolt cable between the computer and
the Io XT/4K.
2. Power the unit (AC supply or battery) and if it is Io XT, turn it on using the power
button on the front. Io 4K does not have a power button.
3. Cable the system audio and video sources, VTR, audio monitor, and video monitor.
4. When you run the AJA Control Panel, you’ll notice that the Io XT/4K is auto-
discovered as long as it is properly cabled and powered up.
"Chapter 3: Operation on page 22"
. (The latest version of the manual can
be downloaded from the AJA support page provided above.)
Cable Connections
Io XT and Io 4K connections are made directly to the unit’s rear connector plate. Both
have a Tascam-style DB25 connector providing 8 audio output channels.

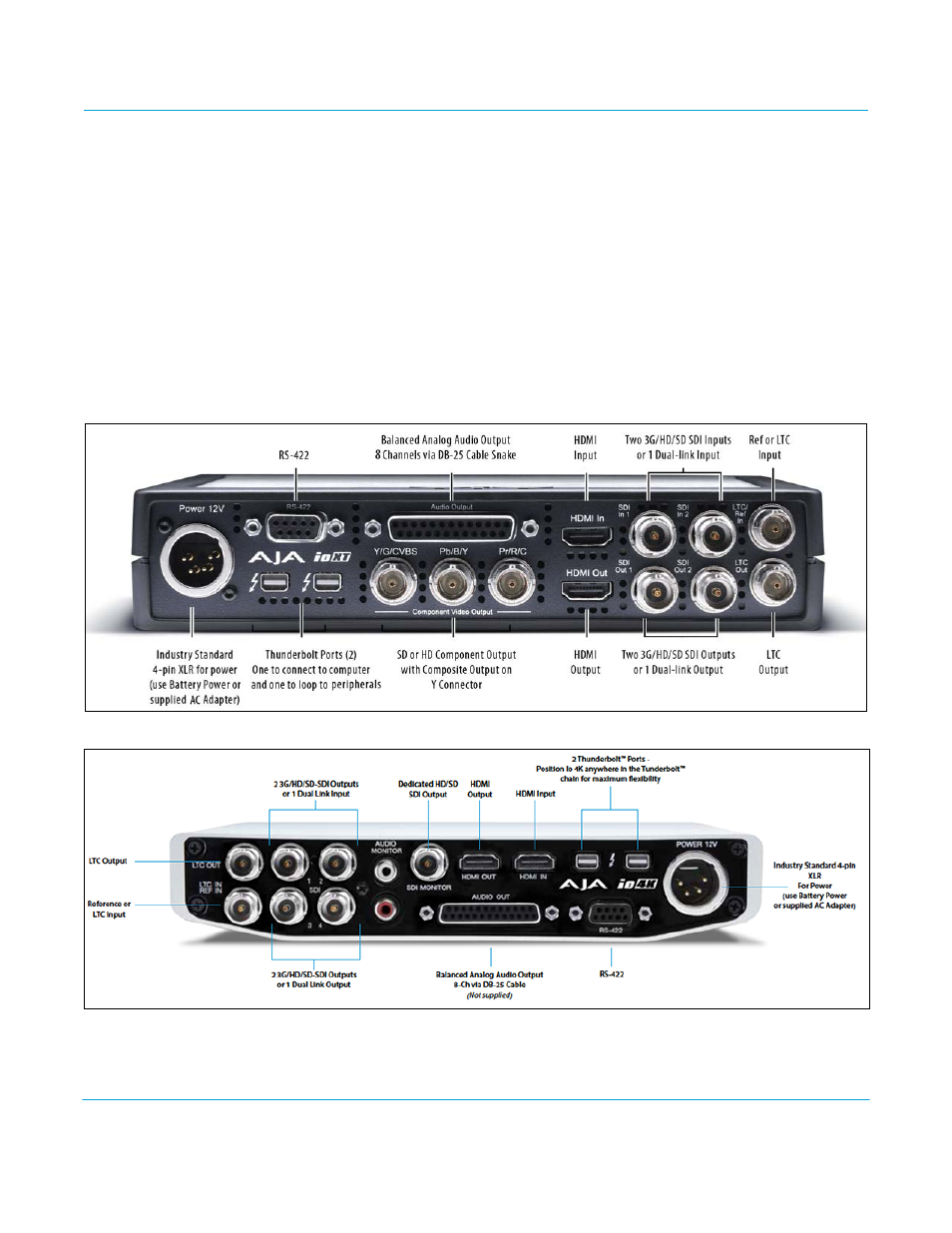

Figure 2. Io XT Connectors
Figure 3. Io 4K Connectors
