Analog Out Screen
(Io XT Only)
Io XT provides a high-quality analog component or composite + Y/C output, generally
used for monitoring. This screen shows the current settings for that analog output, and
allows you to re-configure it when desired.

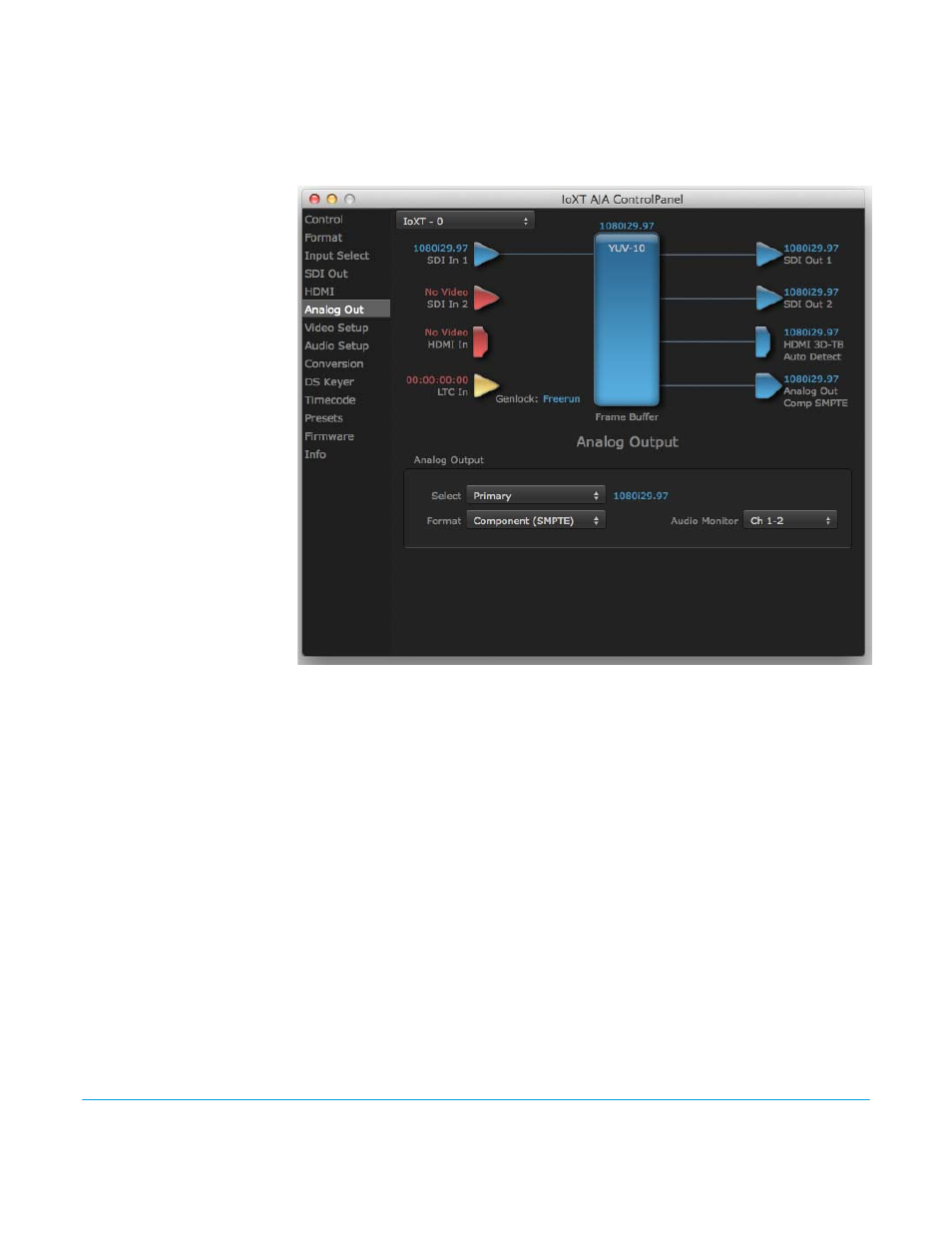

Figure 33. AJA Control Panel, Analog Out Screen
Analog Out Screen
Settings
Analog Output:
Select Primary or Secondary (any conversion applied) for the analog output; if a
conversion is applied, you’ll see the conversion icon appear on the block diagram. Next,
select the video format from the Format pulldown.
Analog formats can be:
Composite +Y/C (one composite output and a simultaneous Y/C [S-Video] output)
Component (SMPTE/EBU N10)
Component (Beta)
Component (RGB)
Audio Monitor:
Here you select which two channels will be mapped to the analog audio stereo output
(headphone jack).
