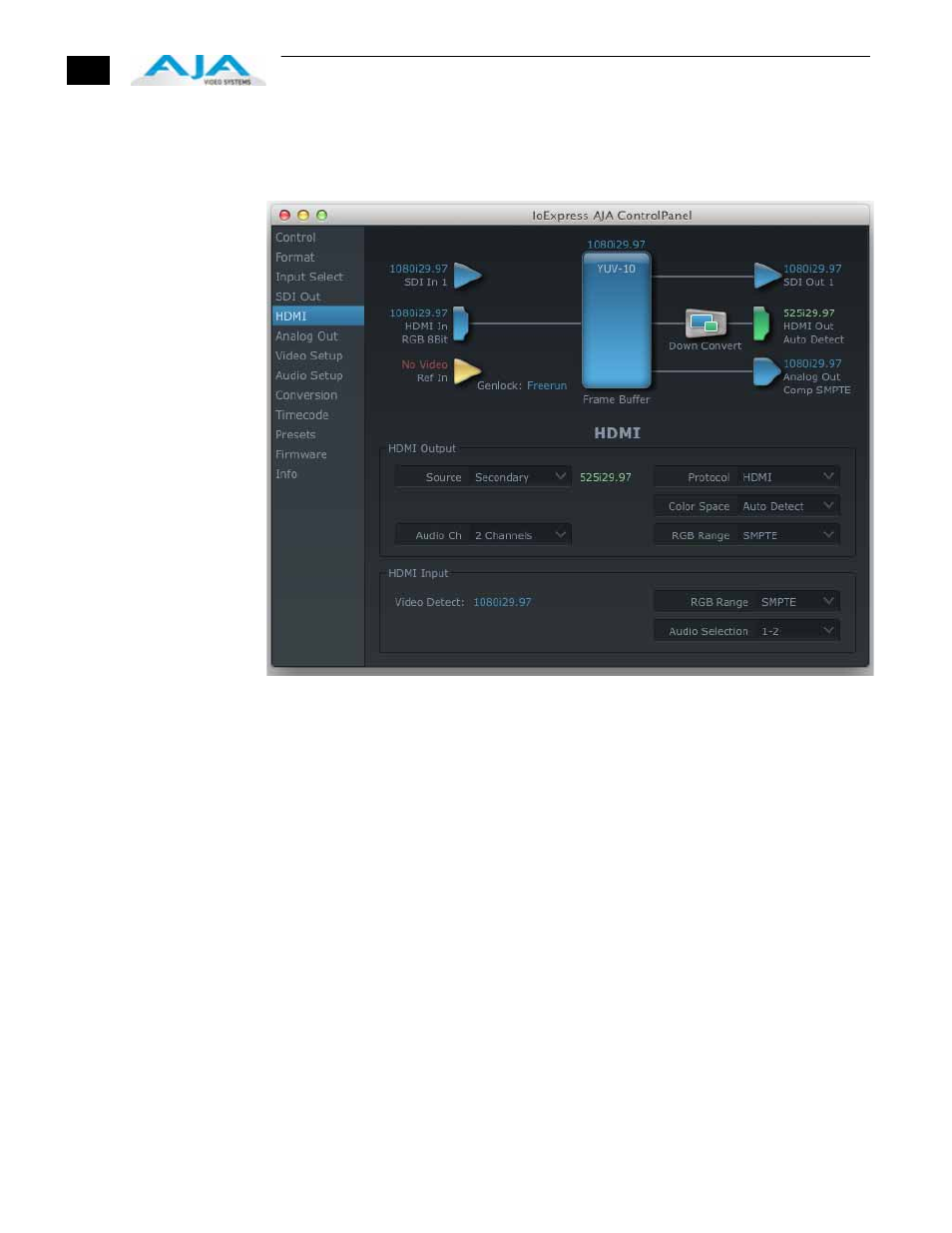

HDMI Screen The Io Express’s HDMI input and output are shown and configured at this screen. The HDMI
input pane shows if an HDMI input source has been detected and locked on, showing the
format found.
HDMI Screen
HDMI Screen Settings
HDMI Output—Pulldowns are provided for configuring the video output range, color space
and number of embedded audio channels (2 or the maximum 8) for the HDMI output. A
Protocol pulldown allows you to choose either “HDMI” or “DVI” protocol—use DVI if
you’re outputting to a DVI monitor using an HDMI to DVI adapter.
HDMI Input—while there are two different ranges of colorspace values that SDI can use (RGB
and YCbCr) the HDMI input on the Io Express defaults to the SMPTE video input range. A
pulldown allows you to select full range.
