24

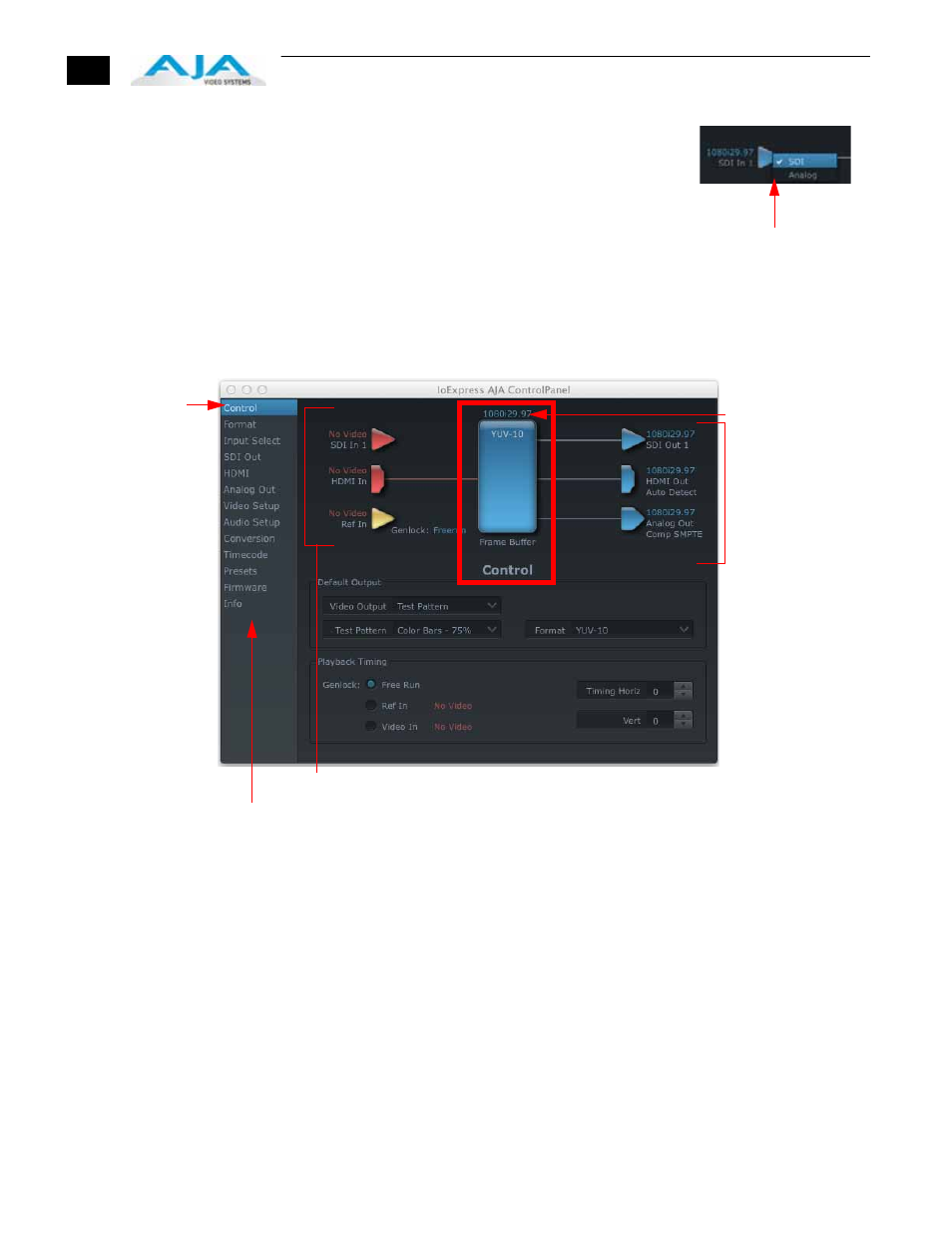

Block Diagram Screen—The top area of the AJA Control Panel

shows a visual picture representing the processing (if any)
that’s currently occurring, including inputs/outputs,
reference source, and system status. Lines between inputs,
the framebuffer, and outputs, show a video path. Where
there are no lines, it shows there is no connection; this can be
because an input or output isn’t selected. The lines will also
show whether the outputs are video or video + key.

Icon objects on the block diagram screen (input/output
icons, frame buffer, etc.—also called “widgets”—indicate
their status by color (explained later) and can be clicked for context-sensitive
information and choices. (These same choices can also be made from the AJA Control
Panel screens.)

AJA Control Panel, Block Diagram

Control-Clicking

an Icon Produces
a Context-sensitive
Menu

Inputs

Outputs:
SDI, HDMI
and Analog

Screen Topic Links – Click One to Edit/View a Topic

Framebuffer
Format
(Primary Format)

Currently selected

Screen
